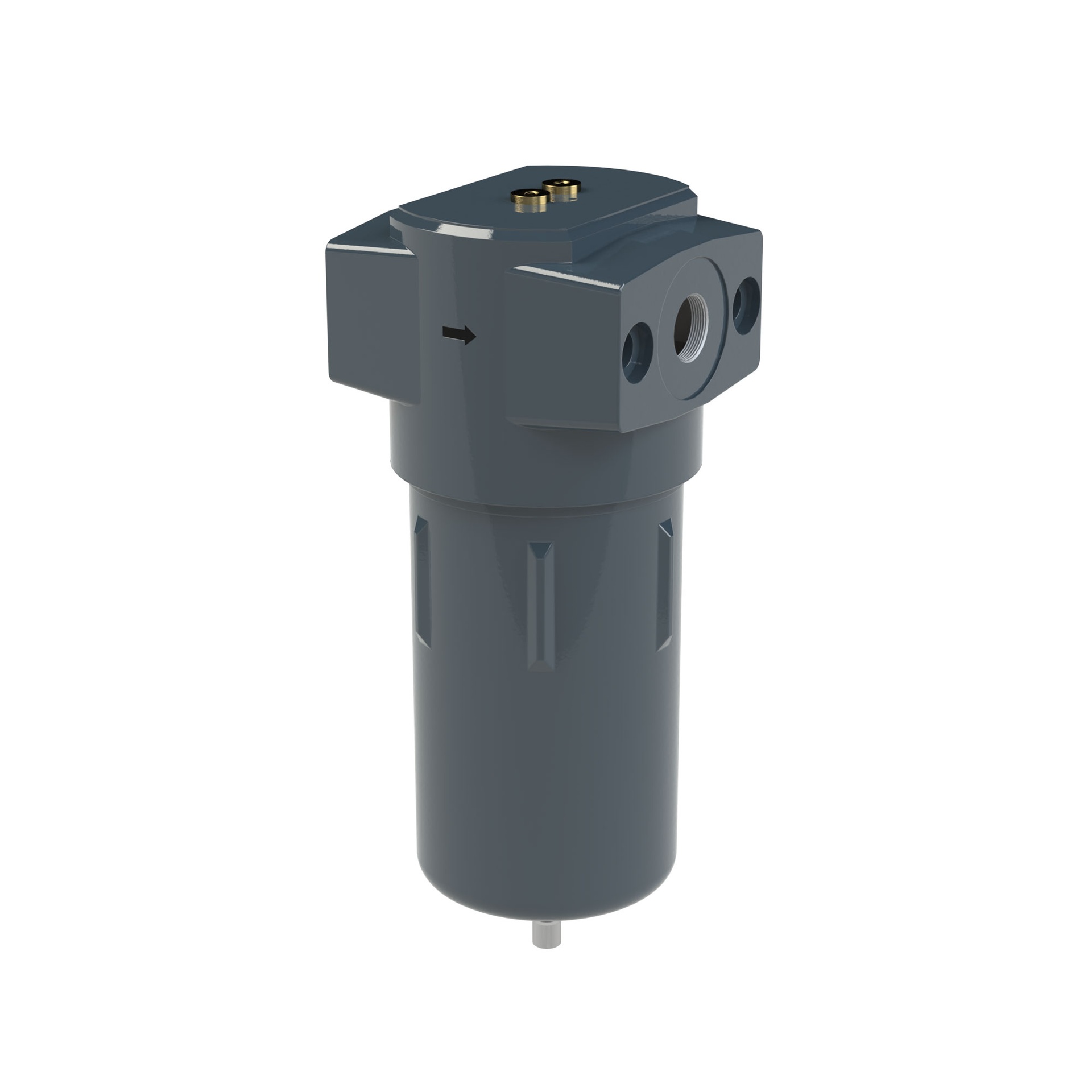

RIEGLER pre-filter without differential pressure gauge, 1 µm, G 1/4
Typennummer: FSPV.G14.OM
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Vorfilter ohne Differenzdruckmanometer, 1 µm, G1/4, Eingangsdruck 4 - 16 bar, Temperaturbereich 1,5 °C bis 80 °C
| Efficiency | 999.99 |
| Display range of the | 1 bar |
| Execution | without differential pressure gauge |
| Flow_1 | 830 l/min |
| Steam trap | automatic drain valve |
| D | 202 mm |
| A | 87 mm |
| Filter element | Cellulose |
| Temperature range min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Particle separation | 1 µm |
| Filter fineness | 1 µm |
| Display range of the | 0 bar |
| Inlet pressure max. | 16 bar |
| C | 21 mm |
| Inlet pressure min. | 4 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Temperature range max. | 80 °C |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Thread | G 1/4 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146929] RIEGLER pre-filter with differential pressure gauge, 1 µm, G 1](/web/image/product.template/284014/image_128/%5B146929%5D%20RIEGLER%20pre-filter%20with%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%201?unique=221c6c9)
|
Typennummer: FSPV.G1 |
482.12 € | |
![[146930] RIEGLER pre-filter with differential pressure gauge, 1 µm, G 1 1/2](/web/image/product.template/284015/image_128/%5B146930%5D%20RIEGLER%20pre-filter%20with%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%201%201-2?unique=1cc0099)
|
Typennummer: FSPV.G112 |
583.23 € | |
![[146927] RIEGLER pre-filter with differential pressure gauge, 1 µm, G 1/2](/web/image/product.template/284012/image_128/%5B146927%5D%20RIEGLER%20pre-filter%20with%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%201-2?unique=fbf9742)
|
Typennummer: FSPV.G12 |
358.13 € | |
![[146925] RIEGLER pre-filter with differential pressure gauge, 1 µm, G 1/4](/web/image/product.template/284010/image_128/%5B146925%5D%20RIEGLER%20pre-filter%20with%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%201-4?unique=13e131c)
|
Typennummer: FSPV.G14 |
358.13 € | |
![[146931] RIEGLER pre-filter with differential pressure gauge, 1 µm, G 2](/web/image/product.template/284016/image_128/%5B146931%5D%20RIEGLER%20pre-filter%20with%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%202?unique=e6691ac)
|
Typennummer: FSPV.G2 |
781.24 € | |
![[146928] RIEGLER pre-filter with differential pressure gauge, 1 µm, G 3/4](/web/image/product.template/284013/image_128/%5B146928%5D%20RIEGLER%20pre-filter%20with%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%203-4?unique=af2ca7c)
|
Typennummer: FSPV.G34 |
427.96 € | |
![[146926] RIEGLER pre-filter with differential pressure gauge, 1 µm, G 3/8](/web/image/product.template/284011/image_128/%5B146926%5D%20RIEGLER%20pre-filter%20with%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%203-8?unique=87d7c98)
|
Typennummer: FSPV.G38 |
358.13 € | |
![[146936] RIEGLER pre-filter without differential pressure gauge, 1 µm, G 1](/web/image/product.template/284021/image_128/%5B146936%5D%20RIEGLER%20pre-filter%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%201?unique=19f0a95)
|
Typennummer: FSPV.G1.OM |
394.51 € | |
![[146937] RIEGLER pre-filter without differential pressure gauge, 1 µm, G 1 1/2](/web/image/product.template/284022/image_128/%5B146937%5D%20RIEGLER%20pre-filter%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%201%201-2?unique=73d70f5)
|
Typennummer: FSPV.G112.OM |
504.81 € | |
![[146934] RIEGLER pre-filter without differential pressure gauge, 1 µm, G 1/2](/web/image/product.template/284019/image_128/%5B146934%5D%20RIEGLER%20pre-filter%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%201-2?unique=1134119)
|
Typennummer: FSPV.G12.OM |
250.76 € | |
![[146938] RIEGLER pre-filter without differential pressure gauge, 1 µm, G 2](/web/image/product.template/284023/image_128/%5B146938%5D%20RIEGLER%20pre-filter%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%202?unique=c78da3d)
|
Typennummer: FSPV.G2.OM |
728.03 € | |
![[146935] RIEGLER pre-filter without differential pressure gauge, 1 µm, G 3/4](/web/image/product.template/284020/image_128/%5B146935%5D%20RIEGLER%20pre-filter%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%203-4?unique=2909255)
|
Typennummer: FSPV.G34.OM |
314.72 € | |
![[146933] RIEGLER pre-filter without differential pressure gauge, 1 µm, G 3/8](/web/image/product.template/284018/image_128/%5B146933%5D%20RIEGLER%20pre-filter%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m%2C%20G%203-8?unique=898f739)
|
Typennummer: FSPV.G38.OM |
250.76 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[146967] RIEGLER differential pressure gauge, 0 - 1 bar](/web/image/product.template/284052/image_128/%5B146967%5D%20RIEGLER%20differential%20pressure%20gauge%2C%200%20-%201%20bar?unique=679f604)
|
Typennummer: FSPDM.0-1B |
54.00 € | |
![[147701] RIEGLER connection set for 2 filters, G 1/4 to G 1/2](/web/image/product.template/284399/image_128/%5B147701%5D%20RIEGLER%20connection%20set%20for%202%20filters%2C%20G%201-4%20to%20G%201-2?unique=416d9f1)
|
Typennummer: VBSFSP.2.G14-G12 |
36.95 € | |
![[147703] RIEGLER connection set for 3 filters, G 1/4 to G 1/2](/web/image/product.template/284401/image_128/%5B147703%5D%20RIEGLER%20connection%20set%20for%203%20filters%2C%20G%201-4%20to%20G%201-2?unique=402501f)
|
Typennummer: VBSFSP.3.G14-G12 |
57.22 € | |
![[147705] RIEGLER wall mounting set for 1 filter, G 1/4 to G 1/2](/web/image/product.template/284403/image_128/%5B147705%5D%20RIEGLER%20wall%20mounting%20set%20for%201%20filter%2C%20G%201-4%20to%20G%201-2?unique=f8212eb)
|
Typennummer: WMSFSP.G14-G12 |
38.59 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[147707] RIEGLER Automatic drain valve, pre-filter, microfilter, G 1/4 - G 1 1/2](/web/image/product.template/284405/image_128/%5B147707%5D%20RIEGLER%20Automatic%20drain%20valve%2C%20pre-filter%2C%20microfilter%2C%20G%201-4%20-%20G%201%201-2?unique=59feeb8)
|
Typennummer: AAFSPVM.G14-G112 |
58.04 € | |

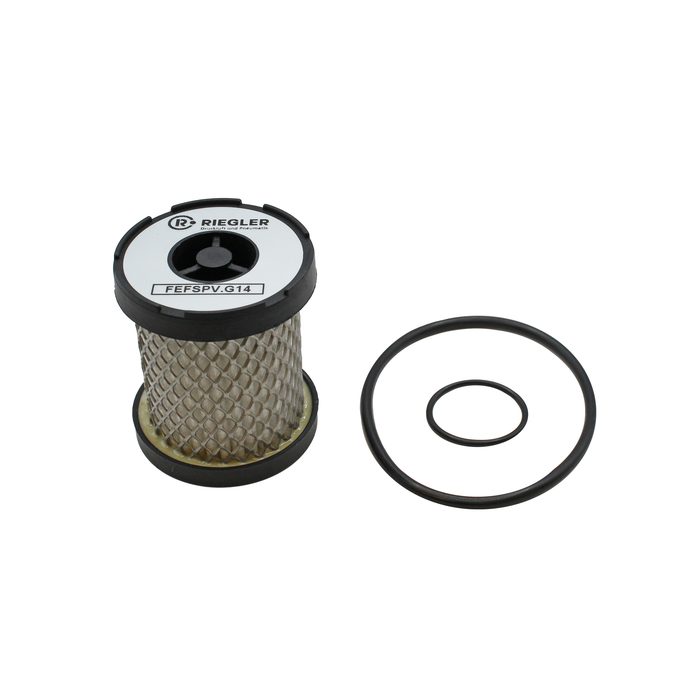

![[147711] RIEGLER filter element for pre-filter, 0.1 µm, G 1/4](/web/image/product.template/284409/image_128/%5B147711%5D%20RIEGLER%20filter%20element%20for%20pre-filter%2C%200.1%20%C2%B5m%2C%20G%201-4?unique=9046fd5)
|
