RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.5 - 16 bar
Typennummer: DRK.G14.BG1.0,5-16B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Constant pressure regulator incl. pressure gauge, BG 1, G 1/4, PE max. 40 bar, medium temperature max. 60 °C, control range 0.5 - 16 bar
| fat used | Berulub OX 100 EP |
| D | 104 mm |
| Flow_1 | 1750 l/min |
| Control range max. | 16 bar |
| BG | 1 |
| DN | 8 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.5 bar |
| B | 134 mm |
| C | 30 mm |
| Inlet pressure max. | 40 bar |
| A | 54 mm |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 1/4 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[147478] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.1 - 3 bar](/web/image/product.template/284319/image_128/%5B147478%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%201-4%2C%200.1%20-%203%20bar?unique=99d0813)
|
Typennummer: DRK.G14.BG1.0,1-3B |
66.75 € | |
![[147479] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.2 - 6 bar](/web/image/product.template/284320/image_128/%5B147479%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%201-4%2C%200.2%20-%206%20bar?unique=34bbd58)
|
Typennummer: DRK.G14.BG1.0,2-6B |
66.75 € | |
![[147480] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/284321/image_128/%5B147480%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=26bb612)
|
Typennummer: DRK.G14.BG1.0,5-10B |
66.75 € | |

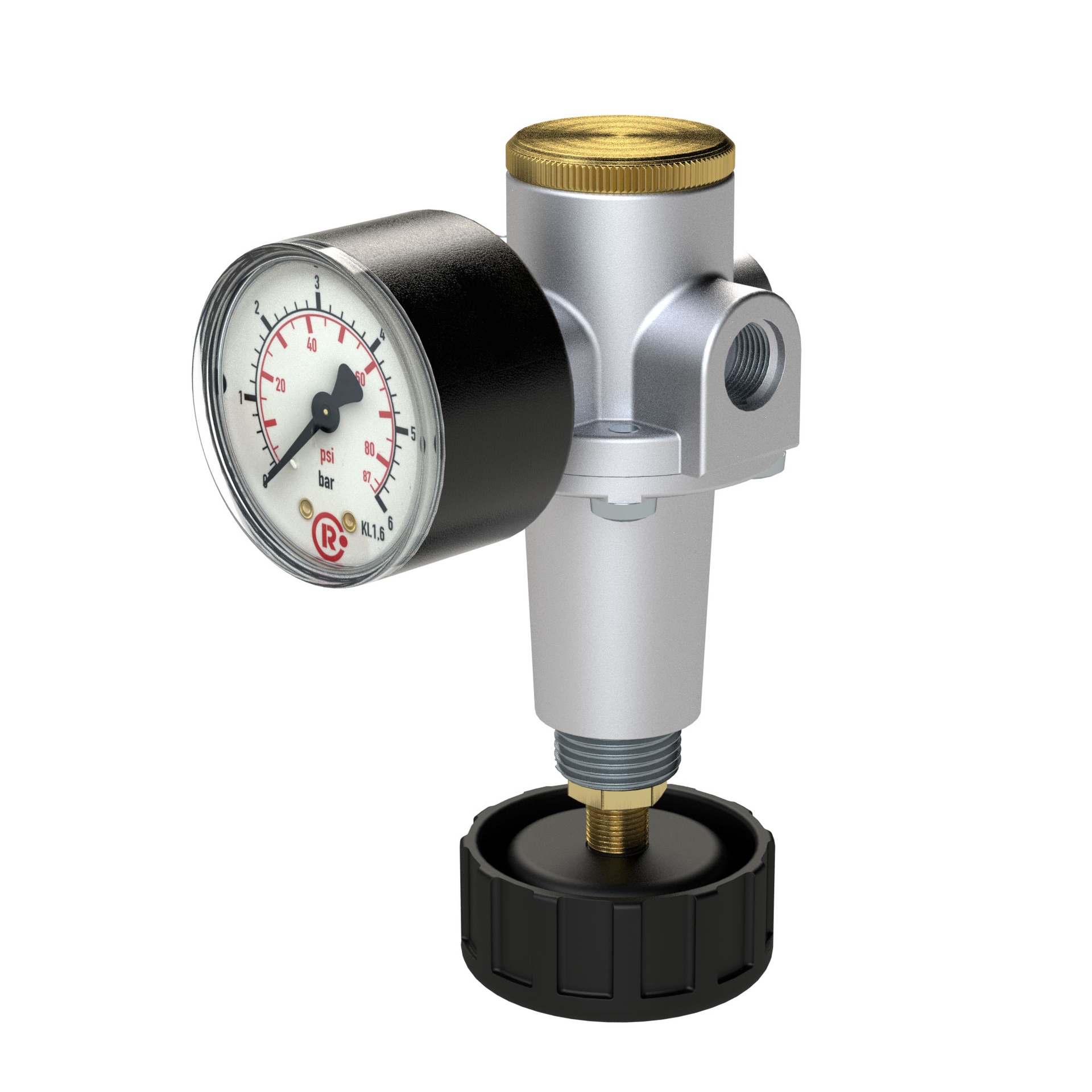

![[147483] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.1 - 3 bar](/web/image/product.template/284324/image_128/%5B147483%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.1%20-%203%20bar?unique=b31bf39)
|
Typennummer: DRK.G38.BG1.0,1-3B |
66.75 € | |
![[147484] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.2 - 6 bar](/web/image/product.template/284325/image_128/%5B147484%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.2%20-%206%20bar?unique=edfafa2)
|
Typennummer: DRK.G38.BG1.0,2-6B |
66.75 € | |
![[147485] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/284326/image_128/%5B147485%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=8785963)
|
Typennummer: DRK.G38.BG1.0,5-10B |
66.75 € | |
![[147486] RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/284327/image_128/%5B147486%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=7cd7c37)
|
Typennummer: DRK.G38.BG1.0,5-16B |
66.75 € | |
![[147493] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.1 - 3 bar](/web/image/product.template/284334/image_128/%5B147493%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=efce234)
|
Typennummer: DRK.G12.BG2.0,1-3B |
73.89 € | |
![[147494] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.2 - 6 bar](/web/image/product.template/284335/image_128/%5B147494%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.2%20-%206%20bar?unique=71de433)
|
Typennummer: DRK.G12.BG2.0,2-6B |
73.89 € | |
![[147495] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.5 - 10 bar](/web/image/product.template/284336/image_128/%5B147495%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=08629df)
|
Typennummer: DRK.G12.BG2.0,5-10B |
73.89 € | |
![[147496] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 1/2, 0.5 - 16 bar](/web/image/product.template/284337/image_128/%5B147496%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=f631ac1)
|
Typennummer: DRK.G12.BG2.0,5-16B |
73.89 € | |
![[147488] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.1 - 3 bar](/web/image/product.template/284329/image_128/%5B147488%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.1%20-%203%20bar?unique=77175a8)
|
Typennummer: DRK.G38.BG2.0,1-3B |
73.89 € | |

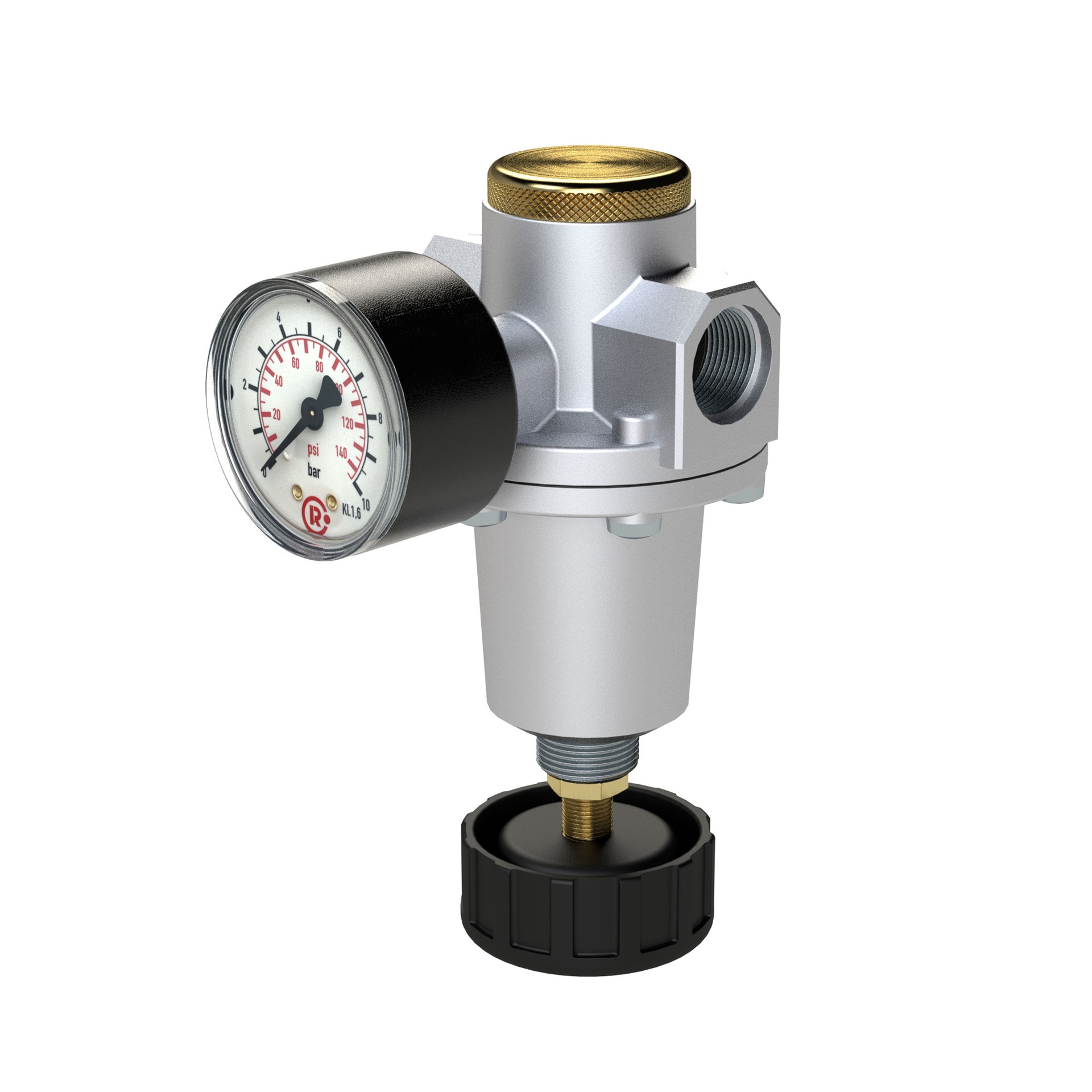

![[147489] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.2 - 6 bar](/web/image/product.template/284330/image_128/%5B147489%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.2%20-%206%20bar?unique=855d852)
|
Typennummer: DRK.G38.BG2.0,2-6B |
73.89 € | |
![[147490] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.5 - 10 bar](/web/image/product.template/284331/image_128/%5B147490%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=01a4904)
|
Typennummer: DRK.G38.BG2.0,5-10B |
73.89 € | |
![[147491] RIEGLER constant pressure regulator incl. pressure gauge, BG 2, G 3/8, 0.5 - 16 bar](/web/image/product.template/284332/image_128/%5B147491%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%202%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=b95f7a1)
|
Typennummer: DRK.G38.BG2.0,5-16B |
73.89 € | |

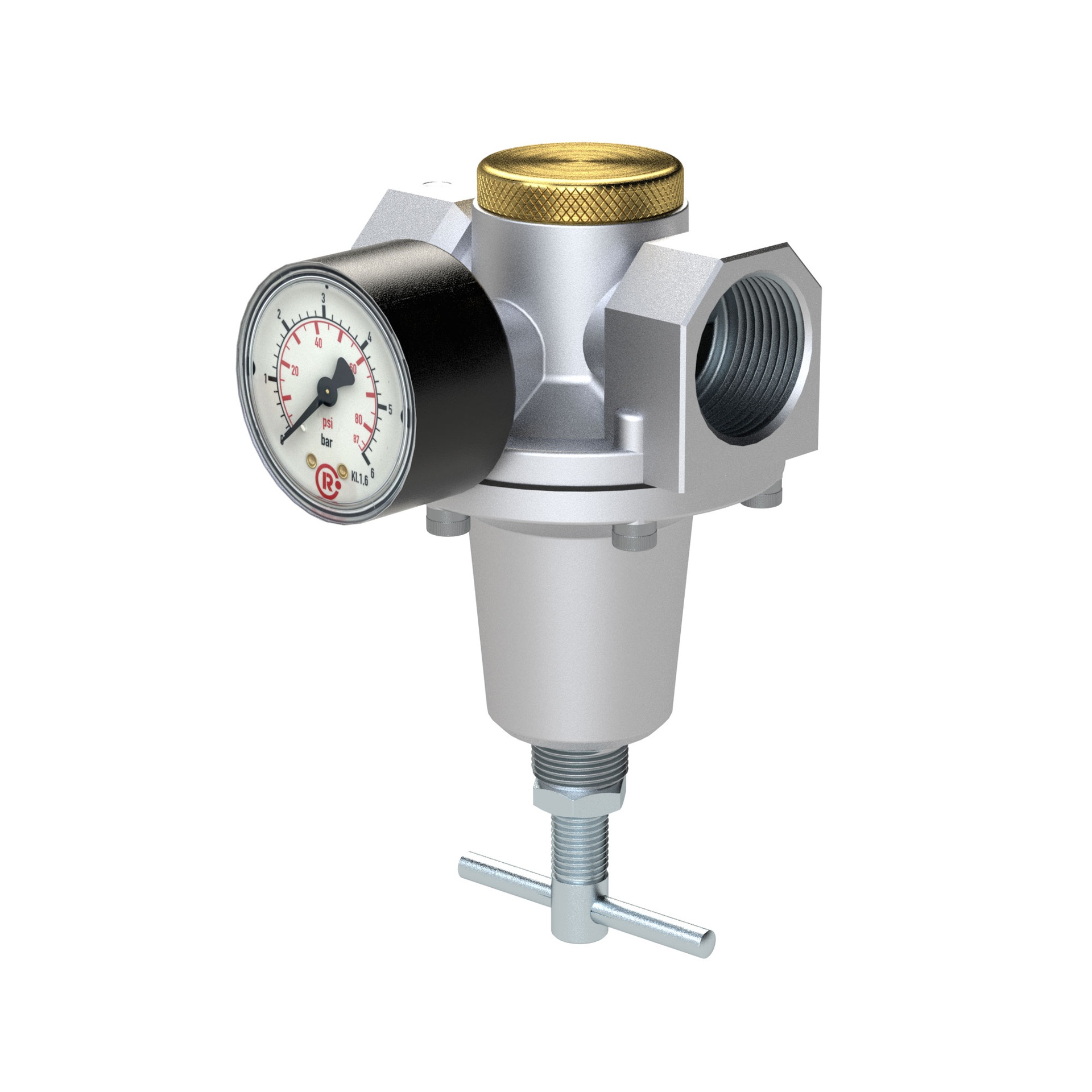

![[147508] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.1 - 3 bar](/web/image/product.template/284347/image_128/%5B147508%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.1%20-%203%20bar?unique=db49ac2)
|
Typennummer: DRK.G1.BG3.0,1-3B |
102.53 € | |
![[147509] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.2 - 6 bar](/web/image/product.template/284348/image_128/%5B147509%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.2%20-%206%20bar?unique=787a959)
|
Typennummer: DRK.G1.BG3.0,2-6B |
102.53 € | |
![[147510] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.5 - 10 bar](/web/image/product.template/284349/image_128/%5B147510%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.5%20-%2010%20bar?unique=ed30cff)
|
Typennummer: DRK.G1.BG3.0,5-10B |
102.53 € | |
![[147511] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1, 0.5 - 16 bar](/web/image/product.template/284350/image_128/%5B147511%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201%2C%200.5%20-%2016%20bar?unique=73b4075)
|
Typennummer: DRK.G1.BG3.0,5-16B |
102.53 € | |
![[147498] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.1 - 3 bar](/web/image/product.template/284339/image_128/%5B147498%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.1%20-%203%20bar?unique=9a7e188)
|
Typennummer: DRK.G12.BG3.0,1-3B |
86.35 € | |

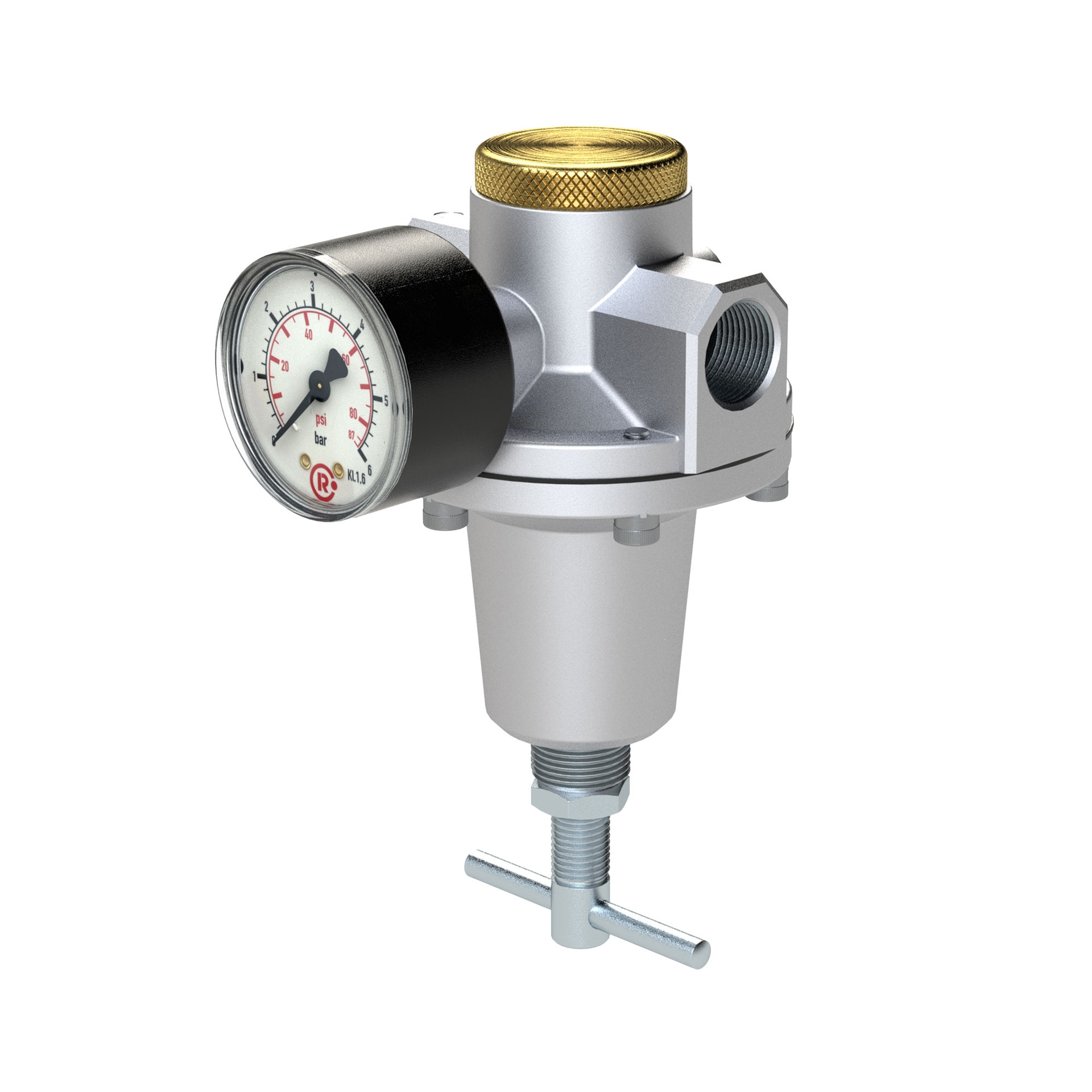

![[147499] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.2 - 6 bar](/web/image/product.template/284340/image_128/%5B147499%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.2%20-%206%20bar?unique=65dd2c9)
|
Typennummer: DRK.G12.BG3.0,2-6B |
86.35 € | |
![[147500] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.5 - 10 bar](/web/image/product.template/284341/image_128/%5B147500%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=fa46cd8)
|
Typennummer: DRK.G12.BG3.0,5-10B |
86.35 € | |
![[147501] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 1/2, 0.5 - 16 bar](/web/image/product.template/284342/image_128/%5B147501%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=82340c2)
|
Typennummer: DRK.G12.BG3.0,5-16B |
86.35 € | |
![[147503] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.1 - 3 bar](/web/image/product.template/284343/image_128/%5B147503%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.1%20-%203%20bar?unique=341576c)
|
Typennummer: DRK.G34.BG3.0,1-3B |
102.53 € | |
![[147504] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.2 - 6 bar](/web/image/product.template/284344/image_128/%5B147504%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.2%20-%206%20bar?unique=741ea93)
|
Typennummer: DRK.G34.BG3.0,2-6B |
102.53 € | |
![[147505] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.5 - 10 bar](/web/image/product.template/284345/image_128/%5B147505%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=121cba3)
|
Typennummer: DRK.G34.BG3.0,5-10B |
102.53 € | |

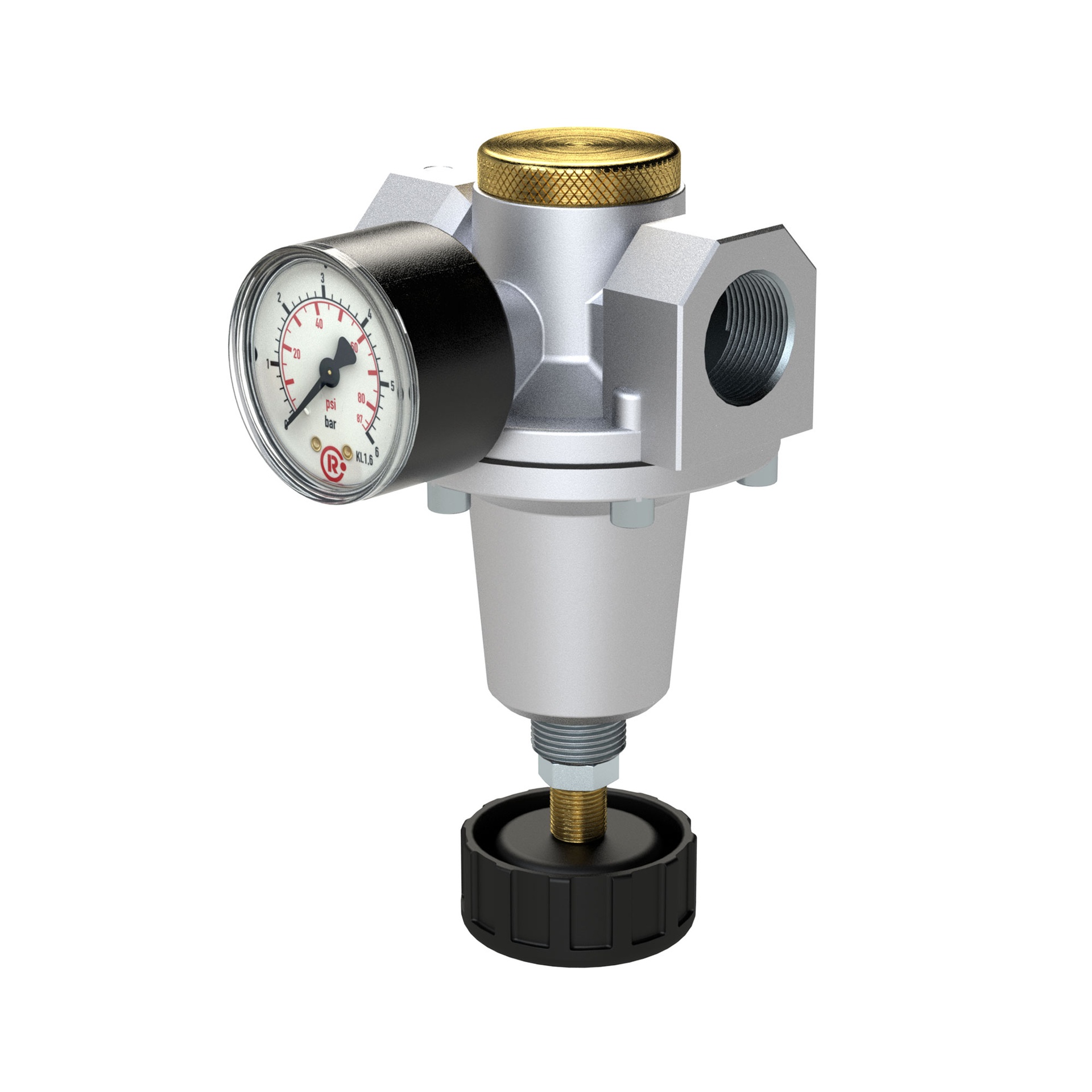

![[147506] RIEGLER constant pressure regulator incl. pressure gauge, BG 3, G 3/4, 0.5 - 16 bar](/web/image/product.template/284346/image_128/%5B147506%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%203%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=93d7141)
|
Typennummer: DRK.G34.BG3.0,5-16B |
102.53 € | |
![[147518] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 1, 0.1 - 3 bar](/web/image/product.template/284356/image_128/%5B147518%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%201%2C%200.1%20-%203%20bar?unique=d29aed6)
|
Typennummer: DRK.G1.BG4.0,1-3B |
203.19 € | |

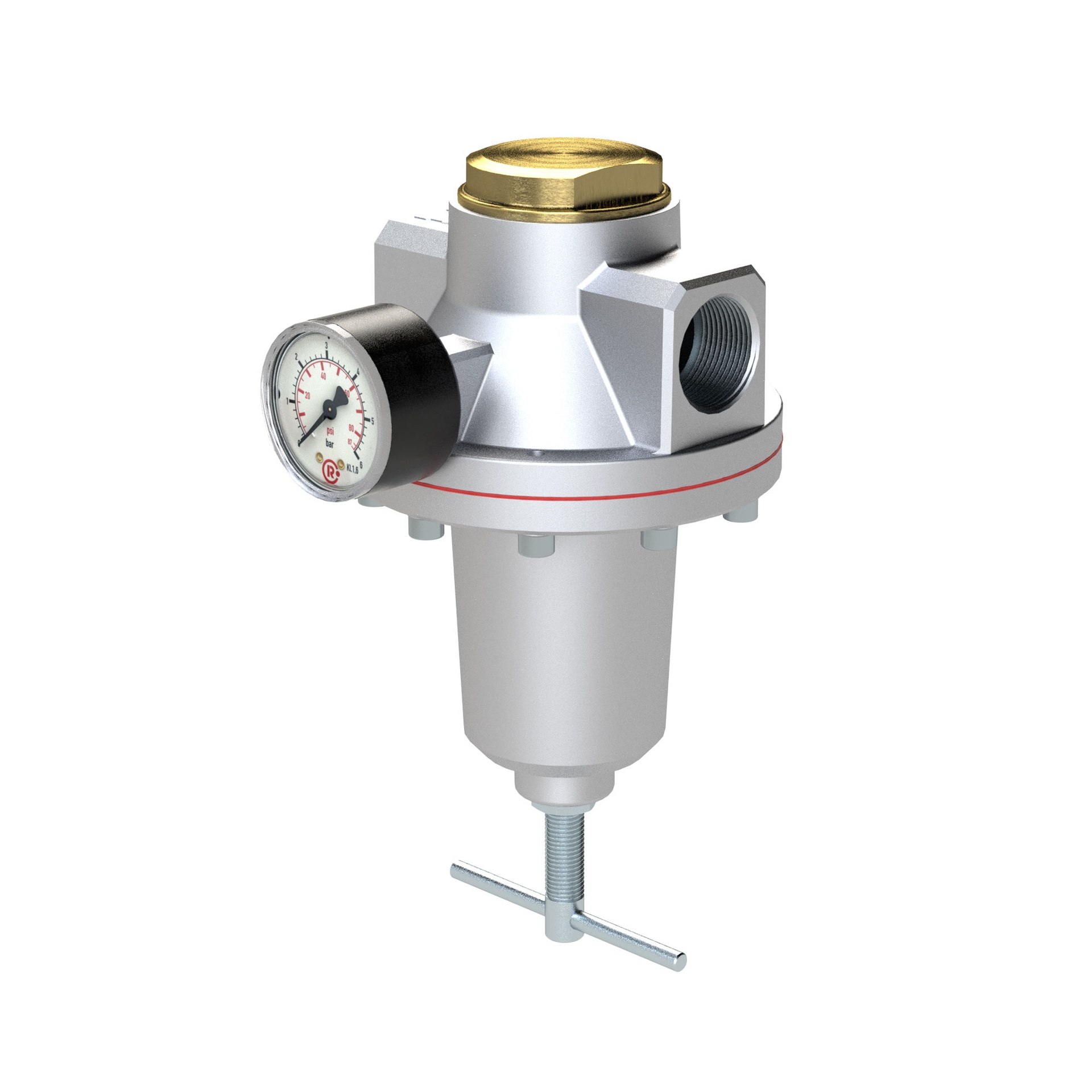

![[147519] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 1, 0.2 - 6 bar](/web/image/product.template/284357/image_128/%5B147519%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%201%2C%200.2%20-%206%20bar?unique=7dddef2)
|
Typennummer: DRK.G1.BG4.0,2-6B |
203.19 € | |
![[147520] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 1, 0.5 - 10 bar](/web/image/product.template/284358/image_128/%5B147520%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%201%2C%200.5%20-%2010%20bar?unique=8889247)
|
Typennummer: DRK.G1.BG4.0,5-10B |
203.19 € | |
![[147513] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.1 - 3 bar](/web/image/product.template/284351/image_128/%5B147513%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.1%20-%203%20bar?unique=b23ea6f)
|
Typennummer: DRK.G34.BG4.0,1-3B |
203.19 € | |
![[147514] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.2 - 6 bar](/web/image/product.template/284352/image_128/%5B147514%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.2%20-%206%20bar?unique=222467a)
|
Typennummer: DRK.G34.BG4.0,2-6B |
203.19 € | |
![[147515] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.5 - 10 bar](/web/image/product.template/284353/image_128/%5B147515%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=ae75ca4)
|
Typennummer: DRK.G34.BG4.0,5-10B |
203.19 € | |
![[147516] RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 3/4, 0.5 - 16 bar](/web/image/product.template/284354/image_128/%5B147516%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%204%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=d86b1c2)
|
Typennummer: DRK.G34.BG4.0,5-16B |
203.19 € | |

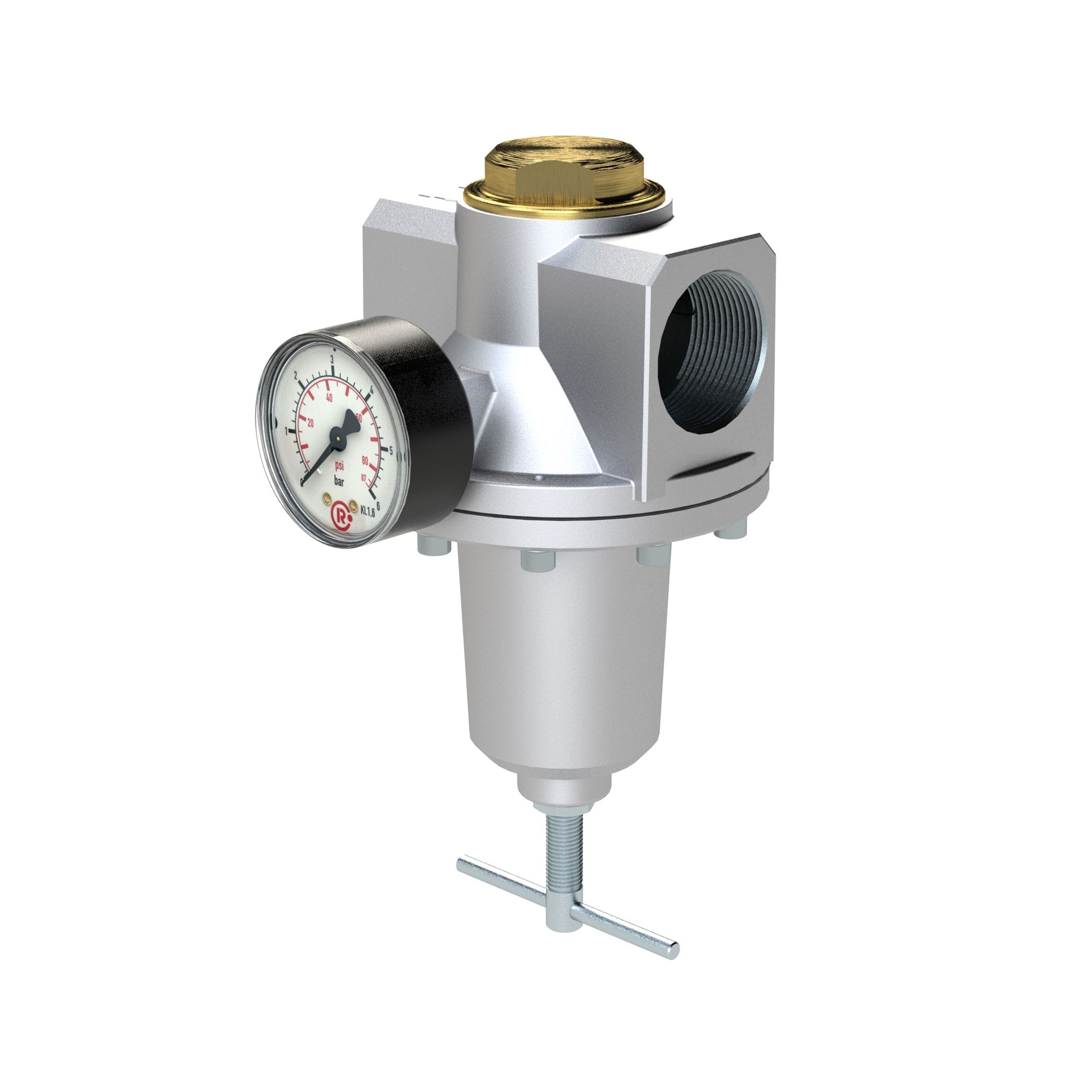

![[147528] RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/2, 0.1 - 3 bar](/web/image/product.template/284365/image_128/%5B147528%5D%20RIEGLER%20constant%20pressure%20regulator%20incl.%20pressure%20gauge%2C%20BG%205%2C%20G%201%201-2%2C%200.1%20-%203%20bar?unique=eca55f7)
|
