RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.5 - 25 bar
Typennummer: DRK.G14.BG1.0,5-25B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Constant pressure regulator made of die-cast zinc, for compressed air treatment, 0.5 bar - Type DRK.G14.BG1.0.5-25B
The RIEGLER constant pressure regulator incl. pressure gauge, BG 1, G 1/4, 0.5 - 25 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 25 bar with a maximum inlet pressure of 40 bar. The permissible medium temperature is between -10 °C and 60 °C. G 1/4 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| fat used | Berulub OX 100 EP |
| Flow 1 | 1750 l/min |
| Control range max. | 25 bar |
| BG | 1 |
| DN | 8 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.5 bar |

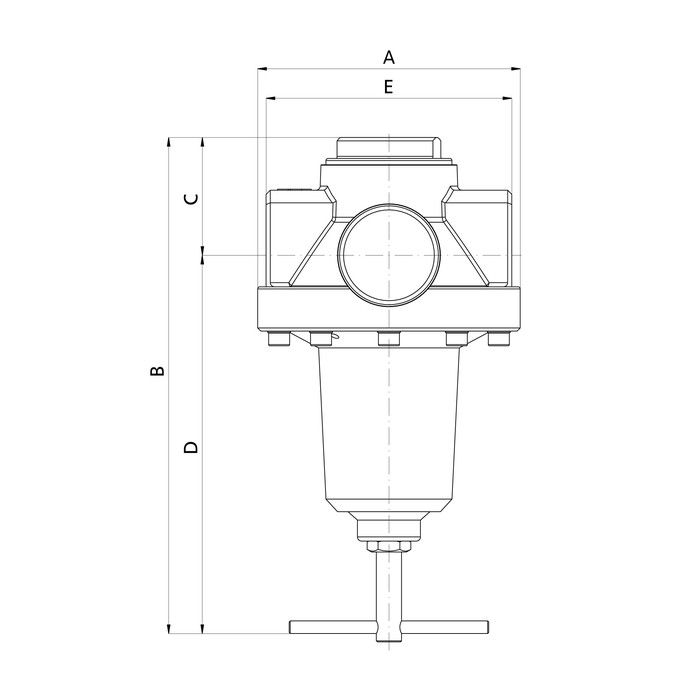

| B | 123 mm |
| C | 30 mm |
| Inlet pressure max. | 40 bar |
| A | 54 mm |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| D | 93 mm |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 1/4 |
| Sealing material | NBR |
| Series | Standard |
| Housing | Zinc die casting |
