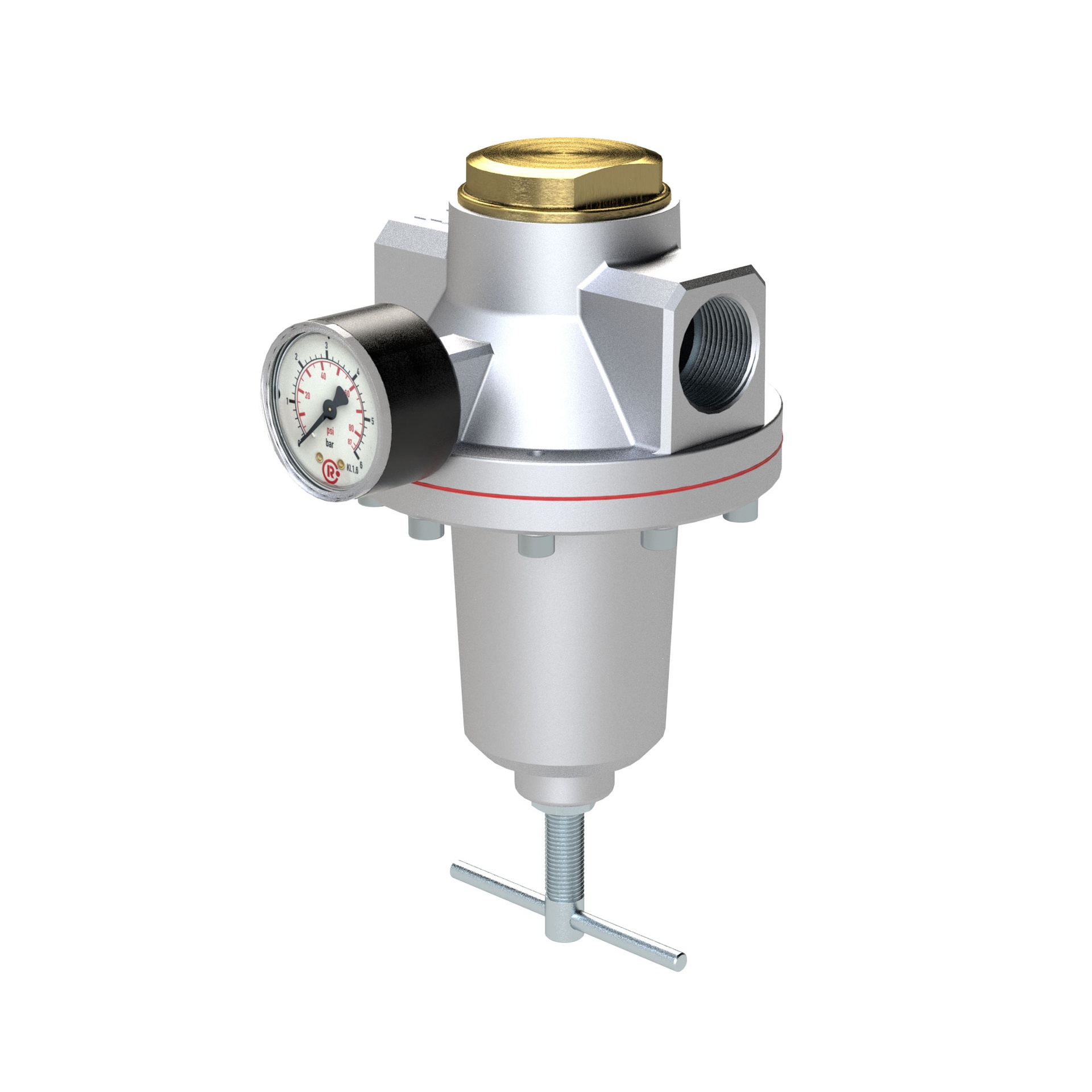

RIEGLER constant pressure regulator incl. pressure gauge, BG 4, G 1, 0.5 - 10 bar
Typennummer: DRK.G1.BG4.0,5-10B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Constant pressure regulator incl. pressure gauge, BG 4, G 1, PE max. 40 bar, medium temperature max. 60 °C, control range 0.5 - 10 bar
| E | 117 mm |
| fat used | Berulub OX 100 EP |
| Spring cover | Die-cast aluminum |
| Flow 1 | 10000 l/min |
| Control range max. | 10 bar |
| BG | 4 |
| DN | 25 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.5 bar |
| A | 125 mm |
| D | 190 mm |
| B | 238 mm |
| Inlet pressure max. | 40 bar |
| C | 48 mm |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Housing | Die-cast aluminum |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 1 |
| Sealing material | NBR |
| Series | Standard |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=3a36581)
|
Type number: 218-KD |
6.25 € | |
![[147540] RIEGLER wear parts kit constant pressure regulator, BG 4, max. control pressure 3-16bar](/web/image/product.template/284376/image_128/%5B147540%5D%20RIEGLER%20wear%20parts%20kit%20constant%20pressure%20regulator%2C%20BG%204%2C%20max.%20control%20pressure%203-16bar?unique=8de8874)
|
Typennummer: VTSDRK.BG4.3-16B |
80.22 € | |
