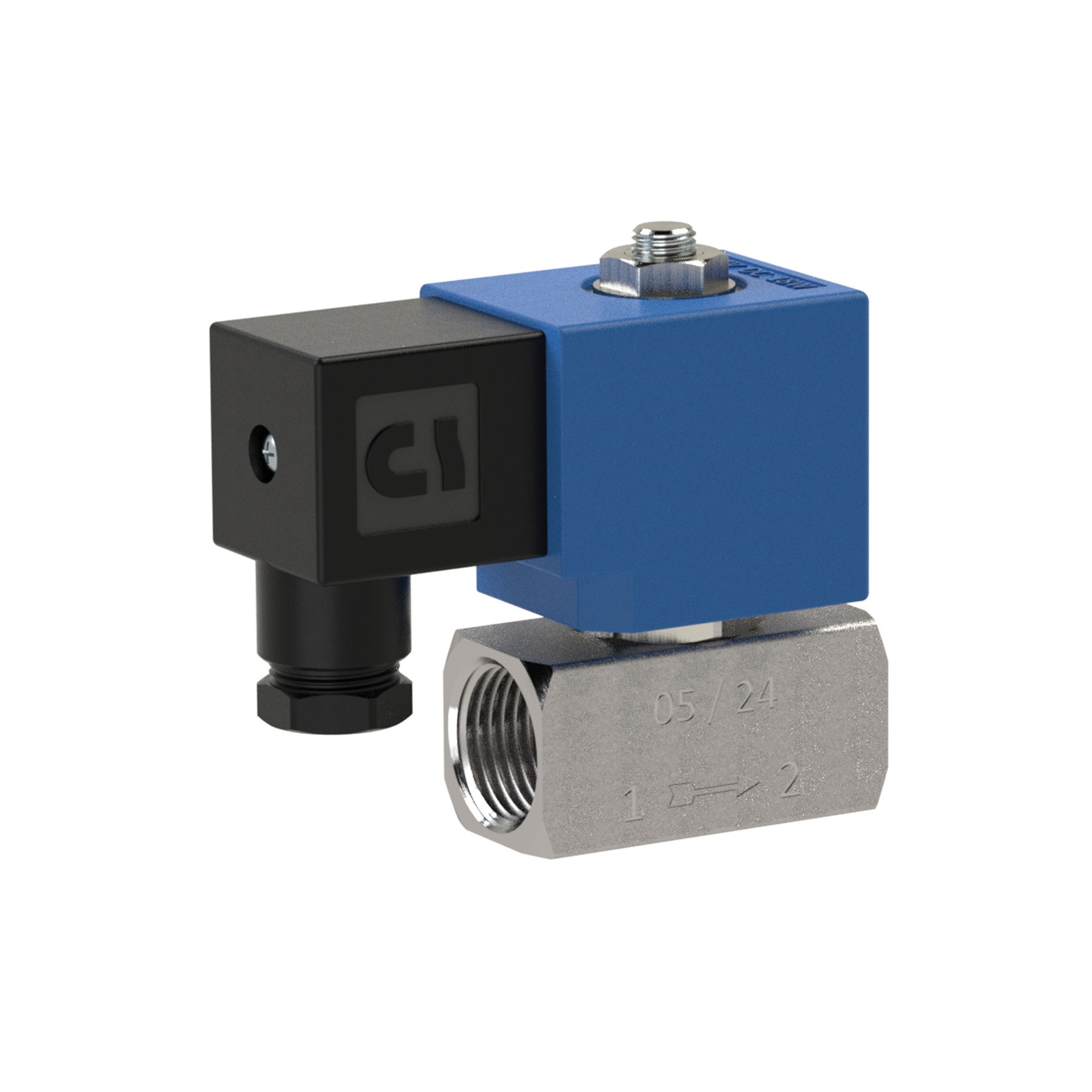

RIEGLER 2/2-way valve, ES, NO, preloaded, 24 V DC, G 1/2, PN 0.5-12 bar, EPDM
Typennummer: MVB.ES.24V.G12.0,5-12B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of stainless steel 1.4401, for industrial systems, max. 12 bar - Type MVB.ES.24V.G12.0.5-12B
The RIEGLER 2/2-way valve, ES, NO, upstream, 24 V DC, G 1/2, PN 0.5-12 bar, EPDM switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4401 with EPDM seals. The operating pressure range is 0.5 bar to 12 bar. The permissible medium temperature is between -10 °C and 130 °C. Connection thread G 1/2 IG (DIN EN ISO 228-1) - suitable for common industry standards. Protection class IP 65. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Opening | 12.5 mm |
| Electrical connection | ISO 4400 / EN 175301-803 Type A |
| Valve seat | Stainless steel |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Thread standard | DIN EN ISO 228-1 |
| Design | 4 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 12 bar |
| Medium temperature max. | 130 °C |
| C | 52 mm |
| Ambient temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| B | 79 mm |
| A | 82 mm |
| Class name | EASY |
| Interior parts | Stainless steel |
| Housing | Stainless steel 1.4401 |
| Sealing material | EPDM |
| Thread | G 1/2 IG |
| Protection class | IP 65 |
