RIEGLER 2/2-way solenoid valve NO, pilot operated, 24 V DC, G 1/2
Type number: MV 1571 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of stainless steel 1.4301, for industrial systems, max. 7 bar - Type MV 1571 ES
The RIEGLER 2/2-way MV., ES, NO, upstream, 24 V DC, G 1/2, PN 0.5-7 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4301 with FPM seals. The operating pressure range is 0.5 bar to 7 bar. Connection thread G 1/2 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Protection class IP 65. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel 1.4301 |
| Sealing material | FPM |
| Protection class | IP 65 |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 7 bar |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4301 |
| Thread | G 1/2 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| NW | 15 |
| Design | 4 |
| A | 70 mm |
| B | 70 mm |
| C | 112.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116574] RIEGLER 2/2-way solenoid valve NO, pilot operated, 24 V DC, G 1](/web/image/product.template/202292/image_128/%5B116574%5D%20RIEGLER%202-2-way%20solenoid%20valve%20NO%2C%20pilot%20operated%2C%2024%20V%20DC%2C%20G%201?unique=63d1543)
|
Type number: MV 1573 ES |
180.30 € | |

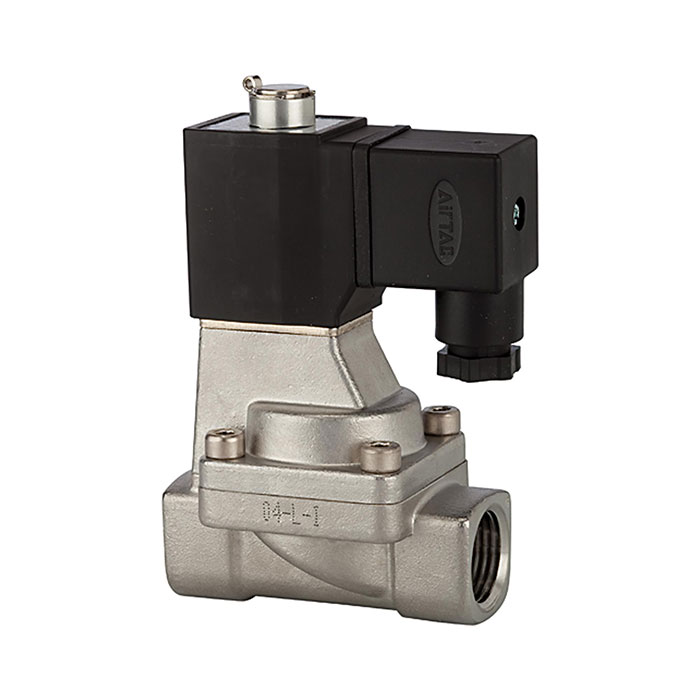

![[116572] RIEGLER 2/2-way solenoid valve NO, pilot operated, 24 V DC, G 3/4](/web/image/product.template/202290/image_128/%5B116572%5D%20RIEGLER%202-2-way%20solenoid%20valve%20NO%2C%20pilot%20operated%2C%2024%20V%20DC%2C%20G%203-4?unique=df8b5e7)
|
