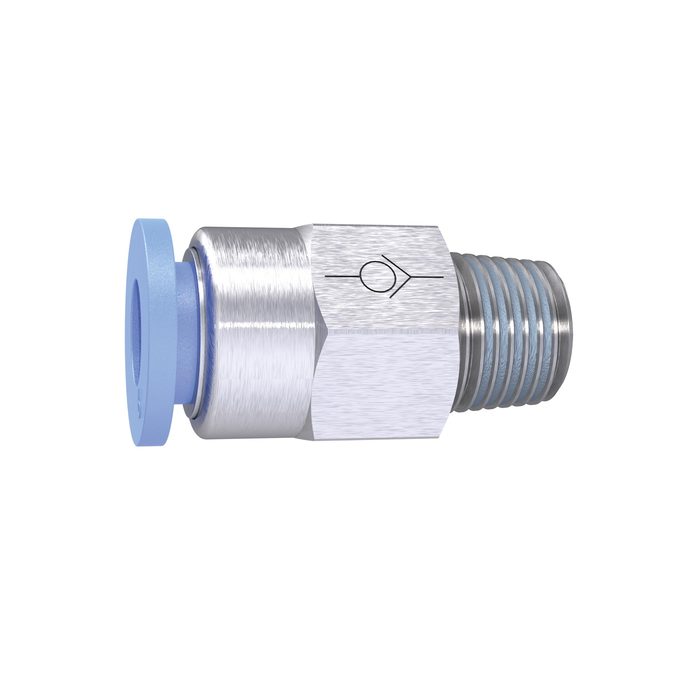

RIEGLER Straight Check valve »Blue Series«, Thread to hose, R 3/8 o.
Typennummer: 202.3810-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight check valve "Blue series" made of plastic or nickel-plated brass - Type 202.3810-2
The RIEGLER straight non-return valve "Blue Series" threaded hose, R 3/8 a. enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread R 3/8 (ISO 7-1) - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Flow direction | Thread to the hose |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 3/8 |
| SW | 17 mm |
| Thread standard | ISO 7-1 |
| for hose outer Ø | 10 mm |
| Execution | With thread coating |
| L1 | 41 mm |
| Class name | EASY |
