RIEGLER Straight Check valve »Blue Series«, Hose to thread, R 1/8 o.
Typennummer: 203.184-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight check valve "Blue series" made of plastic or nickel-plated brass - Type 203.184-2
The RIEGLER straight non-return valve "Blue Series" hose thread, R 1/8 a. enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread R 1/8 (ISO 7-1) - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Flow direction | Trousers to thread |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/8 |
| SW | 10 mm |
| Thread standard | ISO 7-1 |
| for hose outer Ø | 4 mm |
| Execution | With thread coating |
| L1 | 28 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151527] RIEGLER Straight Check valve »Blue Series«, Hose to thread, R 1/2 o.](/web/image/product.template/210682/image_128/%5B151527%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20R%201-2%20o.?unique=e98d731)
|
Typennummer: 203.1212-2 |
7.33 € | |
![[151526] RIEGLER Straight Check valve »Blue Series«, Hose to thread, R 1/2 o.](/web/image/product.template/210681/image_128/%5B151526%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20R%201-2%20o.?unique=ed9fdaa)
|
Typennummer: 203.1210-2 |
6.53 € | |
![[151522] RIEGLER Straight Check valve »Blue Series«, Hose to thread, R 1/4 o.](/web/image/product.template/210677/image_128/%5B151522%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20R%201-4%20o.?unique=e5db354)
|
Typennummer: 203.146-2 |
3.71 € | |
![[151523] RIEGLER Straight Check valve »Blue Series«, Hose to thread, R 1/4 o.](/web/image/product.template/210678/image_128/%5B151523%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20R%201-4%20o.?unique=7e94963)
|
Typennummer: 203.148-2 |
3.76 € | |
![[151520] RIEGLER Straight Check valve »Blue Series«, Hose to thread, R 1/8 o.](/web/image/product.template/210675/image_128/%5B151520%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20R%201-8%20o.?unique=b774493)
|
Typennummer: 203.186-2 |
2.19 € | |

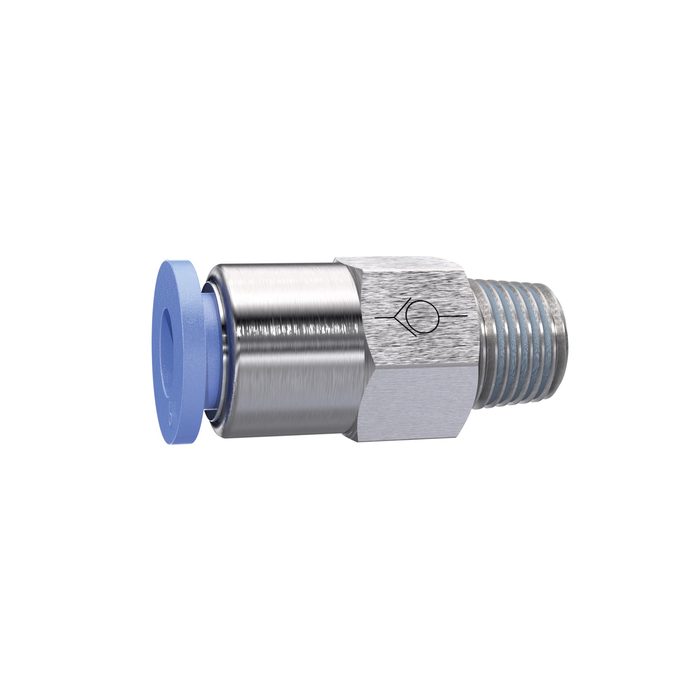

![[151521] RIEGLER Straight Check valve »Blue Series«, Hose to thread, R 1/8 o.](/web/image/product.template/210676/image_128/%5B151521%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20R%201-8%20o.?unique=f667ed1)
|
