RIEGLER Straight Check valve »Blue Series«, Hose to thread, M5 o.
Typennummer: 201.54-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Ger. non-return valve "Blue Series", Slot to thread, M5 a., for slot outer Ø 4 mm, pmax. 10 bar, plastic/MS nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Flow direction | Trousers to thread |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 10 mm |
| Thread standard | DIN 13-1 |
| for hose outer Ø | 4 mm |
| Execution | With O-ring (NBR) |
| L1 | 33 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151517] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 1/2 o.](/web/image/product.template/210672/image_128/%5B151517%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%201-2%20o.?unique=f0e4f9f)
|
Typennummer: 201.1210-2 |
6.34 € | |
![[151518] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 1/2 o.](/web/image/product.template/210673/image_128/%5B151518%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%201-2%20o.?unique=ff43557)
|
Typennummer: 201.1212-2 |
7.44 € | |
![[151514] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 1/4 o.](/web/image/product.template/210669/image_128/%5B151514%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%201-4%20o.?unique=9435f81)
|
Typennummer: 201.148-2 |
4.53 € | |

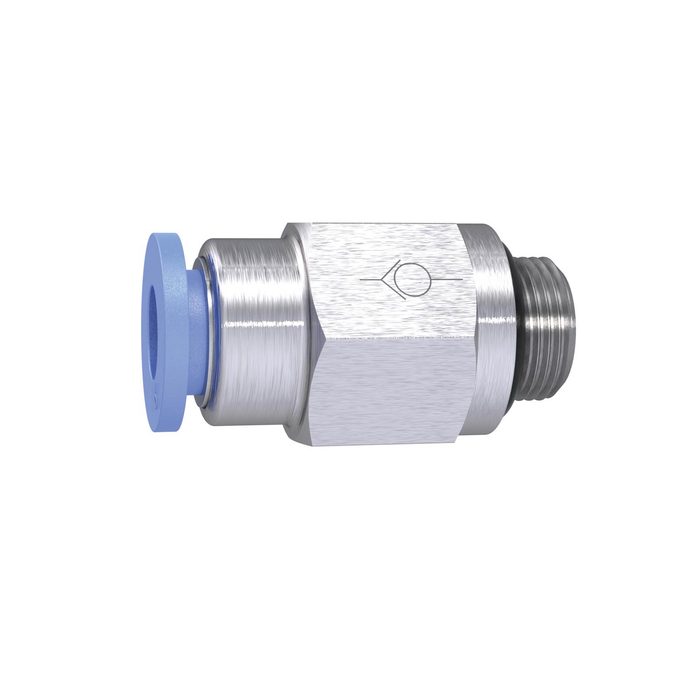

![[151513] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 1/4 o.](/web/image/product.template/210668/image_128/%5B151513%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%201-4%20o.?unique=5b1d7b9)
|
Typennummer: 201.146-2 |
4.49 € | |
![[151510] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 1/8 o.](/web/image/product.template/210665/image_128/%5B151510%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%201-8%20o.?unique=a68233d)
|
Typennummer: 201.184-2 |
2.56 € | |
![[151512] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 1/8 o.](/web/image/product.template/210667/image_128/%5B151512%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%201-8%20o.?unique=179b023)
|
Typennummer: 201.188-2 |
3.00 € | |
![[151511] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 1/8 o.](/web/image/product.template/210666/image_128/%5B151511%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%201-8%20o.?unique=abe17f6)
|
Typennummer: 201.186-2 |
2.58 € | |
![[151515] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 3/8 o.](/web/image/product.template/210670/image_128/%5B151515%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%203-8%20o.?unique=a120115)
|
Typennummer: 201.3810-2 |
5.70 € | |
![[151516] RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 3/8 o.](/web/image/product.template/210671/image_128/%5B151516%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Hose%20to%20thread%2C%20G%203-8%20o.?unique=159698e)
|
Typennummer: 201.3812-2 |
6.53 € | |
