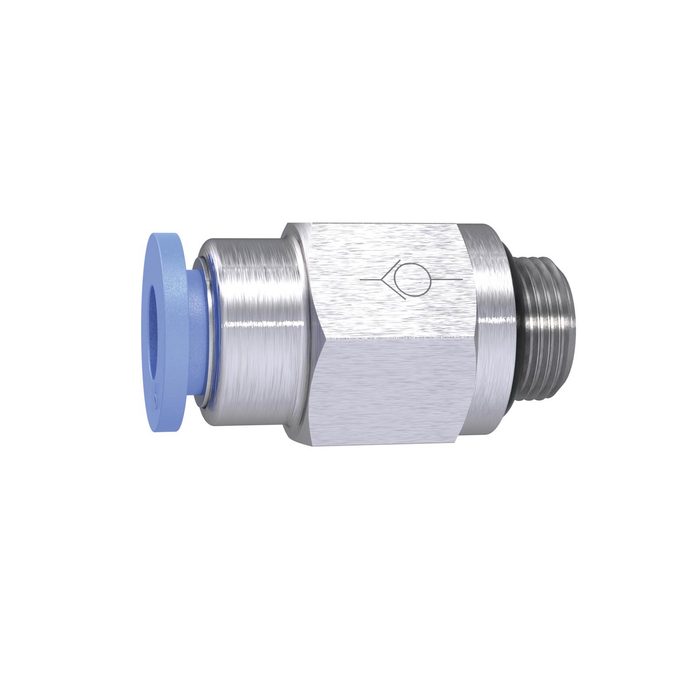

RIEGLER Straight Check valve »Blue Series«, Hose to thread, G 3/8 o.
Type number: 201.3810-2
EAN: 4047322593717
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ger. non-return valve "Blue Series", Slot to thread, G 3/8 a., for slot outer Ø 10 mm, pmax. 10 bar, plastic/MS nickel-plated
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Flow direction | Trousers to thread |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 3/8 |
| SW | 20 mm |
| Thread standard | DIN EN ISO 228-1 |
| for hose outer Ø | 10 mm |
| Execution | With O-ring (NBR) |
| L1 | 41 mm |
| Class name | EASY |
