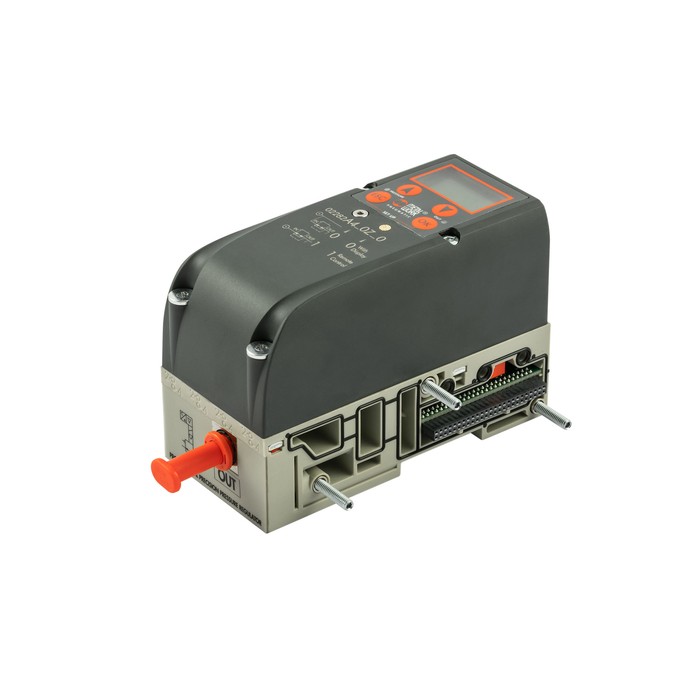

RIEGLER prop. pressure controller EB 80, 4-20 mA, channel 1 in series, with display
Type number: 02282A412Z00
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Proportional pressure regulator for valve terminal EB 80, analog 4 - 20 mA, channel 1 controlled in series, with display
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Electrical connection | M12-Stecker, 8-polig |
| Display | with |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 3.7.3 |
| Hysteresis | = ±0,2 % (vom Endwert) |
| Digital output | PNP / NPN |
| Input signal | 0 - 5 V DC / 0 - 10 V DC / 4 - 20 mA / RS 232 / Tasten |
| Repeatability | = ±0.2 % (of the final value) |
| Analogue output | 4 - 20 mA |
| Control range min. | 0.05 bar |
| Control range max. | 10 bar |
| Execution | analog |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| Flow 1 | 850 Nl/min |
| Flow 2 | 1250 Nl/min |
| REACH Info | contains SVHC substance |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Inlet pressure min. | pressure to be regulated +0.5 to 1 bar |
| Display - Accuracy | < ±0.3 % (of the final value) |
| Display - Unit of measurement | bar, MPa, psi |
| Temperature dependence | max. 2 mbar / °C |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| Power consumption | max. 220 mA at 12 V DC |
| Inlet pressure max. | 10,5 bar |
| Channel 1 | regulated in series |
| Module type | A |
| Module name | Proportional pressure regulator |
