RIEGLER Active charcoal filter »FUTURA«, Metal container, Size 1, G 1/4
Typennummer: FU 891-M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "FUTURA" made of PA66 GF60, for compressed air treatment, G 1/4 - type FU 891-M
The RIEGLER activated carbon filter "FUTURA", metal container, sight tube, BG 1, G 1/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of PA66 GF60. The maximum inlet pressure is 16 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 470 l/min (at P2 = 6 bar and pressure drop Δp = 0.2 bar). Metal container with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.2 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Activated carbon |
| Residual oil content | 0.005 mg/m³ |
| Thread | G 1/4 |
| Flow rate | 470 l/min |
| BG | 1 |
| A | 52 mm |
| B | 158 mm |
| C | 34 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156647] RIEGLER Active charcoal filter »FUTURA«, Metal container, Size 1, G 3/8](/web/image/product.template/213383/image_128/%5B156647%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=8f7218b)
|
Typennummer: FU 892-M |
82.91 € | |
![[139513] RIEGLER Active charcoal filter »FUTURA«, Metal container, Size 2, G 1/2](/web/image/product.template/207993/image_128/%5B139513%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Size%202%2C%20G%201-2?unique=1f70170)
|
Type number: FU 894-M |
138.24 € | |

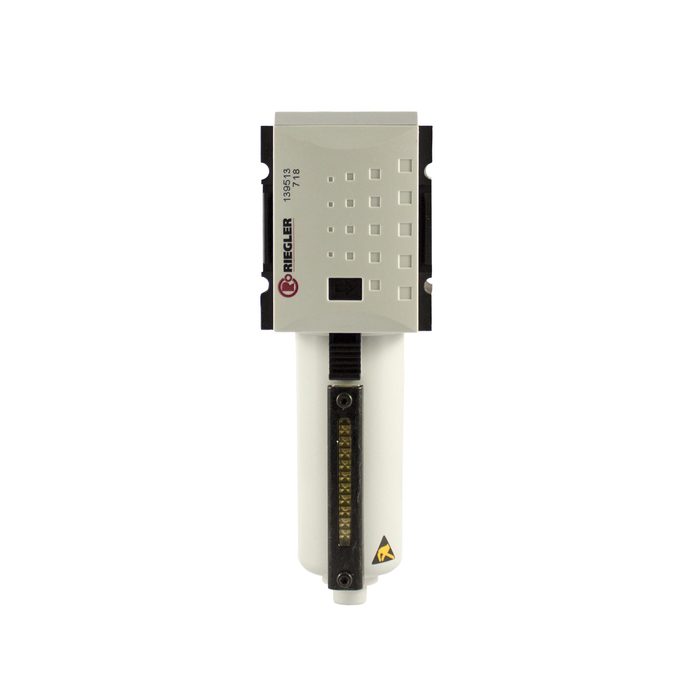

![[139512] RIEGLER Active charcoal filter »FUTURA«, Metal container, Size 2, G 3/8](/web/image/product.template/207992/image_128/%5B139512%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Size%202%2C%20G%203-8?unique=e69aa5e)
|
Type number: FU 893-M |
138.24 € | |
![[156649] RIEGLER Active charcoal filter »FUTURA«, Metal container, Size 4, G 1](/web/image/product.template/213385/image_128/%5B156649%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201?unique=1ac229c)
|
Typennummer: FU 6191-M |
171.78 € | |

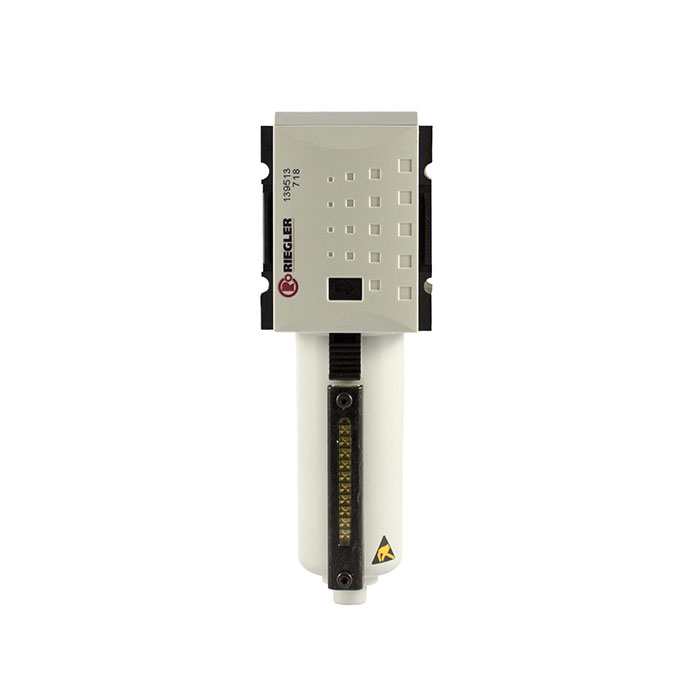

![[156648] RIEGLER Active charcoal filter »FUTURA«, Metal container, Size 4, G 3/4](/web/image/product.template/213384/image_128/%5B156648%5D%20RIEGLER%20Active%20charcoal%20filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%203-4?unique=837d131)
|
Typennummer: FU 6190-M |
171.78 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

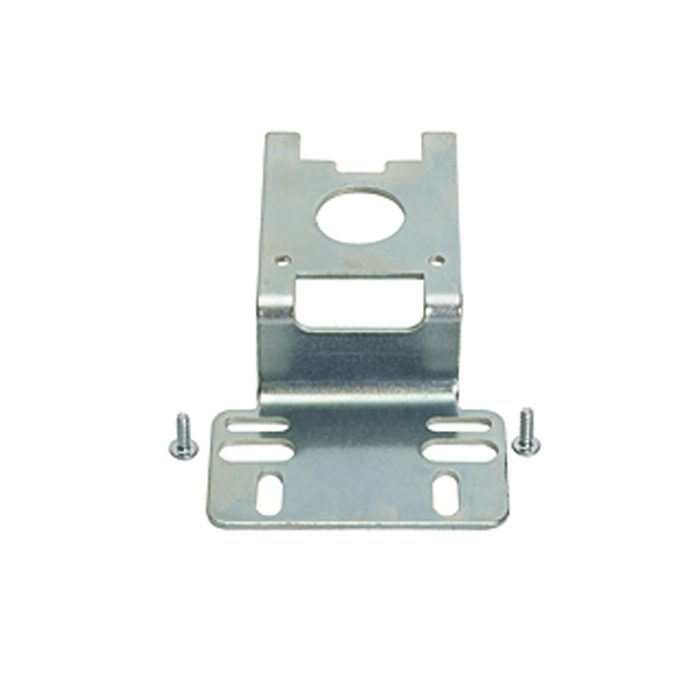

![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=ffee87d)
|
Type number: H 850 |
6.82 € | |

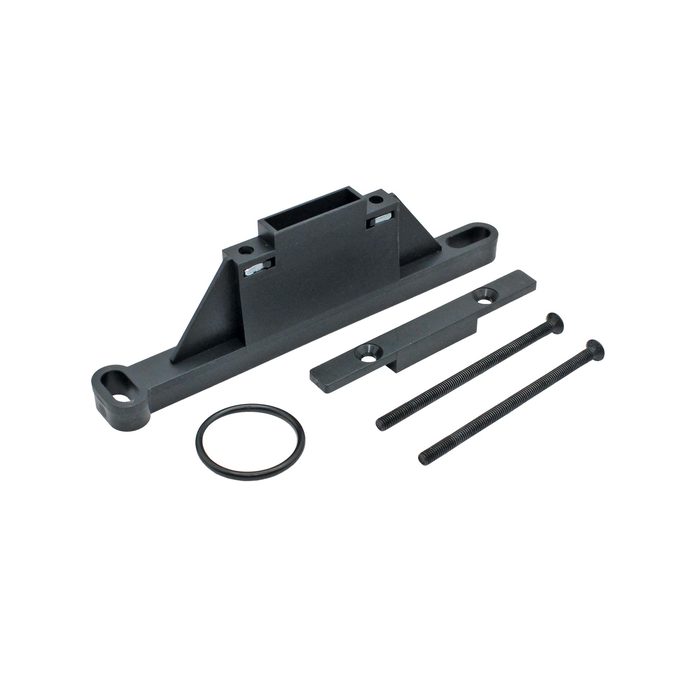

![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=827cdcb)
|
