RIEGLER Count-hinge mod., round cyl., ISO15552/21287, f.fork mod.DIN71752
Typennummer: 453.078
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

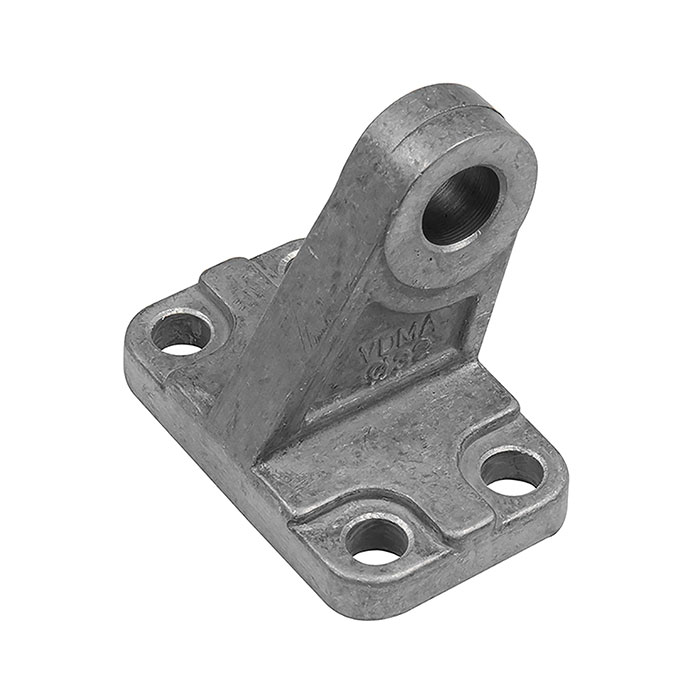

RIEGLER Counter bearing made of aluminum, for automation technology - Type 453.078
The RIEGLER counter bearing, ISO 15552, ISO 21287, f. Forked bearing to DIN 71752, Ø50 enables flexible and safe mounting of pneumatic cylinders. The housing is made of aluminum. Flexible mounting options for various installation positions.
Field of application
Typical areas of application: Cylinder assembly on machines, frames and systems.
| Material | Aluminum |
| Application | for clevises according to DIN 71752 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| for cylinders | Round cylinders (not ISO 6432), ISO 21287, ISO 15552 |
| suitable for piston Ø | 50, 80, 50 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Standard | according to CETOP RP107P |
