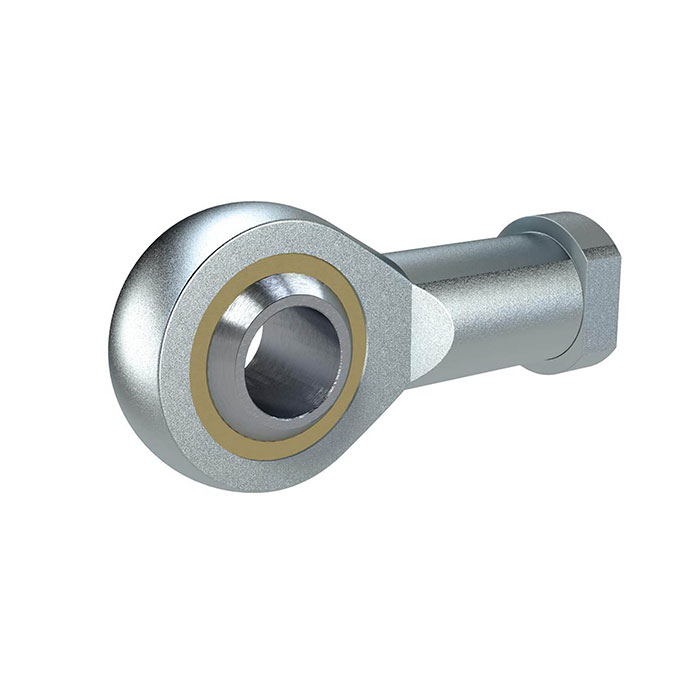

RIEGLER Rod eye AP6 ISO 8139, bore 30, M27x2
Typennummer: GEKAP6M27X2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Rod end AP6 ISO 8139 for automation technology - Type GEKAP6M27X2
The RIEGLER rod end AP6 ISO 8139, bore 30, M27x2 enables flexible and secure mounting of pneumatic cylinders. Flexible mounting options for various installation positions.
Field of application
Typical areas of application: Cylinder assembly on machines, frames and systems.
| Piston rod thread | M27x2 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| for cylinders | ISO 15552 |
| suitable for piston Ø | 125 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Standard | according to ISO 8139 |
| Drill hole | 30 |
