RIEGLER 3/2-way solenoid valve stainless steel, NC, 230VAC,50-60Hz, G 1/8
Typennummer: MV18ES230
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way solenoid valve, stainless steel, NC, direct operated, 230 V AC, 50 - 60 Hz, medium temp. -10°C to 100°C, FPM, G 1/8, PN 0-15 bar
| Housing | Stainless steel 1.4401 |
| Sealing material | FPM |
| Protection class | IP 65 (when using the cable plug) |
| Electrical connection | for cable plug PG 11 P, to DIN 4400 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 15 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4401 |
| Thread | G 1/8 |
| DN | 45323 |
| Function | normally closed (NC) |
| Tension | 230 V AC, 50 - 60 Hz |
| A | 60.5 mm |
| B | 33 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

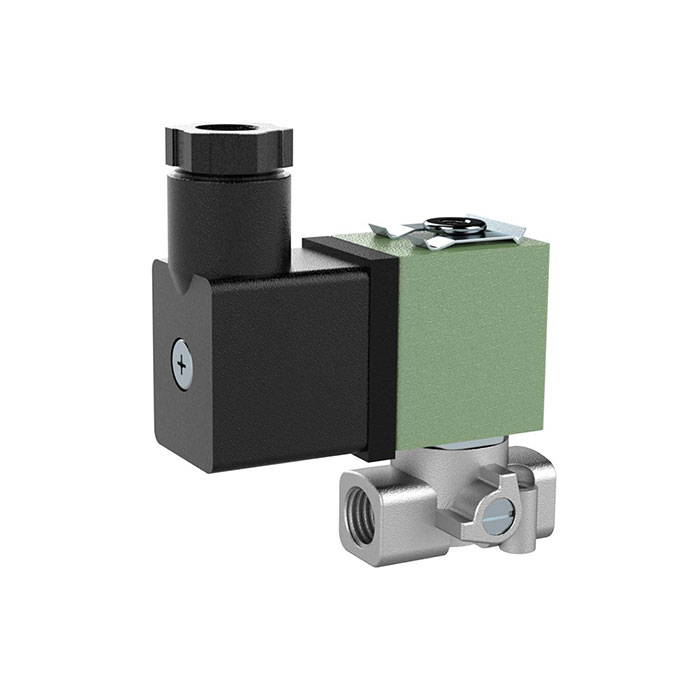

![[158094] RIEGLER 3/2-way solenoid valve stainless steel, NC, 24 V DC, FPM, G 1/8](/web/image/product.template/214591/image_128/%5B158094%5D%20RIEGLER%203-2-way%20solenoid%20valve%20stainless%20steel%2C%20NC%2C%2024%20V%20DC%2C%20FPM%2C%20G%201-8?unique=e45d3bc)
|
Typennummer: MV18ES24 |
143.34 € | |
