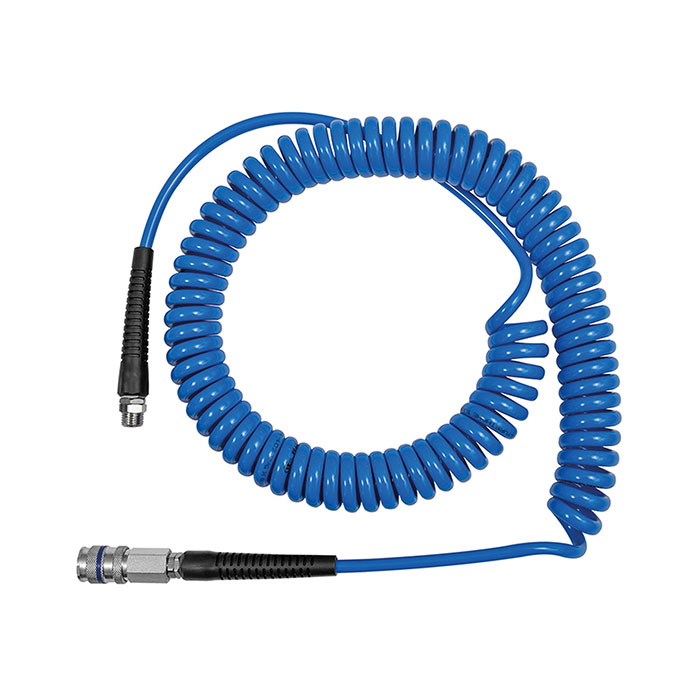

RIEGLER Spiral hose steel coupling set, PU, Hose Ø 12x8, Length 6.0 m
Typennummer: SP12600PUSSK
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spiral hose steel coupling set for compressed air distribution - type SP12600PUSSK
The RIEGLER spiral hose/steel coupling set, PU, hose ø 12x8, 6.0 m flexibly and reliably conducts compressed air from the compressor to the consumer. The operating temperature is between -20 °C and 60 °C. Hose Ø 12x8 mm. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Hose Ø | 12x8 mm |
| Windings | 31 |
| Working length max. | 6 m |
| outer winding Ø | 82 mm |
| Max. operating pressure at 23 °C | 10 bar |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

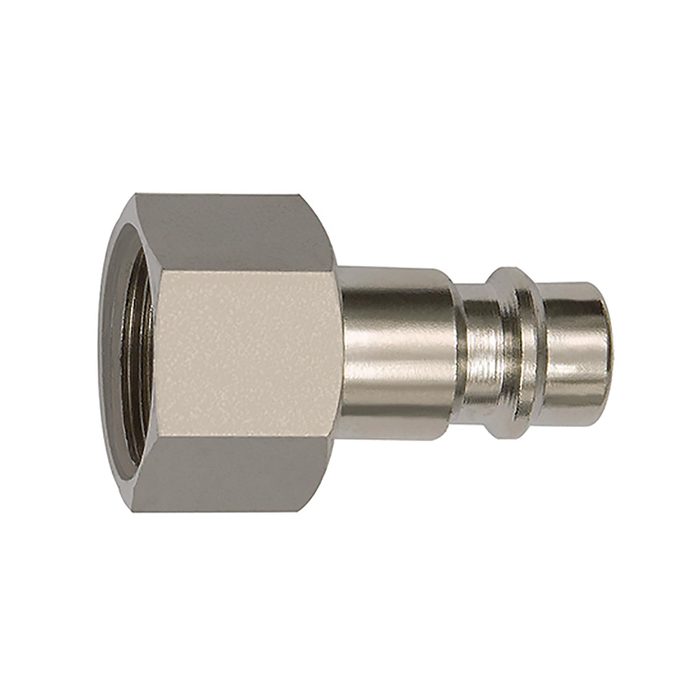

![[141551] RIEGLER Nipple for couplings I.D. 7.2 - I.D. 7.8, Steel, G 3/8 IT](/web/image/product.template/208183/image_128/%5B141551%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2%20-%20I.D.%207.8%2C%20Steel%2C%20G%203-8%20IT?unique=0c8cc99)
|
Type number: 244.552 |
1.54 € | |

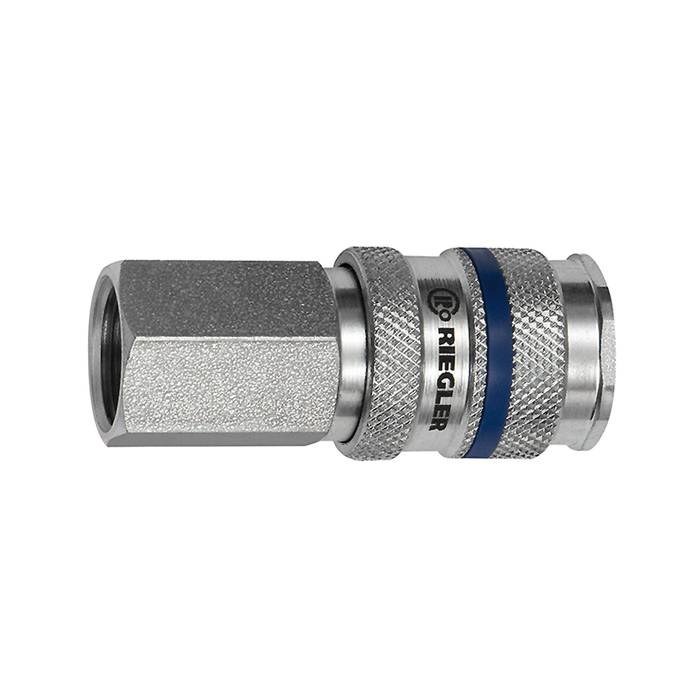

![[141516] RIEGLER Quick-connect coupling I.D. 7.8, Steel, G 3/8 IT](/web/image/product.template/208148/image_128/%5B141516%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%207.8%2C%20Steel%2C%20G%203-8%20IT?unique=41d03a8)
|
Type number: 244.72-E |
10.66 € | |
![[158165] RIEGLER Spiral hose, Fitting, Kink protection spring, PU, Hose Ø 12x8, 6m](/web/image/product.template/214650/image_128/%5B158165%5D%20RIEGLER%20Spiral%20hose%2C%20Fitting%2C%20Kink%20protection%20spring%2C%20PU%2C%20Hose%20%C3%98%2012x8%2C%206m?unique=c2ce877)
|
Typennummer: SP12600PU |
94.64 € | |
