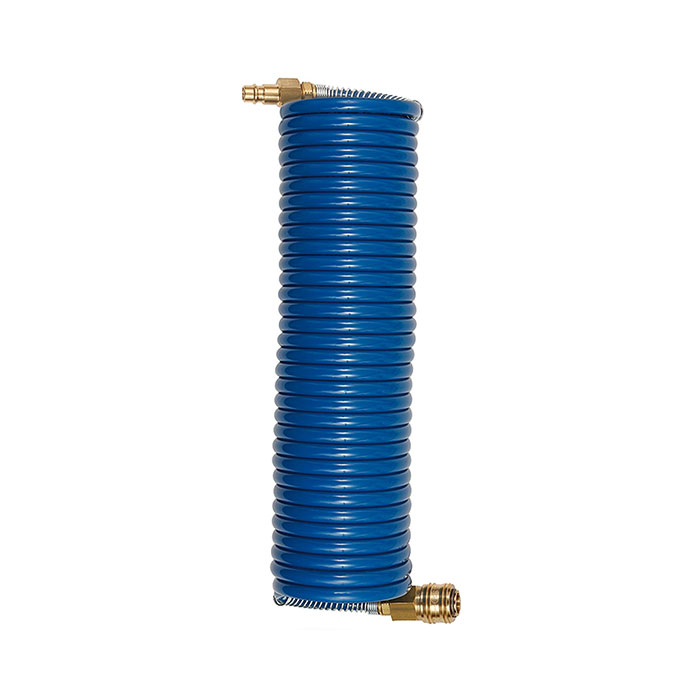

RIEGLER Spiral hose coupling set, Nylon, Hose Ø 11.8x9.5, 2.5 m
Type number: SP 12-250KSD
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spiral hose coupling set, standard coupling NW 7.2, nylon 11 PA, hose ø 11.8x9.5, PN at 23 °C max. 11 bar, length 2.5 m
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
| Hose Ø | 11.8x9.5 mm |
| Outer spiral Ø | 140 mm |
| Windings | 8 |
| Working length max. | 2.5 m |
| Max. operating pressure at 23 °C | 11 bar |
| Class name | MAX |
