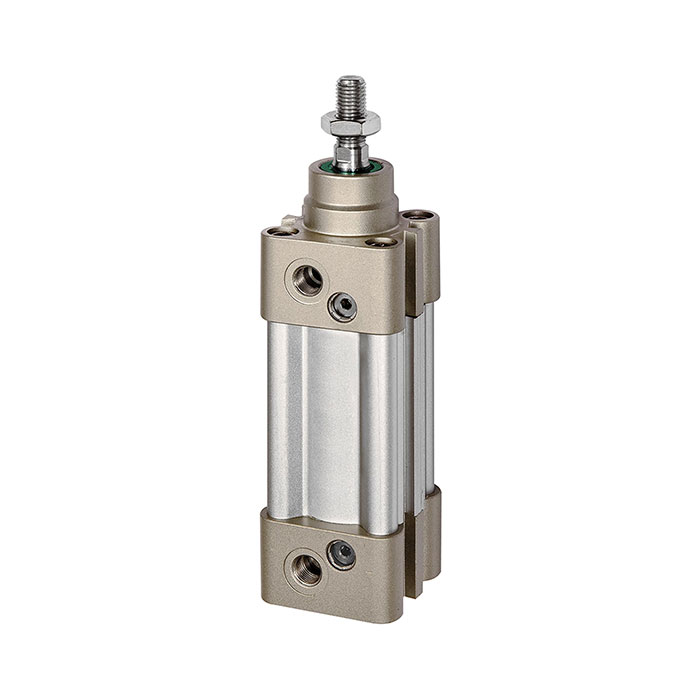

RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 1000, G 3/8
Type number: 16.DMD.631000
EAN: 4047322653701
Normzylinder SAI, ISO 15552, doppeltwir. Magnet, Kolben-Ø 63, Hub 1000, Anschluss G 3/8, 1,5-10 bar, -20°C bis 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | Serie SAI |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 63 mm |
| Function | doppeltwirkend |
| Stroke | 1000 mm |
| Piston rods AG | M16x1.5 |
| Piston rod Ø | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 |
| Piston rod | Stahl, hartverchromt |
| Piston | Aluminium |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
