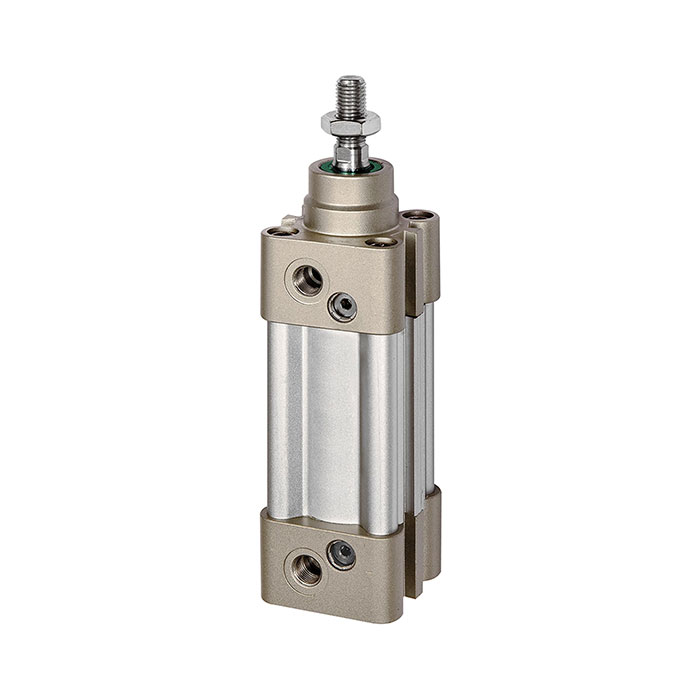

RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 900, G 1/2
Typennummer: 16.DMD.125900
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Standard cylinder SAI, ISO 15552, double-act. Solenoid, piston Ø 125, stroke 900, connection G 1/2, 1.5-10 bar, -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | SAI series |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 125 mm |
| Function | double-acting |
| Stroke | 900 mm |
| Piston rods AG | M27x2 |
| Piston rod Ø | 32 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

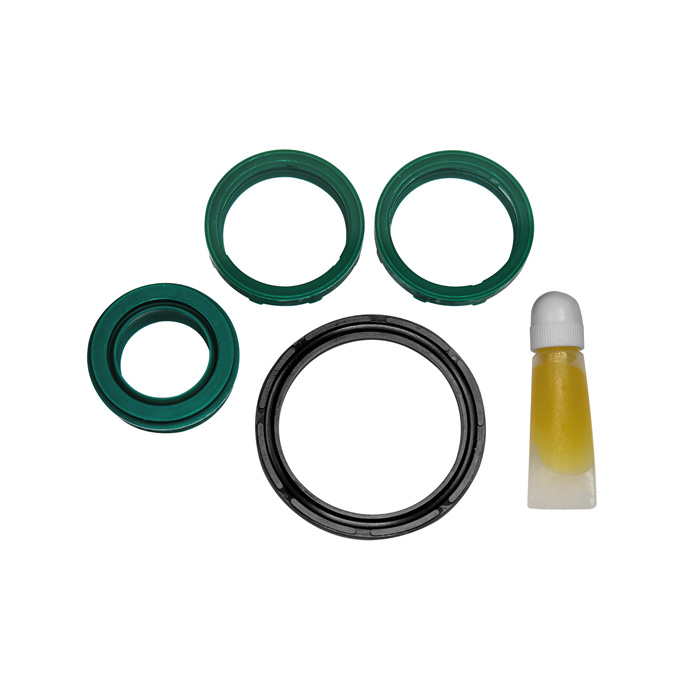

![[116868] RIEGLER Seal kit, for standard cylinder SAI, piston Ø 125, TPU/NBR](/web/image/product.template/274702/image_128/%5B116868%5D%20RIEGLER%20Seal%20kit%2C%20for%20standard%20cylinder%20SAI%2C%20piston%20%C3%98%20125%2C%20TPU-NBR?unique=f17200e)
|
Type number: 437.166 |
15.18 € | |
