RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 175, G 3/8
Part Number: 16.DMD.80175
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

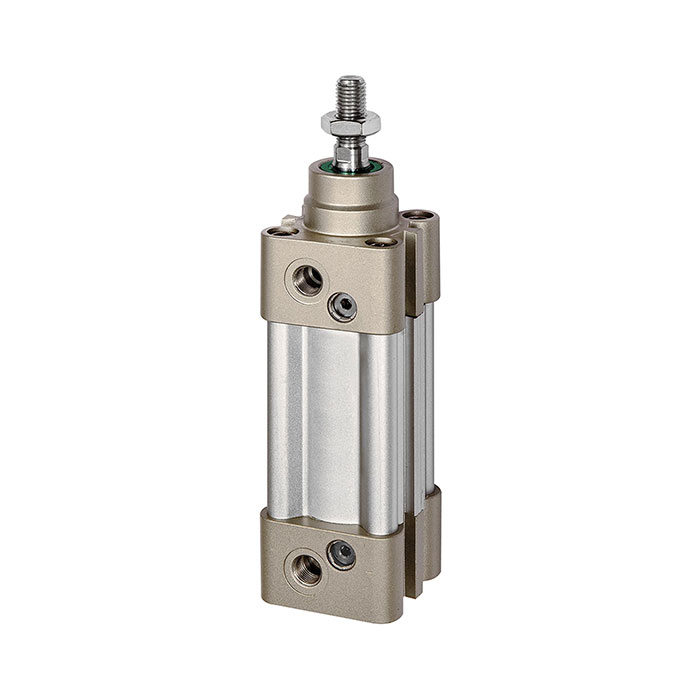

RIEGLER Standard cylinder SAI for automation technology, max. 10 bar, G 3/8 - Type 16.DMD.80175
The RIEGLER standard cylinder SAI, double-acting, piston Ø 80, stroke 175, G 3/8 converts compressed air into linear force and movement - manufactured in accordance with ISO 15552 / ISO 6432. with NBR seals (O-rings). The operating pressure range is 1.5 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread G 3/8 - suitable for common industry standards. With piston Ø 80 mm, stroke 175 mm, hard chrome-plated steel piston rod - for powerful linear actuator solutions. Standard-compliant and interchangeable across manufacturers.
Field of application
Typical areas of application: Automation, mechanical engineering and handling technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | SAI series |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 80 mm |
| Function | double-acting |
| Stroke | 175 mm |
| Piston rods AG | M20x1.5 |
| Piston rod Ø | 25 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[170653] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 100, G 3/8](/web/image/product.template/216245/image_128/%5B170653%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20100%2C%20G%203-8?unique=8edb5f8)
|
Part Number: 16.DMD.80100 |
139.49 € | |
![[170654] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 125, G 3/8](/web/image/product.template/216246/image_128/%5B170654%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20125%2C%20G%203-8?unique=773a8b3)
|
Part Number: 16.DMD.80125 |
143.63 € | |
![[170655] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 150, G 3/8](/web/image/product.template/216247/image_128/%5B170655%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20150%2C%20G%203-8?unique=3caa484)
|
Part Number: 16.DMD.80150 |
147.01 € | |
![[170656] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 160, G 3/8](/web/image/product.template/216248/image_128/%5B170656%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20160%2C%20G%203-8?unique=85d5082)
|
Part Number: 16.DMD.80160 |
151.59 € | |
![[170658] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 200, G 3/8](/web/image/product.template/216250/image_128/%5B170658%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20200%2C%20G%203-8?unique=ad6fcc0)
|
Part Number: 16.DMD.80200 |
155.63 € | |
![[170659] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 250, G 3/8](/web/image/product.template/216251/image_128/%5B170659%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20250%2C%20G%203-8?unique=4d8344f)
|
Part Number: 16.DMD.80250 |
163.70 € | |

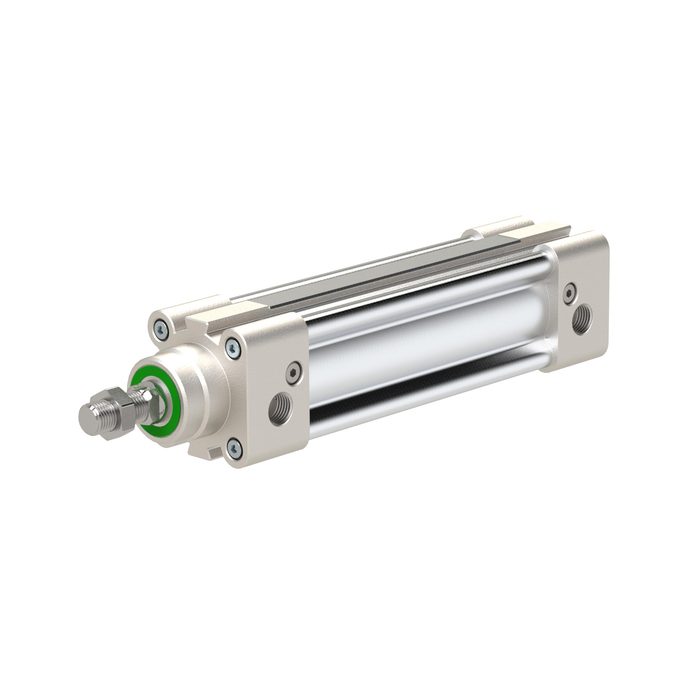

![[170660] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 300, G 3/8](/web/image/product.template/216252/image_128/%5B170660%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20300%2C%20G%203-8?unique=1a96b37)
|
Part Number: 16.DMD.80300 |
171.96 € | |
![[170650] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 50, G 3/8](/web/image/product.template/216242/image_128/%5B170650%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2050%2C%20G%203-8?unique=68a822b)
|
Part Number: 16.DMD.80050 |
131.44 € | |
![[170651] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 75, G 3/8](/web/image/product.template/216243/image_128/%5B170651%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2075%2C%20G%203-8?unique=dbc7b8b)
|
Part Number: 16.DMD.80075 |
135.35 € | |
![[170652] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 80, G 3/8](/web/image/product.template/216244/image_128/%5B170652%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2080%2C%20G%203-8?unique=3dead5b)
|
Part Number: 16.DMD.80080 |
139.49 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115534] RIEGLER Sensor, »CS1« type, REED sensor, 2-wire, 3 m cable, NO](/web/image/product.template/200293/image_128/%5B115534%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20REED%20sensor%2C%202-wire%2C%203%20m%20cable%2C%20NO?unique=c149fcb)
|
Type number: 235.201 |
12.53 € | |
![[115535] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200294/image_128/%5B115535%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=0c5e4e2)
|
Type number: 235.202 |
26.91 € | |
![[115536] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, NPN](/web/image/product.template/200295/image_128/%5B115536%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20NPN?unique=25543d7)
|
Type number: 235.203 |
24.42 € | |
![[115537] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200296/image_128/%5B115537%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=03251ba)
|
Type number: 235.204 |
26.91 € | |
![[115538] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, PNP](/web/image/product.template/200297/image_128/%5B115538%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20PNP?unique=ace5e7a)
|
Type number: 235.205 |
24.42 € | |
![[115755] RIEGLER Foot fastening, »LB« for standard cylinder »SE«,»SAI«, pistonØ80](/web/image/product.template/200490/image_128/%5B115755%5D%20RIEGLER%20Foot%20fastening%2C%20%C2%BBLB%C2%AB%20for%20standard%20cylinder%20%C2%BBSE%C2%AB%2C%C2%BBSAI%C2%AB%2C%20piston%C3%9880?unique=8f0c579)
|
Type number: 437.104 |
6.43 € | |
![[115762] RIEGLER Pivoting bearing block »TF« for standard cyl., for piston Ø63-80](/web/image/product.template/200497/image_128/%5B115762%5D%20RIEGLER%20Pivoting%20bearing%20block%20%C2%BBTF%C2%AB%20for%20standard%20cyl.%2C%20for%20piston%20%C3%9863-80?unique=8d010e2)
|
Type number: 437.112 |
29.75 € | |

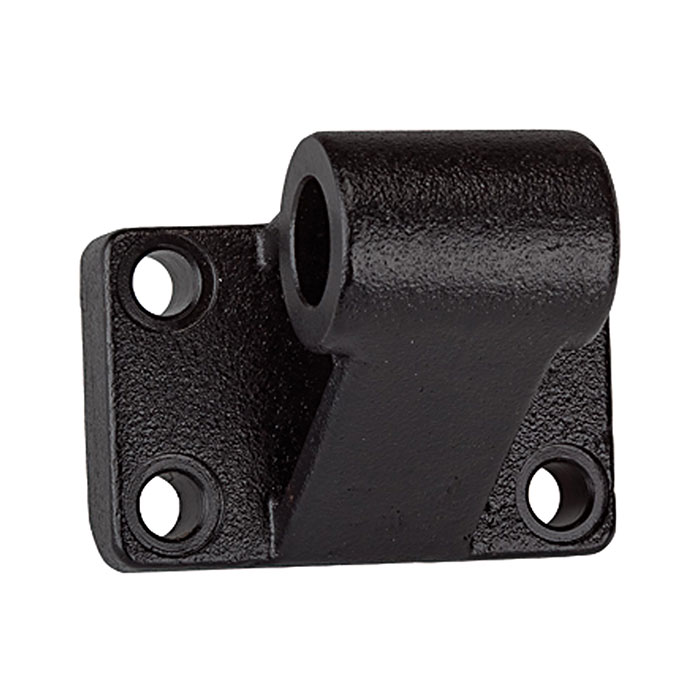

![[115768] RIEGLER Counter bearing »CR« for standard cylinder »SE«,»SAI«, pistonØ80](/web/image/product.template/200503/image_128/%5B115768%5D%20RIEGLER%20Counter%20bearing%20%C2%BBCR%C2%AB%20for%20standard%20cylinder%20%C2%BBSE%C2%AB%2C%C2%BBSAI%C2%AB%2C%20piston%C3%9880?unique=8a4f969)
|
Type number: 437.124 |
15.35 € | |

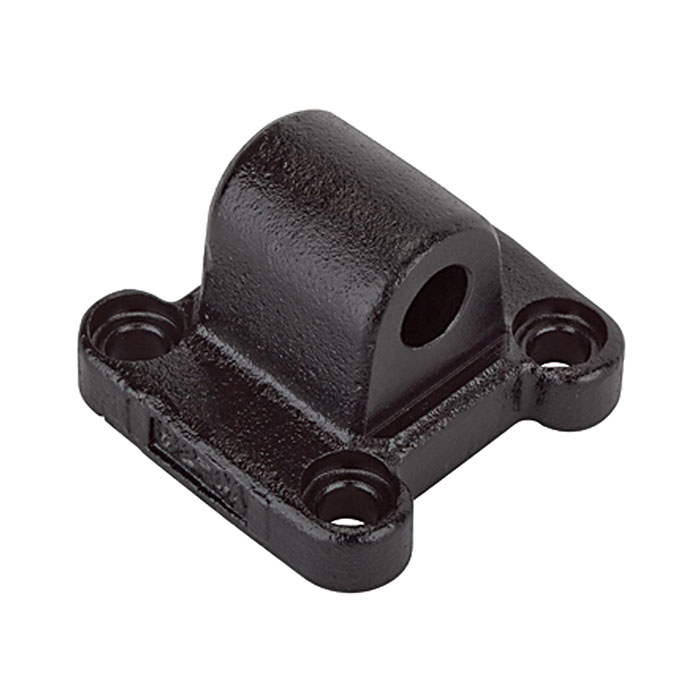

![[115776] RIEGLER Trunnion mounting »CA« for standard cylinder, for piston Ø 80](/web/image/product.template/200511/image_128/%5B115776%5D%20RIEGLER%20Trunnion%20mounting%20%C2%BBCA%C2%AB%20for%20standard%20cylinder%2C%20for%20piston%20%C3%98%2080?unique=3bb2c4c)
|
Type number: 437.134 |
19.30 € | |

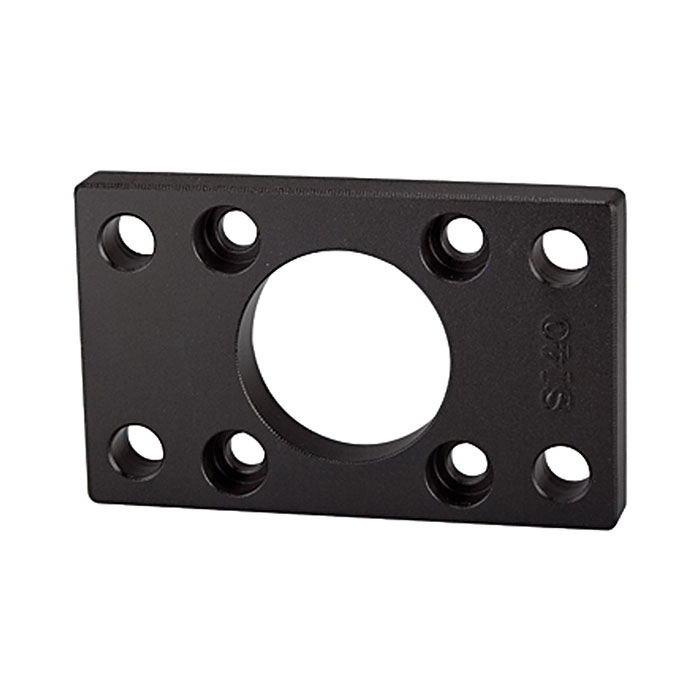

![[115783] RIEGLER Flange fastening »FA« for standard cylinder »SE«,»SAI«,pistonØ80](/web/image/product.template/200518/image_128/%5B115783%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20standard%20cylinder%20%C2%BBSE%C2%AB%2C%C2%BBSAI%C2%AB%2Cpiston%C3%9880?unique=c3b3ed3)
|
Type number: 437.144 |
14.98 € | |

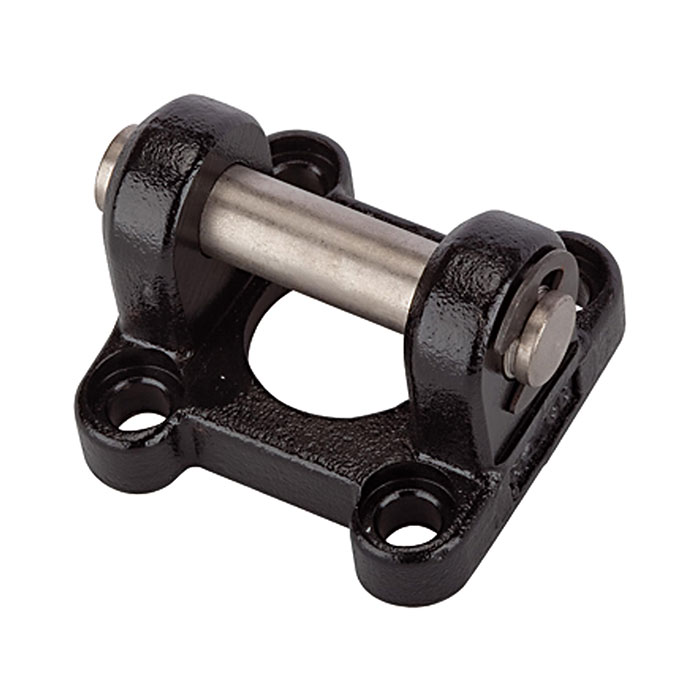

![[115790] RIEGLER Pivoting fork fastening »CB« for standard cyl., for piston Ø 80](/web/image/product.template/200525/image_128/%5B115790%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20standard%20cyl.%2C%20for%20piston%20%C3%98%2080?unique=21392eb)
|
Type number: 437.154 |
19.30 € | |

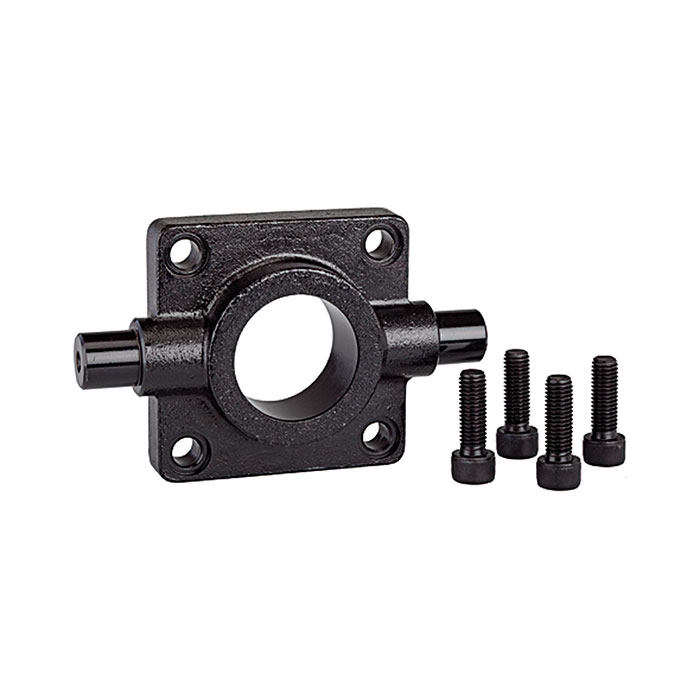

![[115797] RIEGLER Pivoting head mounting »FTC« for standard cyl., for piston Ø 80](/web/image/product.template/200532/image_128/%5B115797%5D%20RIEGLER%20Pivoting%20head%20mounting%20%C2%BBFTC%C2%AB%20for%20standard%20cyl.%2C%20for%20piston%20%C3%98%2080?unique=809fcc7)
|
Type number: 437.174 |
34.11 € | |
![[115802] RIEGLER Pivoting bearing »TM« for standard cylinder, for piston Ø 63-80](/web/image/product.template/200537/image_128/%5B115802%5D%20RIEGLER%20Pivoting%20bearing%20%C2%BBTM%C2%AB%20for%20standard%20cylinder%2C%20for%20piston%20%C3%98%2063-80?unique=34163f5)
|
Type number: 437.183 |
14.93 € | |
![[115812] RIEGLER Fork head, »Y«, Piston rod thread M20x1.5](/web/image/product.template/200546/image_128/%5B115812%5D%20RIEGLER%20Fork%20head%2C%20%C2%BBY%C2%AB%2C%20Piston%20rod%20thread%20M20x1.5?unique=5f8db4b)
|
Type number: 437.213 |
19.30 € | |
![[115817] RIEGLER Joint head»UNIT«, Piston rod thread M20x1.5](/web/image/product.template/200551/image_128/%5B115817%5D%20RIEGLER%20Joint%20head%C2%BBUNIT%C2%AB%2C%20Piston%20rod%20thread%20M20x1.5?unique=88dd771)
|
Type number: 437.223 |
21.47 € | |
![[116944] RIEGLER Sensor »CS1« REED, 2-Draht, M8, NO](/web/image/product.template/267815/image_128/%5B116944%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=bb9c973)
|
Type number: 235.200-1 |
14.83 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

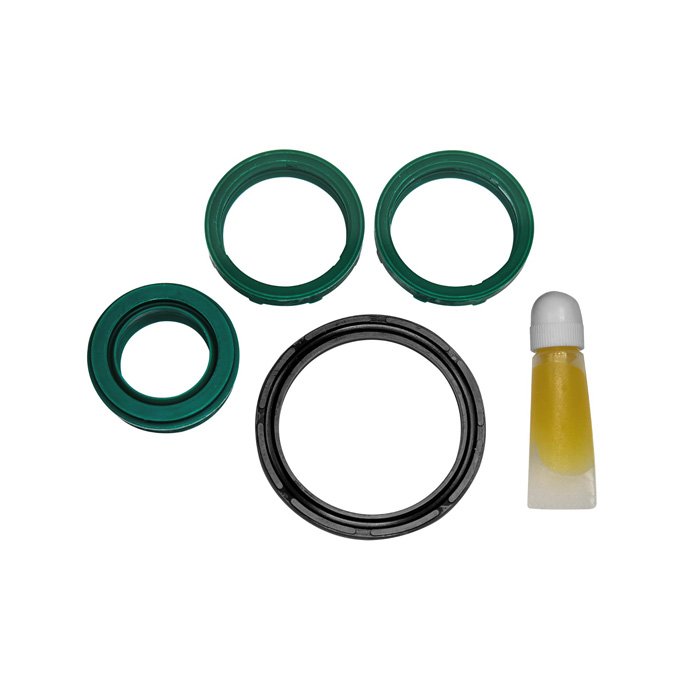

![[116866] RIEGLER Seal kit, for standard cylinder SAI, piston Ø 80, TPU/NBR](/web/image/product.template/274700/image_128/%5B116866%5D%20RIEGLER%20Seal%20kit%2C%20for%20standard%20cylinder%20SAI%2C%20piston%20%C3%98%2080%2C%20TPU-NBR?unique=77cfad9)
|
