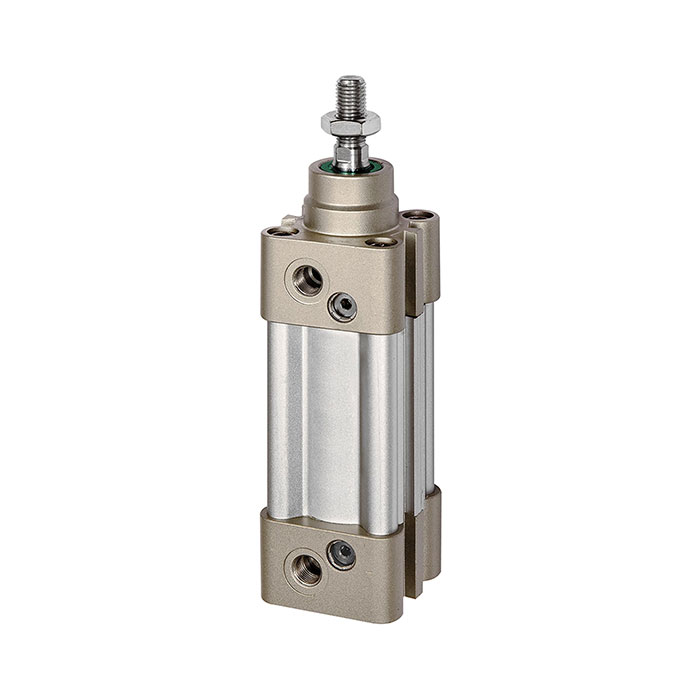

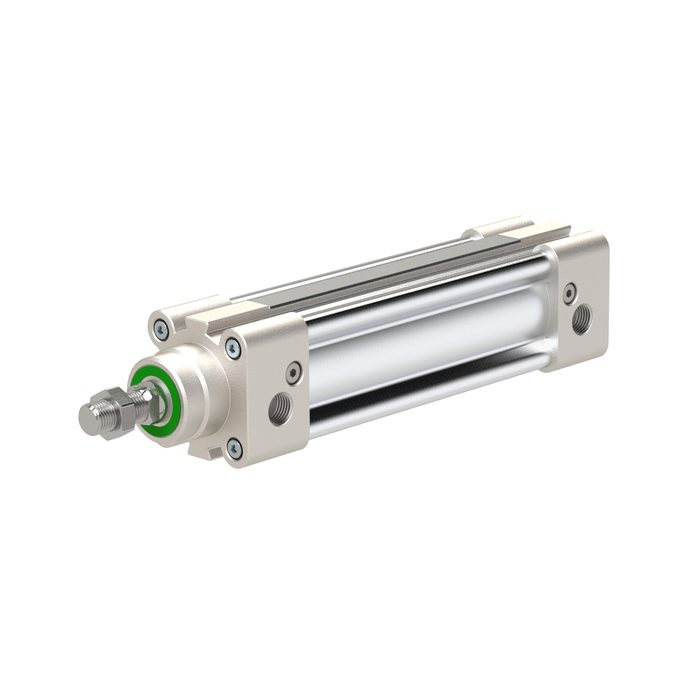

RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 25, G 3/8
Typennummer: 16.DMD.80025
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Standard cylinder SAI, ISO 15552, double-act. Solenoid, piston Ø 80, stroke 25, connection G 3/8, 1.5-10 bar, -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | SAI series |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 80 mm |
| Function | double-acting |
| Stroke | 25 mm |
| Piston rods AG | M20x1.5 |
| Piston rod Ø | 25 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[170674] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 100, G 1/2](/web/image/product.template/216266/image_128/%5B170674%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20100%2C%20G%201-2?unique=f8c2905)
|
Typennummer: 16.DMD.100100 |
190.53 € | |
![[170675] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 125, G 1/2](/web/image/product.template/216267/image_128/%5B170675%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20125%2C%20G%201-2?unique=b0e6114)
|
Typennummer: 16.DMD.100125 |
195.40 € | |
![[170676] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 150, G 1/2](/web/image/product.template/216268/image_128/%5B170676%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20150%2C%20G%201-2?unique=c7100da)
|
Typennummer: 16.DMD.100150 |
201.05 € | |
![[170677] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 160, G 1/2](/web/image/product.template/216269/image_128/%5B170677%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20160%2C%20G%201-2?unique=bd1fad6)
|
Typennummer: 16.DMD.100160 |
205.48 € | |
![[170678] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 175, G 1/2](/web/image/product.template/216270/image_128/%5B170678%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20175%2C%20G%201-2?unique=6f27038)
|
Typennummer: 16.DMD.100175 |
208.86 € | |
![[170679] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 200, G 1/2](/web/image/product.template/216271/image_128/%5B170679%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20200%2C%20G%201-2?unique=85c1189)
|
Typennummer: 16.DMD.100200 |
210.36 € | |
![[170680] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 250, G 1/2](/web/image/product.template/216272/image_128/%5B170680%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20250%2C%20G%201-2?unique=3c3cc6b)
|
Typennummer: 16.DMD.100250 |
220.34 € | |
![[170670] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 25, G 1/2](/web/image/product.template/216262/image_128/%5B170670%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%2025%2C%20G%201-2?unique=aeffb6f)
|
Typennummer: 16.DMD.100025 |
175.32 € | |
![[170681] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 300, G 1/2](/web/image/product.template/216273/image_128/%5B170681%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20300%2C%20G%201-2?unique=e1996a0)
|
Typennummer: 16.DMD.100300 |
227.49 € | |
![[170682] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 350, G 1/2](/web/image/product.template/216274/image_128/%5B170682%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20350%2C%20G%201-2?unique=81d7c42)
|
Typennummer: 16.DMD.100350 |
239.20 € | |
![[170683] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 400, G 1/2](/web/image/product.template/216275/image_128/%5B170683%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20400%2C%20G%201-2?unique=6189d66)
|
Typennummer: 16.DMD.100400 |
250.27 € | |
![[170684] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 450, G 1/2](/web/image/product.template/216276/image_128/%5B170684%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20450%2C%20G%201-2?unique=aea9853)
|
Typennummer: 16.DMD.100450 |
259.91 € | |
![[170685] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 500, G 1/2](/web/image/product.template/216277/image_128/%5B170685%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20500%2C%20G%201-2?unique=354423a)
|
Typennummer: 16.DMD.100500 |
270.13 € | |
![[170671] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 50, G 1/2](/web/image/product.template/216263/image_128/%5B170671%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%2050%2C%20G%201-2?unique=621e3c6)
|
Typennummer: 16.DMD.100050 |
180.44 € | |
![[170686] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 600, G 1/2](/web/image/product.template/216278/image_128/%5B170686%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20600%2C%20G%201-2?unique=6f052d9)
|
Typennummer: 16.DMD.100600 |
290.28 € | |
![[170687] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 700, G 1/2](/web/image/product.template/216279/image_128/%5B170687%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20700%2C%20G%201-2?unique=9c4b0cd)
|
Typennummer: 16.DMD.100700 |
307.44 € | |
![[170672] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 75, G 1/2](/web/image/product.template/216264/image_128/%5B170672%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%2075%2C%20G%201-2?unique=664573c)
|
Typennummer: 16.DMD.100075 |
182.72 € | |
![[170688] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 800, G 1/2](/web/image/product.template/216280/image_128/%5B170688%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20800%2C%20G%201-2?unique=0f64963)
|
Typennummer: 16.DMD.100800 |
329.64 € | |
![[170673] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 80, G 1/2](/web/image/product.template/216265/image_128/%5B170673%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%2080%2C%20G%201-2?unique=c79002d)
|
Typennummer: 16.DMD.100080 |
186.29 € | |
![[170689] RIEGLER Standard cylinder, double-acting, Piston Ø 100, Stroke 900, G 1/2](/web/image/product.template/216281/image_128/%5B170689%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20100%2C%20Stroke%20900%2C%20G%201-2?unique=42028e3)
|
Typennummer: 16.DMD.100900 |
349.61 € | |
![[170694] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 100, G 1/2](/web/image/product.template/216286/image_128/%5B170694%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20100%2C%20G%201-2?unique=195b355)
|
Typennummer: 16.DMD.125100 |
280.42 € | |
![[170695] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 125, G 1/2](/web/image/product.template/216287/image_128/%5B170695%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20125%2C%20G%201-2?unique=d8c4f54)
|
Typennummer: 16.DMD.125125 |
283.55 € | |
![[170696] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 150, G 1/2](/web/image/product.template/216288/image_128/%5B170696%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20150%2C%20G%201-2?unique=7416353)
|
Typennummer: 16.DMD.125150 |
290.84 € | |
![[170697] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 160, G 1/2](/web/image/product.template/216289/image_128/%5B170697%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20160%2C%20G%201-2?unique=eed3a1c)
|
Typennummer: 16.DMD.125160 |
298.54 € | |
![[170698] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 175, G 1/2](/web/image/product.template/216290/image_128/%5B170698%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20175%2C%20G%201-2?unique=260dac9)
|
Typennummer: 16.DMD.125175 |
303.07 € | |
![[170699] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 200, G 1/2](/web/image/product.template/216291/image_128/%5B170699%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20200%2C%20G%201-2?unique=b3de8ca)
|
Typennummer: 16.DMD.125200 |
306.02 € | |
![[170700] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 250, G 1/2](/web/image/product.template/216292/image_128/%5B170700%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20250%2C%20G%201-2?unique=0fdde62)
|
Typennummer: 16.DMD.125250 |
321.17 € | |
![[170690] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 25, G 1/2](/web/image/product.template/216282/image_128/%5B170690%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%2025%2C%20G%201-2?unique=582b30e)
|
Typennummer: 16.DMD.125025 |
253.29 € | |
![[170701] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 300, G 1/2](/web/image/product.template/216293/image_128/%5B170701%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20300%2C%20G%201-2?unique=085c1d1)
|
Typennummer: 16.DMD.125300 |
333.76 € | |
![[170702] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 350, G 1/2](/web/image/product.template/216294/image_128/%5B170702%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20350%2C%20G%201-2?unique=4c30493)
|
Typennummer: 16.DMD.125350 |
349.81 € | |
![[170703] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 400, G 1/2](/web/image/product.template/216295/image_128/%5B170703%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20400%2C%20G%201-2?unique=8b2ff24)
|
Typennummer: 16.DMD.125400 |
366.41 € | |
![[170704] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 450, G 1/2](/web/image/product.template/216296/image_128/%5B170704%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20450%2C%20G%201-2?unique=614774f)
|
Typennummer: 16.DMD.125450 |
380.26 € | |
![[170705] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 500, G 1/2](/web/image/product.template/216297/image_128/%5B170705%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20500%2C%20G%201-2?unique=1c5e9fd)
|
Typennummer: 16.DMD.125500 |
396.45 € | |
![[170691] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 50, G 1/2](/web/image/product.template/216283/image_128/%5B170691%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%2050%2C%20G%201-2?unique=786c793)
|
Typennummer: 16.DMD.125050 |
260.90 € | |
![[170706] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 600, G 1/2](/web/image/product.template/216298/image_128/%5B170706%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20600%2C%20G%201-2?unique=e4bda17)
|
Typennummer: 16.DMD.125600 |
426.59 € | |
![[170707] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 700, G 1/2](/web/image/product.template/216299/image_128/%5B170707%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20700%2C%20G%201-2?unique=6469bb6)
|
Typennummer: 16.DMD.125700 |
457.52 € | |
![[170692] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 75, G 1/2](/web/image/product.template/216284/image_128/%5B170692%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%2075%2C%20G%201-2?unique=d3d4765)
|
Typennummer: 16.DMD.125075 |
268.27 € | |
![[170708] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 800, G 1/2](/web/image/product.template/216300/image_128/%5B170708%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20800%2C%20G%201-2?unique=a954249)
|
Typennummer: 16.DMD.125800 |
486.66 € | |
![[170693] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 80, G 1/2](/web/image/product.template/216285/image_128/%5B170693%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%2080%2C%20G%201-2?unique=f52a2cb)
|
Typennummer: 16.DMD.125080 |
275.97 € | |
![[170709] RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 900, G 1/2](/web/image/product.template/216301/image_128/%5B170709%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%20125%2C%20Stroke%20900%2C%20G%201-2?unique=ffe4fde)
|
Typennummer: 16.DMD.125900 |
521.03 € | |
![[170576] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 100, G 1/8](/web/image/product.template/216168/image_128/%5B170576%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20100%2C%20G%201-8?unique=b336e3d)
|
Typennummer: 16.DMD.32100 |
62.13 € | |
![[170577] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 125, G 1/8](/web/image/product.template/216169/image_128/%5B170577%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20125%2C%20G%201-8?unique=336d2ab)
|
Typennummer: 16.DMD.32125 |
63.87 € | |
![[170578] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 150 G 1/8](/web/image/product.template/216170/image_128/%5B170578%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20150%20G%201-8?unique=05243ec)
|
Typennummer: 16.DMD.32150 |
65.49 € | |
![[170579] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 160, G 1/8](/web/image/product.template/216171/image_128/%5B170579%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20160%2C%20G%201-8?unique=5f3d28b)
|
Typennummer: 16.DMD.32160 |
67.01 € | |
![[170580] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 175, G 1/8](/web/image/product.template/216172/image_128/%5B170580%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20175%2C%20G%201-8?unique=0f25ae2)
|
Typennummer: 16.DMD.32175 |
67.78 € | |
![[170581] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 200, G 1/8](/web/image/product.template/216173/image_128/%5B170581%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20200%2C%20G%201-8?unique=afd67a2)
|
Typennummer: 16.DMD.32200 |
68.64 € | |
![[170582] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 250, G 1/8](/web/image/product.template/216174/image_128/%5B170582%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20250%2C%20G%201-8?unique=4e2a2ef)
|
Typennummer: 16.DMD.32250 |
73.96 € | |
![[170572] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 25, G 1/8](/web/image/product.template/216164/image_128/%5B170572%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2025%2C%20G%201-8?unique=c6e8516)
|
Typennummer: 16.DMD.32025 |
57.26 € | |
![[170583] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 300, G 1/8](/web/image/product.template/216175/image_128/%5B170583%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20300%2C%20G%201-8?unique=259e4ab)
|
Typennummer: 16.DMD.32300 |
76.31 € | |
![[170584] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 350, G 1/8](/web/image/product.template/216176/image_128/%5B170584%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20350%2C%20G%201-8?unique=ab19ffc)
|
Typennummer: 16.DMD.32350 |
78.93 € | |
![[170585] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 400, G 1/8](/web/image/product.template/216177/image_128/%5B170585%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20400%2C%20G%201-8?unique=d1ad449)
|
Typennummer: 16.DMD.32400 |
81.54 € | |
![[170586] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 450, G 1/8](/web/image/product.template/216178/image_128/%5B170586%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20450%2C%20G%201-8?unique=9d64306)
|
Typennummer: 16.DMD.32450 |
84.79 € | |
![[170587] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 500, G 1/8](/web/image/product.template/216179/image_128/%5B170587%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%20500%2C%20G%201-8?unique=dde4a96)
|
Typennummer: 16.DMD.32500 |
88.05 € | |
![[170573] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 50, G 1/8](/web/image/product.template/216165/image_128/%5B170573%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2050%2C%20G%201-8?unique=21eb2ad)
|
Typennummer: 16.DMD.32050 |
58.99 € | |
![[170574] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 75, G 1/8](/web/image/product.template/216166/image_128/%5B170574%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2075%2C%20G%201-8?unique=8c3dc22)
|
Typennummer: 16.DMD.32075 |
60.63 € | |
![[170575] RIEGLER Standard cylinder, double-acting, Piston Ø 32, Stroke 80, G 1/8](/web/image/product.template/216167/image_128/%5B170575%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2032%2C%20Stroke%2080%2C%20G%201-8?unique=2fbbd78)
|
Typennummer: 16.DMD.32080 |
62.13 € | |
![[170592] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 100, G 1/4](/web/image/product.template/216184/image_128/%5B170592%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20100%2C%20G%201-4?unique=3a00a7a)
|
Typennummer: 16.DMD.40100 |
72.34 € | |
![[170593] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 125, G 1/4](/web/image/product.template/216185/image_128/%5B170593%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20125%2C%20G%201-4?unique=0890f0f)
|
Typennummer: 16.DMD.40125 |
74.48 € | |
![[170594] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 150, G 1/4](/web/image/product.template/216186/image_128/%5B170594%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20150%2C%20G%201-4?unique=8a44533)
|
Typennummer: 16.DMD.40150 |
76.45 € | |
![[170595] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 160, G 1/4](/web/image/product.template/216187/image_128/%5B170595%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20160%2C%20G%201-4?unique=488a1ac)
|
Typennummer: 16.DMD.40160 |
78.62 € | |
![[170596] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 175, G 1/4](/web/image/product.template/216188/image_128/%5B170596%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20175%2C%20G%201-4?unique=82269c1)
|
Typennummer: 16.DMD.40175 |
79.69 € | |
![[170597] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 200, G 1/4](/web/image/product.template/216189/image_128/%5B170597%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20200%2C%20G%201-4?unique=a7a7b65)
|
Typennummer: 16.DMD.40200 |
80.68 € | |
![[170598] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 250, G 1/4](/web/image/product.template/216190/image_128/%5B170598%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20250%2C%20G%201-4?unique=4047283)
|
Typennummer: 16.DMD.40250 |
84.59 € | |
![[170588] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 25, G 1/4](/web/image/product.template/216180/image_128/%5B170588%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2025%2C%20G%201-4?unique=9d4b59f)
|
Typennummer: 16.DMD.40025 |
66.15 € | |
![[170599] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 300, G 1/4](/web/image/product.template/216191/image_128/%5B170599%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20300%2C%20G%201-4?unique=499dd87)
|
Typennummer: 16.DMD.40300 |
90.11 € | |
![[170600] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 350, G 1/4](/web/image/product.template/216192/image_128/%5B170600%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20350%2C%20G%201-4?unique=35fdea5)
|
Typennummer: 16.DMD.40350 |
93.69 € | |
![[170601] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 400, G 1/4](/web/image/product.template/216193/image_128/%5B170601%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20400%2C%20G%201-4?unique=bac95f3)
|
Typennummer: 16.DMD.40400 |
97.06 € | |
![[170602] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 450, G 1/4](/web/image/product.template/216194/image_128/%5B170602%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20450%2C%20G%201-4?unique=cb93127)
|
Typennummer: 16.DMD.40450 |
101.05 € | |
![[170603] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 500, G 1/4](/web/image/product.template/216195/image_128/%5B170603%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20500%2C%20G%201-4?unique=dca8d48)
|
Typennummer: 16.DMD.40500 |
105.18 € | |
![[170589] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 50, G 1/4](/web/image/product.template/216181/image_128/%5B170589%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2050%2C%20G%201-4?unique=fb40e26)
|
Typennummer: 16.DMD.40050 |
68.32 € | |
![[170604] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 600, G 1/4](/web/image/product.template/216196/image_128/%5B170604%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20600%2C%20G%201-4?unique=cb2cf86)
|
Typennummer: 16.DMD.40600 |
113.53 € | |
![[170605] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 700, G 1/4](/web/image/product.template/216197/image_128/%5B170605%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20700%2C%20G%201-4?unique=bdf63e6)
|
Typennummer: 16.DMD.40700 |
119.81 € | |
![[170590] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 75, G 1/4](/web/image/product.template/216182/image_128/%5B170590%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2075%2C%20G%201-4?unique=e6e0c82)
|
Typennummer: 16.DMD.40075 |
70.36 € | |
![[170606] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 800, G 1/4](/web/image/product.template/216198/image_128/%5B170606%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%20800%2C%20G%201-4?unique=4db28f8)
|
Typennummer: 16.DMD.40800 |
127.52 € | |
![[170591] RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 80, G 1/4](/web/image/product.template/216183/image_128/%5B170591%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2040%2C%20Stroke%2080%2C%20G%201-4?unique=67931fa)
|
Typennummer: 16.DMD.40080 |
72.34 € | |
![[170627] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 1000, G 1/4](/web/image/product.template/216219/image_128/%5B170627%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%201000%2C%20G%201-4?unique=0069686)
|
Typennummer: 16.DMD.501000 |
176.20 € | |
![[170611] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 100, G 1/4](/web/image/product.template/216203/image_128/%5B170611%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20100%2C%20G%201-4?unique=169e5a5)
|
Typennummer: 16.DMD.50100 |
84.48 € | |
![[170612] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 125, G 1/4](/web/image/product.template/216204/image_128/%5B170612%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20125%2C%20G%201-4?unique=a9704c5)
|
Typennummer: 16.DMD.50125 |
87.17 € | |
![[170613] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 150, G 1/4](/web/image/product.template/216205/image_128/%5B170613%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20150%2C%20G%201-4?unique=db1e047)
|
Typennummer: 16.DMD.50150 |
89.90 € | |
![[170614] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 160, G 1/4](/web/image/product.template/216206/image_128/%5B170614%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20160%2C%20G%201-4?unique=fee0632)
|
Typennummer: 16.DMD.50160 |
92.28 € | |
![[170615] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 175, G 1/4](/web/image/product.template/216207/image_128/%5B170615%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20175%2C%20G%201-4?unique=d3e21c9)
|
Typennummer: 16.DMD.50175 |
93.78 € | |
![[170616] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 200, G 1/4](/web/image/product.template/216208/image_128/%5B170616%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20200%2C%20G%201-4?unique=415c88b)
|
Typennummer: 16.DMD.50200 |
94.77 € | |
![[170617] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 250, G 1/4](/web/image/product.template/216209/image_128/%5B170617%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20250%2C%20G%201-4?unique=1ee0a25)
|
Typennummer: 16.DMD.50250 |
99.86 € | |
![[170607] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 25, G 1/4](/web/image/product.template/216199/image_128/%5B170607%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2025%2C%20G%201-4?unique=11a1a7e)
|
Typennummer: 16.DMD.50025 |
76.98 € | |
![[170618] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 300, G 1/4](/web/image/product.template/216210/image_128/%5B170618%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20300%2C%20G%201-4?unique=d5bdb66)
|
Typennummer: 16.DMD.50300 |
104.96 € | |
![[170619] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 350, G 1/4](/web/image/product.template/216211/image_128/%5B170619%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20350%2C%20G%201-4?unique=8e057a8)
|
Typennummer: 16.DMD.50350 |
109.19 € | |
![[170620] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 400, G 1/4](/web/image/product.template/216212/image_128/%5B170620%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20400%2C%20G%201-4?unique=a4beaf1)
|
Typennummer: 16.DMD.50400 |
115.16 € | |
![[170621] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 450, G 1/4](/web/image/product.template/216213/image_128/%5B170621%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20450%2C%20G%201-4?unique=7dc45a0)
|
Typennummer: 16.DMD.50450 |
120.14 € | |
![[170622] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 500, G 1/4](/web/image/product.template/216214/image_128/%5B170622%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20500%2C%20G%201-4?unique=7963802)
|
Typennummer: 16.DMD.50500 |
125.34 € | |
![[170608] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 50, G 1/4](/web/image/product.template/216200/image_128/%5B170608%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2050%2C%20G%201-4?unique=deb0c45)
|
Typennummer: 16.DMD.50050 |
79.59 € | |
![[170623] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 600, G 1/4](/web/image/product.template/216215/image_128/%5B170623%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20600%2C%20G%201-4?unique=37ac271)
|
Typennummer: 16.DMD.50600 |
135.55 € | |
![[170624] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 700, G 1/4](/web/image/product.template/216216/image_128/%5B170624%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20700%2C%20G%201-4?unique=e1415bd)
|
Typennummer: 16.DMD.50700 |
145.51 € | |
![[170609] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 75, G 1/4](/web/image/product.template/216201/image_128/%5B170609%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2075%2C%20G%201-4?unique=31c9a8b)
|
Typennummer: 16.DMD.50075 |
81.98 € | |
![[170625] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 800, G 1/4](/web/image/product.template/216217/image_128/%5B170625%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20800%2C%20G%201-4?unique=0f1e30e)
|
Typennummer: 16.DMD.50800 |
155.83 € | |
![[170610] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 80, G 1/4](/web/image/product.template/216202/image_128/%5B170610%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2080%2C%20G%201-4?unique=b98e653)
|
Typennummer: 16.DMD.50080 |
84.48 € | |
![[170626] RIEGLER Standard cylinder, double-acting, Piston Ø 50, Stroke 900, G 1/4](/web/image/product.template/216218/image_128/%5B170626%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%20900%2C%20G%201-4?unique=b7dc835)
|
Typennummer: 16.DMD.50900 |
165.26 € | |
![[170648] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 1000, G 3/8](/web/image/product.template/216240/image_128/%5B170648%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%201000%2C%20G%203-8?unique=d644e53)
|
Typennummer: 16.DMD.631000 |
221.10 € | |
![[170632] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 100, G 3/8](/web/image/product.template/216224/image_128/%5B170632%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20100%2C%20G%203-8?unique=49d4dd0)
|
Typennummer: 16.DMD.63100 |
105.95 € | |
![[170633] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 125, G 3/8](/web/image/product.template/216225/image_128/%5B170633%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20125%2C%20G%203-8?unique=a62f966)
|
Typennummer: 16.DMD.63125 |
109.19 € | |
![[170634] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 150, G 3/8](/web/image/product.template/216226/image_128/%5B170634%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20150%2C%20G%203-8?unique=a78acbd)
|
Typennummer: 16.DMD.63150 |
112.23 € | |
![[170635] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 160, G 3/8](/web/image/product.template/216227/image_128/%5B170635%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20160%2C%20G%203-8?unique=3826e7b)
|
Typennummer: 16.DMD.63160 |
115.25 € | |
![[170636] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 175, G 3/8](/web/image/product.template/216228/image_128/%5B170636%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20175%2C%20G%203-8?unique=1df5b82)
|
Typennummer: 16.DMD.63175 |
116.89 € | |
![[170637] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 200, G 3/8](/web/image/product.template/216229/image_128/%5B170637%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20200%2C%20G%203-8?unique=545ddf2)
|
Typennummer: 16.DMD.63200 |
118.29 € | |
![[170638] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 250, G 3/8](/web/image/product.template/216230/image_128/%5B170638%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20250%2C%20G%203-8?unique=912ab4c)
|
Typennummer: 16.DMD.63250 |
124.37 € | |
![[170628] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 25, G 3/8](/web/image/product.template/216220/image_128/%5B170628%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2025%2C%20G%203-8?unique=0b29a5d)
|
Typennummer: 16.DMD.63025 |
97.06 € | |
![[170639] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 300, G 3/8](/web/image/product.template/216231/image_128/%5B170639%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20300%2C%20G%203-8?unique=95c3530)
|
Typennummer: 16.DMD.63300 |
129.90 € | |
![[170640] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 350, G 3/8](/web/image/product.template/216232/image_128/%5B170640%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20350%2C%20G%203-8?unique=ba5f1ba)
|
Typennummer: 16.DMD.63350 |
137.05 € | |
![[170641] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 400, G 3/8](/web/image/product.template/216233/image_128/%5B170641%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20400%2C%20G%203-8?unique=68bc89f)
|
Typennummer: 16.DMD.63400 |
142.48 € | |
![[170642] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 450, G 3/8](/web/image/product.template/216234/image_128/%5B170642%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20450%2C%20G%203-8?unique=de34682)
|
Typennummer: 16.DMD.63450 |
147.69 € | |
![[170643] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 500, G 3/8](/web/image/product.template/216235/image_128/%5B170643%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20500%2C%20G%203-8?unique=645b5fe)
|
Typennummer: 16.DMD.63500 |
154.64 € | |
![[170629] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 50, G 3/8](/web/image/product.template/216221/image_128/%5B170629%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2050%2C%20G%203-8?unique=5f17d0f)
|
Typennummer: 16.DMD.63050 |
100.09 € | |
![[170644] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 600, G 3/8](/web/image/product.template/216236/image_128/%5B170644%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20600%2C%20G%203-8?unique=5bfd567)
|
Typennummer: 16.DMD.63600 |
166.75 € | |
![[170645] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 700, G 3/8](/web/image/product.template/216237/image_128/%5B170645%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20700%2C%20G%203-8?unique=f36546f)
|
Typennummer: 16.DMD.63700 |
176.08 € | |
![[170630] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 75, G 3/8](/web/image/product.template/216222/image_128/%5B170630%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2075%2C%20G%203-8?unique=28dad70)
|
Typennummer: 16.DMD.63075 |
102.69 € | |
![[170646] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 800, G 3/8](/web/image/product.template/216238/image_128/%5B170646%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20800%2C%20G%203-8?unique=01130ef)
|
Typennummer: 16.DMD.63800 |
190.96 € | |
![[170631] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 80, G 3/8](/web/image/product.template/216223/image_128/%5B170631%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2080%2C%20G%203-8?unique=34dc333)
|
Typennummer: 16.DMD.63080 |
105.95 € | |
![[170647] RIEGLER Standard cylinder, double-acting, Piston Ø 63, Stroke 900, G 3/8](/web/image/product.template/216239/image_128/%5B170647%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%20900%2C%20G%203-8?unique=e138ae4)
|
Typennummer: 16.DMD.63900 |
205.92 € | |
![[170669] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 1000, G 3/8](/web/image/product.template/216261/image_128/%5B170669%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%201000%2C%20G%203-8?unique=3e249c1)
|
Typennummer: 16.DMD.801000 |
292.99 € | |
![[170653] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 100, G 3/8](/web/image/product.template/216245/image_128/%5B170653%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20100%2C%20G%203-8?unique=eb1143e)
|
Typennummer: 16.DMD.80100 |
138.80 € | |
![[170654] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 125, G 3/8](/web/image/product.template/216246/image_128/%5B170654%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20125%2C%20G%203-8?unique=90ed3c0)
|
Typennummer: 16.DMD.80125 |
142.91 € | |
![[170655] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 150, G 3/8](/web/image/product.template/216247/image_128/%5B170655%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20150%2C%20G%203-8?unique=e078c02)
|
Typennummer: 16.DMD.80150 |
146.27 € | |
![[170656] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 160, G 3/8](/web/image/product.template/216248/image_128/%5B170656%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20160%2C%20G%203-8?unique=1e1c08a)
|
Typennummer: 16.DMD.80160 |
150.83 € | |
![[170657] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 175, G 3/8](/web/image/product.template/216249/image_128/%5B170657%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20175%2C%20G%203-8?unique=7fa30be)
|
Typennummer: 16.DMD.80175 |
153.55 € | |
![[170658] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 200, G 3/8](/web/image/product.template/216250/image_128/%5B170658%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20200%2C%20G%203-8?unique=cea468c)
|
Typennummer: 16.DMD.80200 |
154.85 € | |
![[170659] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 250, G 3/8](/web/image/product.template/216251/image_128/%5B170659%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20250%2C%20G%203-8?unique=c71618e)
|
Typennummer: 16.DMD.80250 |
162.88 € | |
![[170660] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 300, G 3/8](/web/image/product.template/216252/image_128/%5B170660%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20300%2C%20G%203-8?unique=9ada34d)
|
Typennummer: 16.DMD.80300 |
171.09 € | |
![[170661] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 350, G 3/8](/web/image/product.template/216253/image_128/%5B170661%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20350%2C%20G%203-8?unique=ee8854d)
|
Typennummer: 16.DMD.80350 |
177.18 € | |
![[170662] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 400, G 3/8](/web/image/product.template/216254/image_128/%5B170662%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20400%2C%20G%203-8?unique=9f102d4)
|
Typennummer: 16.DMD.80400 |
187.06 € | |
![[170663] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 450, G 3/8](/web/image/product.template/216255/image_128/%5B170663%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20450%2C%20G%203-8?unique=ccf9e17)
|
Typennummer: 16.DMD.80450 |
194.10 € | |
![[170664] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 500, G 3/8](/web/image/product.template/216256/image_128/%5B170664%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20500%2C%20G%203-8?unique=250e868)
|
Typennummer: 16.DMD.80500 |
202.98 € | |
![[170650] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 50, G 3/8](/web/image/product.template/216242/image_128/%5B170650%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2050%2C%20G%203-8?unique=5cf1111)
|
Typennummer: 16.DMD.80050 |
130.77 € | |
![[170665] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 600, G 3/8](/web/image/product.template/216257/image_128/%5B170665%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20600%2C%20G%203-8?unique=ca78c3d)
|
Typennummer: 16.DMD.80600 |
219.04 € | |
![[170666] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 700, G 3/8](/web/image/product.template/216258/image_128/%5B170666%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20700%2C%20G%203-8?unique=52ba44f)
|
Typennummer: 16.DMD.80700 |
235.52 € | |
![[170651] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 75, G 3/8](/web/image/product.template/216243/image_128/%5B170651%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2075%2C%20G%203-8?unique=894754b)
|
Typennummer: 16.DMD.80075 |
134.67 € | |
![[170667] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 800, G 3/8](/web/image/product.template/216259/image_128/%5B170667%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20800%2C%20G%203-8?unique=2487bca)
|
Typennummer: 16.DMD.80800 |
251.14 € | |
![[170652] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 80, G 3/8](/web/image/product.template/216244/image_128/%5B170652%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%2080%2C%20G%203-8?unique=e6f6c21)
|
Typennummer: 16.DMD.80080 |
138.80 € | |
![[170668] RIEGLER Standard cylinder, double-acting, Piston Ø 80, Stroke 900, G 3/8](/web/image/product.template/216260/image_128/%5B170668%5D%20RIEGLER%20Standard%20cylinder%2C%20double-acting%2C%20Piston%20%C3%98%2080%2C%20Stroke%20900%2C%20G%203-8?unique=180715b)
|
Typennummer: 16.DMD.80900 |
271.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115534] RIEGLER Sensor, »CS1« type, REED sensor, 2-wire, 3 m cable, NO](/web/image/product.template/200293/image_128/%5B115534%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20REED%20sensor%2C%202-wire%2C%203%20m%20cable%2C%20NO?unique=9c5658f)
|
Type number: 235.201 |
12.47 € | |
![[115535] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200294/image_128/%5B115535%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=cecdc50)
|
Type number: 235.202 |
26.76 € | |
![[115536] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, NPN](/web/image/product.template/200295/image_128/%5B115536%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20NPN?unique=77b5d7e)
|
Type number: 235.203 |
24.29 € | |
![[115537] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, Plug M8, 150 mm cable](/web/image/product.template/200296/image_128/%5B115537%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%20Plug%20M8%2C%20150%20mm%20cable?unique=7892488)
|
Type number: 235.204 |
26.76 € | |
![[115538] RIEGLER Sensor, »CS1« type, HALL sensor, 3-wire, 3 m cable, NO, PNP](/web/image/product.template/200297/image_128/%5B115538%5D%20RIEGLER%20Sensor%2C%20%C2%BBCS1%C2%AB%20type%2C%20HALL%20sensor%2C%203-wire%2C%203%20m%20cable%2C%20NO%2C%20PNP?unique=7e015bf)
|
Type number: 235.205 |
24.29 € | |
![[115755] RIEGLER Foot fastening, »LB« for standard cylinder »SE«,»SAI«, pistonØ80](/web/image/product.template/200490/image_128/%5B115755%5D%20RIEGLER%20Foot%20fastening%2C%20%C2%BBLB%C2%AB%20for%20standard%20cylinder%20%C2%BBSE%C2%AB%2C%C2%BBSAI%C2%AB%2C%20piston%C3%9880?unique=0e4569e)
|
Type number: 437.104 |
6.39 € | |
![[115762] RIEGLER Pivoting bearing block »TF« for standard cyl., for piston Ø63-80](/web/image/product.template/200497/image_128/%5B115762%5D%20RIEGLER%20Pivoting%20bearing%20block%20%C2%BBTF%C2%AB%20for%20standard%20cyl.%2C%20for%20piston%20%C3%9863-80?unique=ad62463)
|
Type number: 437.112 |
29.61 € | |
![[115768] RIEGLER Counter bearing »CR« for standard cylinder »SE«,»SAI«, pistonØ80](/web/image/product.template/200503/image_128/%5B115768%5D%20RIEGLER%20Counter%20bearing%20%C2%BBCR%C2%AB%20for%20standard%20cylinder%20%C2%BBSE%C2%AB%2C%C2%BBSAI%C2%AB%2C%20piston%C3%9880?unique=198b7a6)
|
Type number: 437.124 |
15.28 € | |
![[115776] RIEGLER Trunnion mounting »CA« for standard cylinder, for piston Ø 80](/web/image/product.template/200511/image_128/%5B115776%5D%20RIEGLER%20Trunnion%20mounting%20%C2%BBCA%C2%AB%20for%20standard%20cylinder%2C%20for%20piston%20%C3%98%2080?unique=785de7a)
|
Type number: 437.134 |
19.19 € | |
![[115783] RIEGLER Flange fastening »FA« for standard cylinder »SE«,»SAI«,pistonØ80](/web/image/product.template/200518/image_128/%5B115783%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20standard%20cylinder%20%C2%BBSE%C2%AB%2C%C2%BBSAI%C2%AB%2Cpiston%C3%9880?unique=7a53431)
|
Type number: 437.144 |
14.90 € | |
![[115790] RIEGLER Pivoting fork fastening »CB« for standard cyl., for piston Ø 80](/web/image/product.template/200525/image_128/%5B115790%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20standard%20cyl.%2C%20for%20piston%20%C3%98%2080?unique=23aae32)
|
Type number: 437.154 |
19.19 € | |
![[115797] RIEGLER Pivoting head mounting »FTC« for standard cyl., for piston Ø 80](/web/image/product.template/200532/image_128/%5B115797%5D%20RIEGLER%20Pivoting%20head%20mounting%20%C2%BBFTC%C2%AB%20for%20standard%20cyl.%2C%20for%20piston%20%C3%98%2080?unique=019332b)
|
Type number: 437.174 |
33.94 € | |
![[115802] RIEGLER Pivoting bearing »TM« for standard cylinder, for piston Ø 63-80](/web/image/product.template/200537/image_128/%5B115802%5D%20RIEGLER%20Pivoting%20bearing%20%C2%BBTM%C2%AB%20for%20standard%20cylinder%2C%20for%20piston%20%C3%98%2063-80?unique=69a370d)
|
Type number: 437.183 |
14.85 € | |
![[115812] RIEGLER Fork head, »Y«, Piston rod thread M20x1.5](/web/image/product.template/200546/image_128/%5B115812%5D%20RIEGLER%20Fork%20head%2C%20%C2%BBY%C2%AB%2C%20Piston%20rod%20thread%20M20x1.5?unique=9156fe5)
|
Type number: 437.213 |
19.19 € | |
![[115817] RIEGLER Joint head»UNIT«, Piston rod thread M20x1.5](/web/image/product.template/200551/image_128/%5B115817%5D%20RIEGLER%20Joint%20head%C2%BBUNIT%C2%AB%2C%20Piston%20rod%20thread%20M20x1.5?unique=d583fbd)
|
Type number: 437.223 |
21.36 € | |
![[116944] RIEGLER Sensor »CS1« REED, 2-Draht, M8, NO](/web/image/product.template/267815/image_128/%5B116944%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20REED%2C%202-Draht%2C%20M8%2C%20NO?unique=4c8f28e)
|
Type number: 235.200-1 |
14.76 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

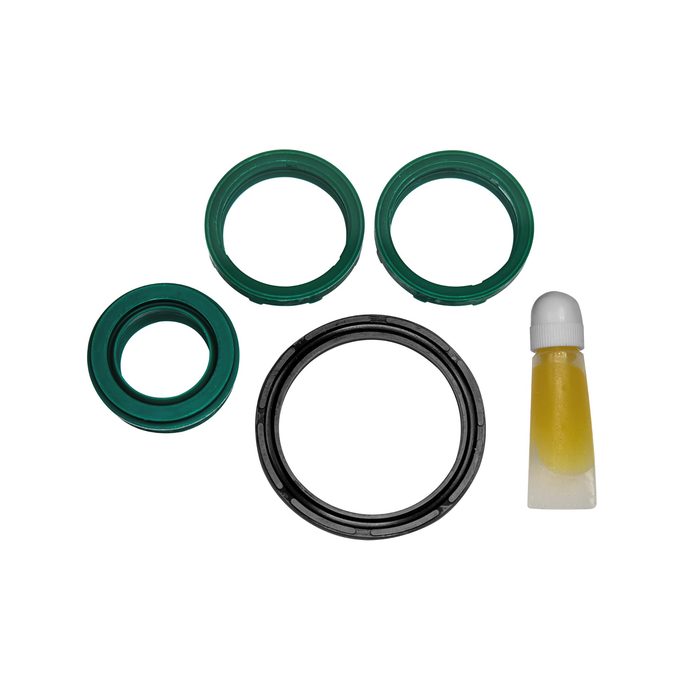

![[116866] RIEGLER Seal kit, for standard cylinder SAI, piston Ø 80, TPU/NBR](/web/image/product.template/274700/image_128/%5B116866%5D%20RIEGLER%20Seal%20kit%2C%20for%20standard%20cylinder%20SAI%2C%20piston%20%C3%98%2080%2C%20TPU-NBR?unique=3bd5275)
|
Type number: 437.164 |
6.38 € | |
