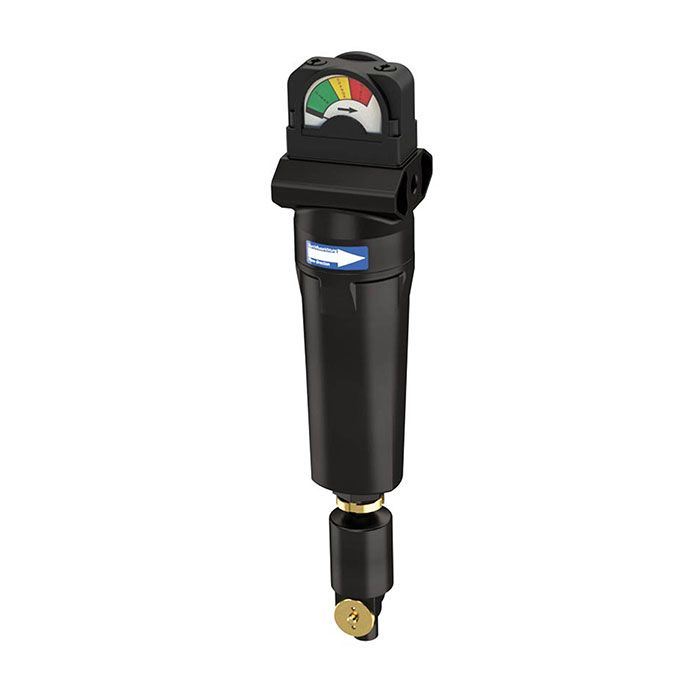

RIEGLER Microfilter G3/8 with differential pressure gauge, 0,01 µm
Typennummer: 4382122
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Microfilter made of aluminum, for compressed air treatment, G 3/8 - Type 4382122
The RIEGLER microfilter G3/8 with differential pressure gauge, 0.01 µm removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 12 bar. The permissible medium temperature is between 1.5 °C and 80 °C. Connection thread G 3/8 - suitable for common industry standards. Filter fineness 0.01 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air treatment upstream of valves, cylinders and tools.
| A | 80 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Display range of the | 2 bar |
| Display range of the | 0 bar |
| Exception | 6c |
| C | 23.5 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| D | 327 mm |
| Flow 1 | 1000 l/min |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Inlet pressure max. | 12 bar |
| Inlet pressure min. | 4 bar |
| Filter container | Aluminum |
| Filter element | Borosilicate microfiberglass fabric |
| Filter fineness | 0.01 µm |
| Housing | Aluminum |
| Thread | G 3/8 |
| Class name | PLUS |
| Medium temperature max. | 80 °C |
| Medium temperature min. | 1.5 °C |
| Particle separation | 0.01 µm |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| Residual oil content | 0.01 mg/m³ |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | 1.5 °C |
| Efficiency | 99.99 % |
