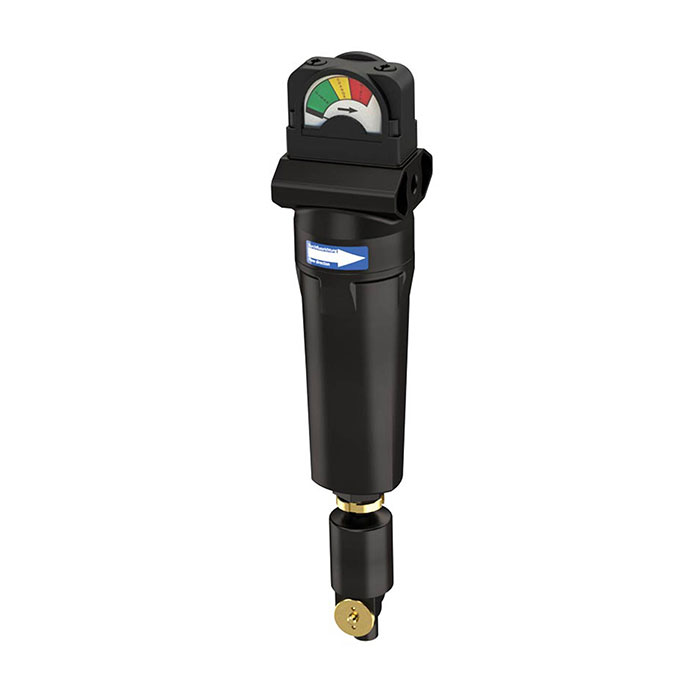

RIEGLER Microfilter G1/2 with differential pressure gauge, 0,01 µm
Typennummer: 4382132
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Microfilter with differential pressure gauge,0.01 µm,G1/2,Input pressure 4-12bar,medium/ambient temp.1.5 to 80°C,autom.drain valve
| A | 104 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Display range of the | 2 bar |
| Display range of the | 0 bar |
| Exception | 6c |
| C | 28 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| D | 399 mm |
| Flow_1 | 1500 l/min |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Inlet pressure max. | 12 bar |
| Inlet pressure min. | 4 bar |
| Filter container | Aluminum |
| Filter element | Borosilicate microfiberglass fabric |
| Filter fineness | 0.01 µm |
| Housing | Aluminum |
| Thread | G 1/2 |
| Class name | PLUS |
| Medium temperature max. | 80 °C |
| Medium temperature min. | 1.5 °C |
| Particle separation | 0.01 µm |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| Residual oil content | 0.01 mg/m³ |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | 1.5 °C |
| Efficiency | 99.99 % |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199809] RIEGLER Microfilter G1/4 with differential pressure gauge, 0,01 µm](/web/image/product.template/268040/image_128/%5B199809%5D%20RIEGLER%20Microfilter%20G1-4%20with%20differential%20pressure%20gauge%2C%200%2C01%20%C2%B5m?unique=150876c)
|
Typennummer: 4382112 |
636.21 € | |
![[199815] RIEGLER Microfilter G3/4 with differential pressure gauge, 0,01 µm](/web/image/product.template/268067/image_128/%5B199815%5D%20RIEGLER%20Microfilter%20G3-4%20with%20differential%20pressure%20gauge%2C%200%2C01%20%C2%B5m?unique=150876c)
|
Typennummer: 4382242 |
704.96 € | |
![[199811] RIEGLER Microfilter G3/8 with differential pressure gauge, 0,01 µm](/web/image/product.template/268041/image_128/%5B199811%5D%20RIEGLER%20Microfilter%20G3-8%20with%20differential%20pressure%20gauge%2C%200%2C01%20%C2%B5m?unique=a56b2e1)
|
Typennummer: 4382122 |
636.21 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116966] RIEGLER Connection set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274715/image_128/%5B116966%5D%20RIEGLER%20Connection%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=61748ac)
|
Type number: 438412 |
27.43 € | |
![[116967] RIEGLER Connection set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274716/image_128/%5B116967%5D%20RIEGLER%20Connection%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=b3a3df3)
|
Type number: 438413 |
45.48 € | |
![[116972] RIEGLER Wall mounting set for 1 filter G 1/4 to G 1/2](/web/image/product.template/274719/image_128/%5B116972%5D%20RIEGLER%20Wall%20mounting%20set%20for%201%20filter%20G%201-4%20to%20G%201-2?unique=3b0858a)
|
Type number: 438511 |
67.20 € | |
![[116974] RIEGLER Wall mounting set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274720/image_128/%5B116974%5D%20RIEGLER%20Wall%20mounting%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=bf3cd24)
|
Type number: 438512 |
81.67 € | |
![[116975] RIEGLER Wall mounting set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274721/image_128/%5B116975%5D%20RIEGLER%20Wall%20mounting%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=4f2a9db)
|
Type number: 438513 |
91.75 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101602] RIEGLER Automatic bleeder valve A, G 1/4 IT / G 1/8 ET](/web/image/product.template/169576/image_128/%5B101602%5D%20RIEGLER%20Automatic%20bleeder%20valve%20A%2C%20G%201-4%20IT%20-%20G%201-8%20ET?unique=e47dd1b)
|
Type number: 65/0-S |
67.85 € | |
![[116979] RIEGLER Differential pressure gauge for prefilters, microfilters and activated charcoal filters](/web/image/product.template/274725/image_128/%5B116979%5D%20RIEGLER%20Differential%20pressure%20gauge%20for%20prefilters%2C%20microfilters%20and%20activated%20charcoal%20filters?unique=5fb60a7)
|
Type number: 438600 |
153.22 € | |

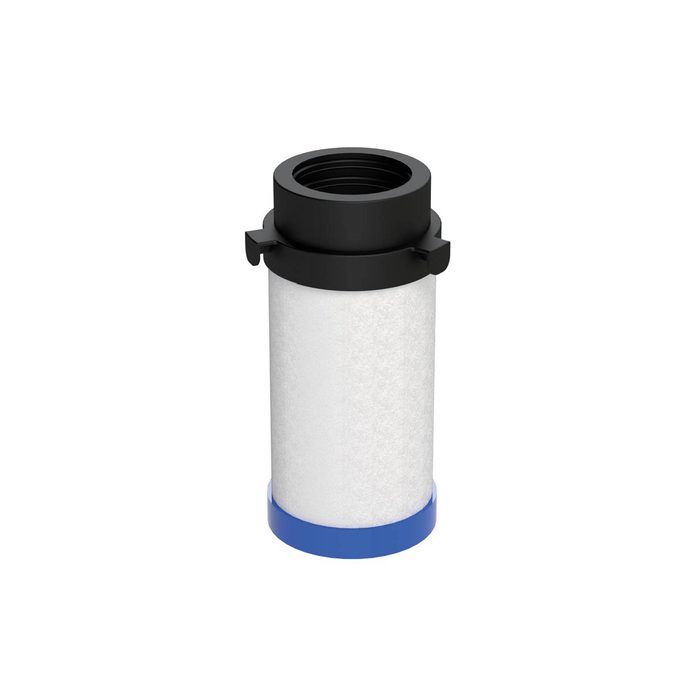

![[116994] RIEGLER Filter element for microfilter G 1/2](/web/image/product.template/274730/image_128/%5B116994%5D%20RIEGLER%20Filter%20element%20for%20microfilter%20G%201-2?unique=dfbfd96)
|
Type number: 438322 |
76.29 € | |
