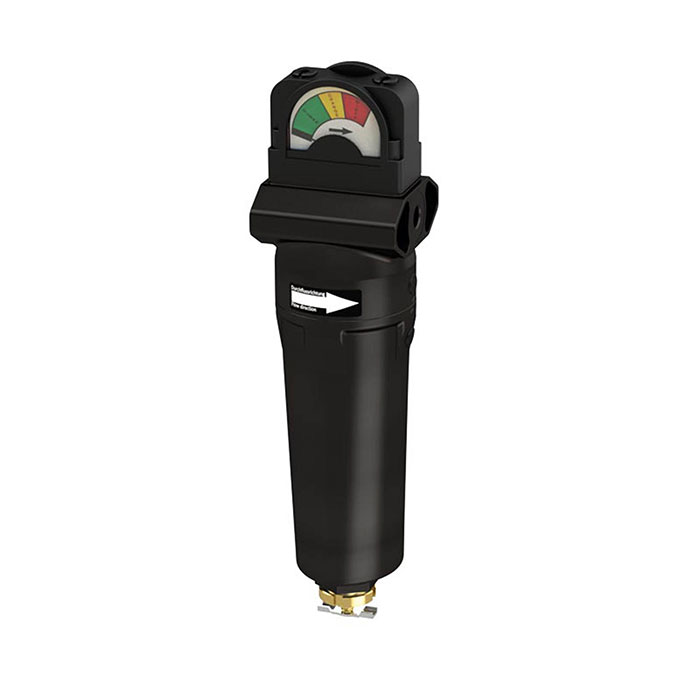

RIEGLER Activated carbon filter G1/4 with differential pressure gauge, 0.003 mg/m³
Type number: 4383112
EAN: 4047322715591
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter with differential pressure gauge, 0.003 mg/m³, G 1/4, inlet pressure 0 - 16 bar, med. ambient temp. 1.5 °C to 80 °C
| A | 80 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Display range of the | 2 bar |
| Display range of the | 0 bar |
| Exception | 6c |
| C | 23.5 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| D | 327 mm |
| Flow_1 | 583 l/min |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Inlet pressure max. | 16 bar |
| Inlet pressure min. | 0 bar |
| Filter container | Aluminum |
| Filter element | non-woven medium, impregnated with activated carbon |
| Filter fineness | 0.003 µm |
| Housing | Aluminum |
| Thread | G 1/4 |
| Class name | PLUS |
| Medium temperature max. | 80 °C |
| Medium temperature min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| Residual oil content | 0.003 mg/m³ |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | 1.5 °C |
| Efficiency | 9999.99 |
