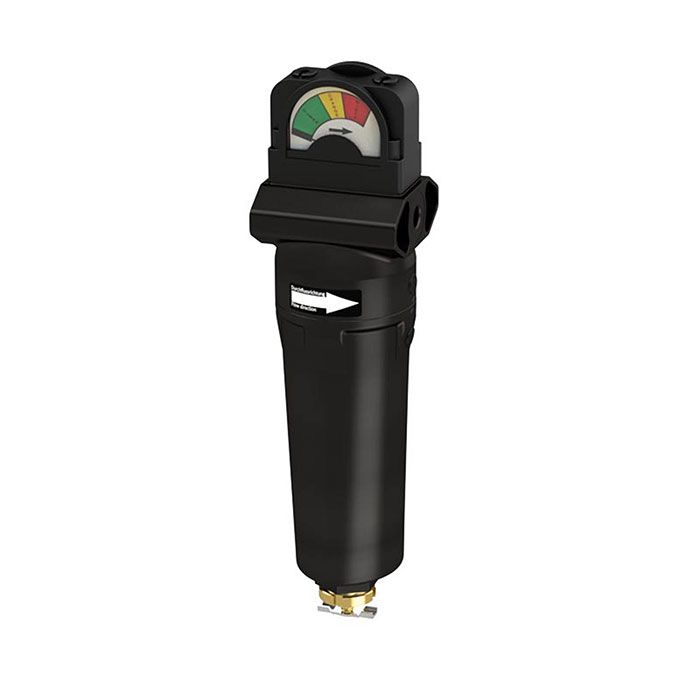

RIEGLER Activated carbon filter G3/8 with differential pressure gauge, 0.003 mg/m³
Typennummer: 4383122
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter made of aluminum, for compressed air treatment, G 3/8 - type 4383122
The RIEGLER activated carbon filter G3/8 with differential pressure gauge, 0.003 mg/m³ removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 16 bar. The permissible medium temperature is between 1.5 °C and 80 °C. Connection thread G 3/8 - suitable for common industry standards. Filter fineness 0.003 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| A | 80 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Display range of the | 2 bar |
| Display range of the | 0 bar |
| Exception | 6c |
| C | 23.5 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| D | 327 mm |
| Flow 1 | 1000 l/min |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Inlet pressure max. | 16 bar |
| Inlet pressure min. | 0 bar |
| Filter container | Aluminum |
| Filter element | non-woven medium, impregnated with activated carbon |
| Filter fineness | 0.003 µm |
| Housing | Aluminum |
| Thread | G 3/8 |
| Class name | PLUS |
| Medium temperature max. | 80 °C |
| Medium temperature min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| Residual oil content | 0.003 mg/m³ |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | 1.5 °C |
| Efficiency | 9999.99 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199821] RIEGLER Activated carbon filter G1/2 with differential pressure gauge, 0.003 mg/m³](/web/image/product.template/268028/image_128/%5B199821%5D%20RIEGLER%20Activated%20carbon%20filter%20G1-2%20with%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3?unique=23064b7)
|
Typennummer: 4383132 |
550.39 € | |
![[199817] RIEGLER Activated carbon filter G1/4 with differential pressure gauge, 0.003 mg/m³](/web/image/product.template/268026/image_128/%5B199817%5D%20RIEGLER%20Activated%20carbon%20filter%20G1-4%20with%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3?unique=23064b7)
|
Typennummer: 4383112 |
550.39 € | |
![[199823] RIEGLER Activated carbon filter G3/4 with differential pressure gauge, 0.003 mg/m³](/web/image/product.template/268033/image_128/%5B199823%5D%20RIEGLER%20Activated%20carbon%20filter%20G3-4%20with%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3?unique=23064b7)
|
Typennummer: 4383242 |
618.00 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116966] RIEGLER Connection set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274715/image_128/%5B116966%5D%20RIEGLER%20Connection%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=e32171b)
|
Type number: 438412 |
27.43 € | |
![[116967] RIEGLER Connection set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274716/image_128/%5B116967%5D%20RIEGLER%20Connection%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=8a2f7af)
|
Type number: 438413 |
45.47 € | |
![[116972] RIEGLER Wall mounting set for 1 filter G 1/4 to G 1/2](/web/image/product.template/274719/image_128/%5B116972%5D%20RIEGLER%20Wall%20mounting%20set%20for%201%20filter%20G%201-4%20to%20G%201-2?unique=af2d354)
|
Type number: 438511 |
67.20 € | |

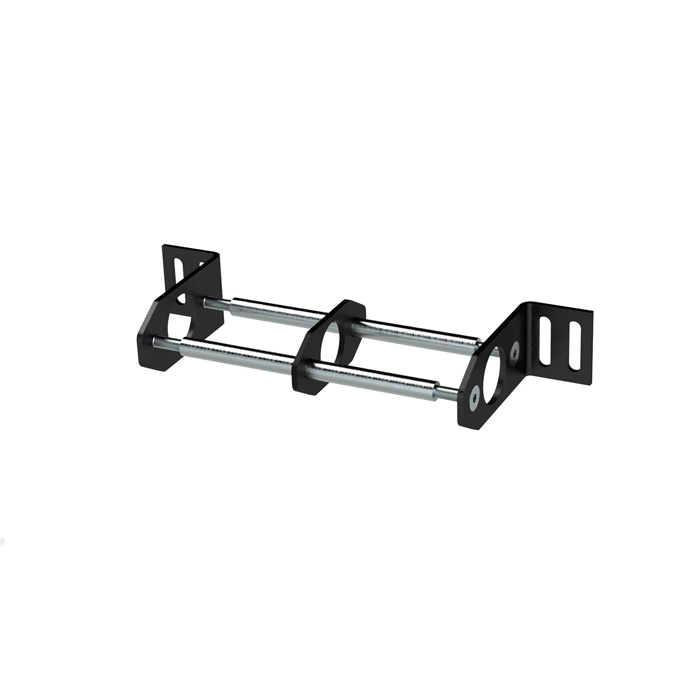

![[116974] RIEGLER Wall mounting set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274720/image_128/%5B116974%5D%20RIEGLER%20Wall%20mounting%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=ab2ce2b)
|
Type number: 438512 |
80.55 € | |

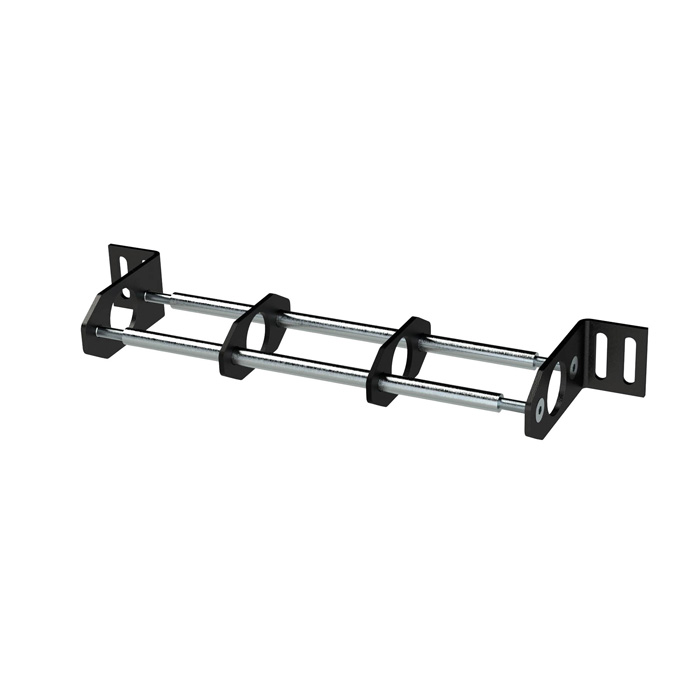

![[116975] RIEGLER Wall mounting set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274721/image_128/%5B116975%5D%20RIEGLER%20Wall%20mounting%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=9e6c705)
|
