RIEGLER Activated carbon filter G3/4 without differential pressure gauge, 0.003 mg/m³
Typennummer: 4383241
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter without differential pressure gauge, 0.003 mg/m³, G 3/4, inlet pressure 0 - 16 bar, med. ambient temp. 1.5 °C to 80 °C
| A | 104 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| C | 28 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| D | 399 mm |
| Flow_1 | 3666 l/min |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Inlet pressure max. | 16 bar |
| Inlet pressure min. | 0 bar |
| Filter container | Aluminum |
| Filter element | non-woven medium, impregnated with activated carbon |
| Filter fineness | 0.003 µm |
| Housing | Aluminum |
| Thread | G 3/4 |
| Class name | PLUS |
| Medium temperature max. | 80 °C |
| Medium temperature min. | 1.5 °C |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| Residual oil content | 0.003 mg/m³ |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | 1.5 °C |
| Efficiency | 9999.99 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199820] RIEGLER Activated carbon filter G1/2 without differential pressure gauge, 0.003 mg/m³](/web/image/product.template/267918/image_128/%5B199820%5D%20RIEGLER%20Activated%20carbon%20filter%20G1-2%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3?unique=264657f)
|
Typennummer: 4383131 |
334.89 € | |

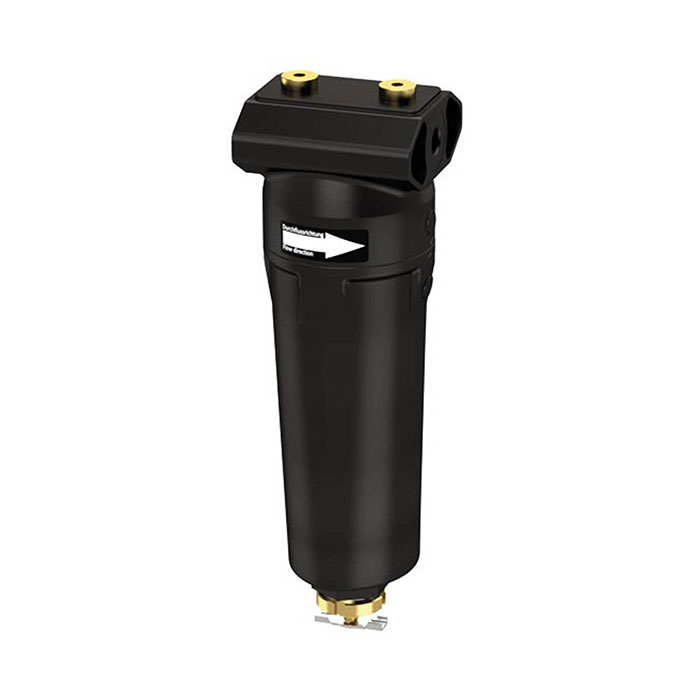

![[199816] RIEGLER Activated carbon filter G1/4 without differential pressure gauge, 0.003 mg/m³](/web/image/product.template/267916/image_128/%5B199816%5D%20RIEGLER%20Activated%20carbon%20filter%20G1-4%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3?unique=b82f955)
|
Typennummer: 4383111 |
334.89 € | |
![[199818] RIEGLER Activated carbon filter G3/8 without differential pressure gauge, 0.003 mg/m³](/web/image/product.template/267917/image_128/%5B199818%5D%20RIEGLER%20Activated%20carbon%20filter%20G3-8%20without%20differential%20pressure%20gauge%2C%200.003%20mg-m%C2%B3?unique=f331098)
|
Typennummer: 4383121 |
334.89 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116966] RIEGLER Connection set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274715/image_128/%5B116966%5D%20RIEGLER%20Connection%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=0064618)
|
Type number: 438412 |
27.43 € | |
![[116967] RIEGLER Connection set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274716/image_128/%5B116967%5D%20RIEGLER%20Connection%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=693ed70)
|
Type number: 438413 |
45.48 € | |
![[116972] RIEGLER Wall mounting set for 1 filter G 1/4 to G 1/2](/web/image/product.template/274719/image_128/%5B116972%5D%20RIEGLER%20Wall%20mounting%20set%20for%201%20filter%20G%201-4%20to%20G%201-2?unique=3c7c347)
|
Type number: 438511 |
67.20 € | |
![[116974] RIEGLER Wall mounting set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274720/image_128/%5B116974%5D%20RIEGLER%20Wall%20mounting%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=37c0ab5)
|
Type number: 438512 |
81.67 € | |
![[116975] RIEGLER Wall mounting set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274721/image_128/%5B116975%5D%20RIEGLER%20Wall%20mounting%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=fc36eae)
|
Type number: 438513 |
91.75 € | |
![[116979] RIEGLER Differential pressure gauge for prefilters, microfilters and activated charcoal filters](/web/image/product.template/274725/image_128/%5B116979%5D%20RIEGLER%20Differential%20pressure%20gauge%20for%20prefilters%2C%20microfilters%20and%20activated%20charcoal%20filters?unique=1640e5a)
|
Type number: 438600 |
153.22 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

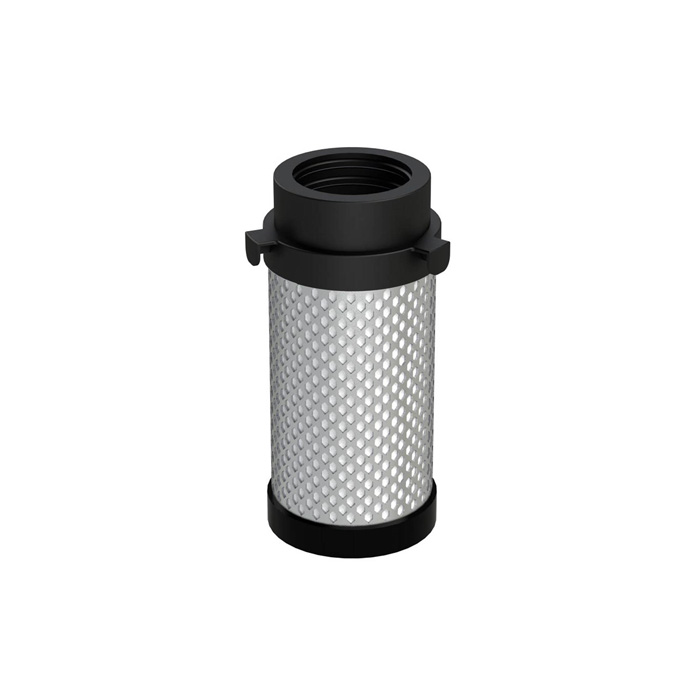

![[116998] RIEGLER Filter element for activated charcoal filter, G 3/4](/web/image/product.template/274734/image_128/%5B116998%5D%20RIEGLER%20Filter%20element%20for%20activated%20charcoal%20filter%2C%20G%203-4?unique=d322175)
|
