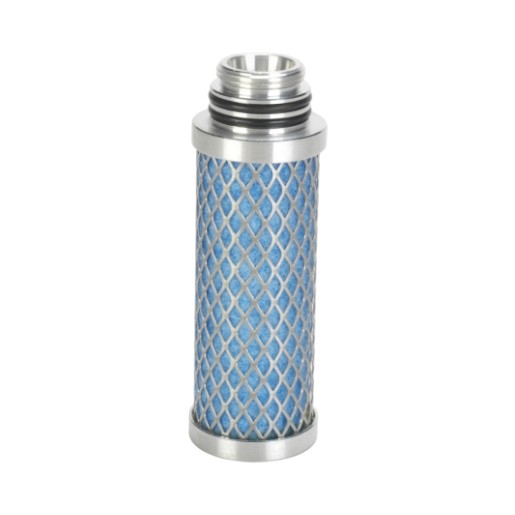

Donaldson filter element, MF 03/10 ultrapleat
Nominal flow rate at 7 bar: 60 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
UltraPleat® coalescence filter for oil separation - Highly efficient compressed air filtration
The Donaldson Filter element MF 03/10 ultrapleat is a high-performance coalescence filter for oil separation in compressed air with innovative UltraPleat® technology. This Donaldson filter element achieves an oil separation efficiency of 99.4% and a residual oil content ≤0.06 mg/m³. The pleated 3D microfiber fleece made of borosilicate glass fibres offers maximum filter surface area with minimum pressure loss - efficient compressed air treatment in accordance with ISO 8573-1.
Performance data & filtration properties
- Filtration type: UltraPleat® coalescence filter for oil separation in compressed air - optimum compressed air treatment.
- Nominal flow rate: 60 m³/h at 7 bar operating pressure - suitable for AG/SG/HD compressed air filter housings.
- Oil separation: 99.4 % oil separation efficiency (8 bar, 10 mg/m³ inlet). Residual oil content ≤0.06 mg/m³.
- Particle separation: 99.99998 % at 0.01 µm - highest compressed air quality.
- Energy efficiency: Pleated filter surface for minimal pressure loss and lower energy costs.
- Validated quality: Tested according to ISO 12500-1 and ISO 12500-3 - compressed air quality according to ISO 8573-1.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D microfiber fleece made of borosilicate glass fibers - maximum filter surface.
- Coalescent sheath: Fixed polyester fleece for permanently stable structure and fluid drainage.
- Support structure: Stainless steel support shells (1.4301/304) to protect against pressure surges.
- End caps: Aluminum - robust and corrosion-resistant for a long service life.
- Sealing: NBR O-rings (silicone and release agent-free) for a leak-free fit.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings of the AG/SG/HD series (size 03/10). Precisely fitting filter cartridge for easy replacement.
Typical areas of application
- Central compressed air treatment: Coalescence filter for oil separation and pre-filter to protect dryers.
- End-point filtration: Compressed air filter for control, instrument and process air.
- Food and pharmaceutical industry: Oil separation for contamination-free compressed air.
- Automotive industry: Compressed air treatment for painting and assembly processes.
- Electronics production: Oil-free compressed air for semiconductor and PCB production.
| Filter type | MF: UltraPleat™ microfilter |
| Nominal flow rate at 7 bar (m³/h) | 60 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
