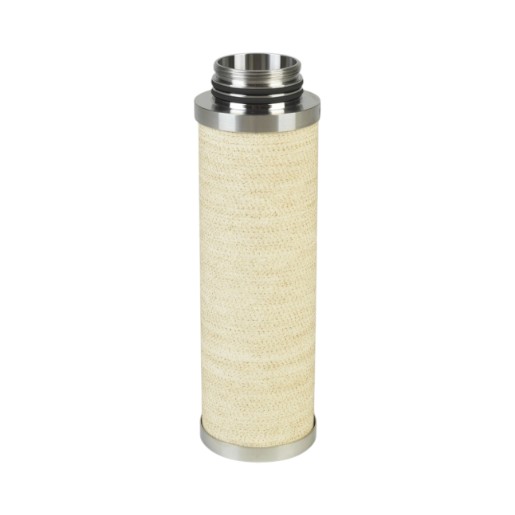

Donaldson filter element, FF 05/20 HTCR
Nominal flow rate at 7 bar: 180 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
High-temperature coalescing filter for oil separation HTCR - Corrosion-resistant compressed air filtration
The Donaldson Filter element FF 05/20 HTCR is a specialized high temperature compressed air filter and coalescing filter for oil separation with UltraPleat® technology and maximum corrosion resistance. This Donaldson filter element features stainless steel end caps and is ideal for oil separation in aggressive environments with high temperatures and chemical loads. The optimum solution for demanding compressed air treatment in accordance with ISO 8573-1.
Performance data & filtration properties
- Filtration type: High temperature coalescing filter for oil separation (HTCR) with UltraPleat® technology for corrosive environments.
- Nominal flow rate: 180 m³/h at 7 bar operating pressure.
- Oil separation: 99 % oil separation efficiency (8 bar absolute, 10 mg/m³). Residual oil content ≤ 0.03 mg/m³ - for oil-free compressed air even under extreme conditions.
- Corrosion resistance: Stainless steel end caps for maximum resistance to corrosive condensates and aggressive media.
- Energy efficiency: Pleated compressed air filter with minimal pressure loss and reduced operating costs.
- Validated quality: Tested in accordance with ISO 12500-1 and ISO 12500-3 - reliable compressed air quality in accordance with ISO 8573-1.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D microfiber fleece made of borosilicate glass fibers for maximum oil separation.
- Stainless steel end caps: Maximum corrosion resistance - even with aggressive condensates and high temperatures.
- Robust support structure: Stainless steel support sleeves (1.4301/304) protect the filter element against pressure surges.
- Efficient drainage: Fixed coalescence jacket for optimum drainage of separated oils and liquids.
- Reliable sealing: High-quality O-rings for a leak-free fit in the compressed air filter housing.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings from the AG, SG, HD and P-EG series (size 05/20). Precisely fitting coalescence filter for oil separation for your existing compressed air system.
Typical areas of application
- High-temperature compressed air treatment: Coalescence filter for oil separation for systems with increased operating temperatures.
- Chemical & pharmaceutical industry: Compressed air filter for aggressive environments with corrosive condensates.
- Energy supply: Oil separation and compressed air filtration to protect sensitive control components.
- Machinery and plant engineering: Reliable compressed air treatment for instrument and process air under extreme conditions.
| Filter type | FF HTCR: Fine filter (chemically resistant) |
| Nominal flow rate at 7 bar (m³/h) | 180 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
