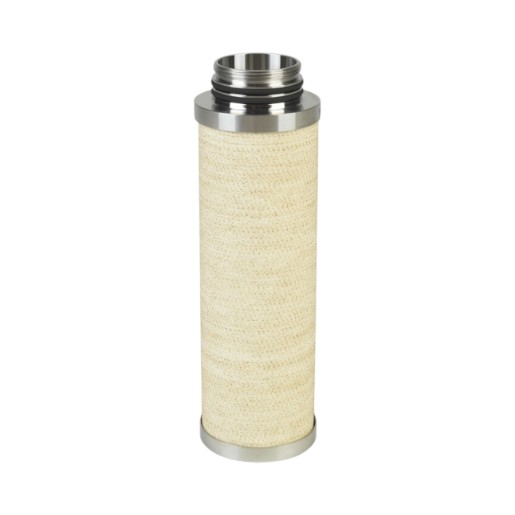

Donaldson filter element, MF 03/05 HTCR
Nominal flow rate at 7 bar: 40 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
High-temperature coalescing filter for oil separation HTCR - UltraPleat® with stainless steel
The Donaldson Filter element MF 03/05 HTCR is a specialized high-temperature compressed air filter and coalescing filter for oil separation with UltraPleat® technology and maximum corrosion resistance. This Donaldson filter element offers a residual oil content of ≤0.06 mg/m³ and stainless steel end caps for use in aggressive environments. Efficient compressed air treatment in accordance with ISO 8573-1.
Performance data & filtration properties
- Filtration type: High temperature coalescence filter for oil separation (HTCR) with UltraPleat® technology.
- Nominal flow rate: 40 m³/h at 7 bar operating pressure.
- Oil separation: Oil separation efficiency 99.4 %. Residual oil content ≤0.06 mg/m³ (at 10 mg/m³ inlet).
- Particle separation: 99.99998 % at 0.01 µm - highest compressed air quality.
- Corrosion resistance: Stainless steel end caps for aggressive environments.
- Validated quality: Tested according to ISO 12500-1 and ISO 12500-3.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D microfiber fleece made of borosilicate glass fibers for maximum oil separation.
- Stainless steel end caps: Maximum corrosion resistance with aggressive condensates.
- Coalescent sheath: Fixed polyester fleece for optimum fluid drainage.
- Support structure: Stainless steel support shells (1.4301/304) to protect against pressure surges.
- Sealing: NBR O-rings for a leak-free fit in the filter housing.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings of the AG/SG/HD series (size 03/05). Precisely fitting filter cartridge for easy replacement.
Typical areas of application
- Central compressed air treatment: Coalescence filter for oil separation and pre-filter to protect dryers.
- End-point filtration: Compressed air filter for control, instrument and process air.
- Food and pharmaceutical industry: Oil separation for contamination-free compressed air.
- Automotive industry: Compressed air treatment for painting and assembly processes.
- Electronics production: Oil-free compressed air for semiconductor and PCB production.
| Filter type | MF HTCR: Microfilter (chemically resistant) |
| Nominal flow rate at 7 bar (m³/h) | 40 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
