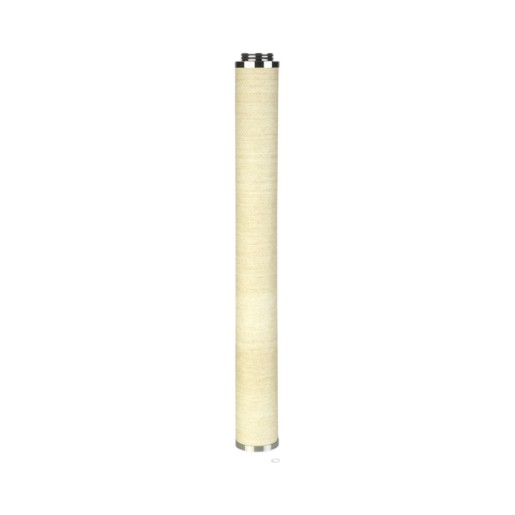

Donaldson filter element, FF 20/30 HTNX
Nominal flow rate at 7 bar: 1440 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
High-temperature coalescing filter for oil separation HTNX - compressed air filtration with Nomex® up to 180 °C
The Donaldson Filter element FF 20/30 HTNX is a high-performance high temperature compressed air filter and coalescing filter for oil separation with UltraPleat® technology for operating temperatures up to 180 °C. This Donaldson filter element uses a temperature-resistant Nomex® drainage layer and is ideal for oil separation under extreme thermal loads - highly efficient compressed air treatment in accordance with ISO 8573-1 even at the highest temperatures.
Performance data & filtration properties
- Filtration type: High temperature coalescing filter for oil separation (HTNX) with UltraPleat® technology and Nomex® drainage layer.
- Nominal flow rate: 1,440 m³/h at 7 bar operating pressure.
- Temperature resistance: Compressed air filter can be used up to 180 °C thanks to temperature-resistant Nomex® fabric.
- Oil separation: 99 % oil separation efficiency (8 bar absolute, 10 mg/m³). Residual oil content ≤ 0.03 mg/m³ - oil-free compressed air at high temperature.
- Energy efficiency: Pleated filter element with minimal pressure loss and reduced energy costs.
- Validated quality: Tested in accordance with ISO 12500-1 and ISO 12500-3 - reliable compressed air quality in accordance with ISO 8573-1.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D microfiber fleece made of borosilicate glass fibers for maximum oil separation at high temperatures.
- Nomex® drainage layer: Temperature-resistant high-performance fabric for reliable oil separation at extreme temperatures.
- Robust support structure: Stainless steel support sleeves (1.4301/304) reliably protect the filter element against pressure surges.
- High-quality materials: Aluminum end caps and stainless steel for optimum temperature and corrosion resistance.
- Reliable sealing: High-quality O-rings for a leak-free fit in the compressed air filter housing.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings from the AG, SG, HD and P-EG series (size 20/30). Easy replacement of the coalescence filter in your compressed air system.
Typical areas of application
- High-temperature compressed air treatment: Coalescence filter for oil separation for systems with operating temperatures of up to 180 °C.
- Chemical industry: Coalescence filter for oil separation at elevated temperatures and demanding process conditions.
- Energy supply: High-temperature compressed air filter to protect sensitive control components.
- Machinery and plant engineering: Compressed air treatment and oil separation for instrument and process air under thermal load.
| Filter type | FF HTNX: Fine filter (high temperature) |
| Nominal flow rate at 7 bar (m³/h) | 1440 |
| Element type | AG, SG und HD Element |
| Connection type | UF plug-in connection with connecting rod |
