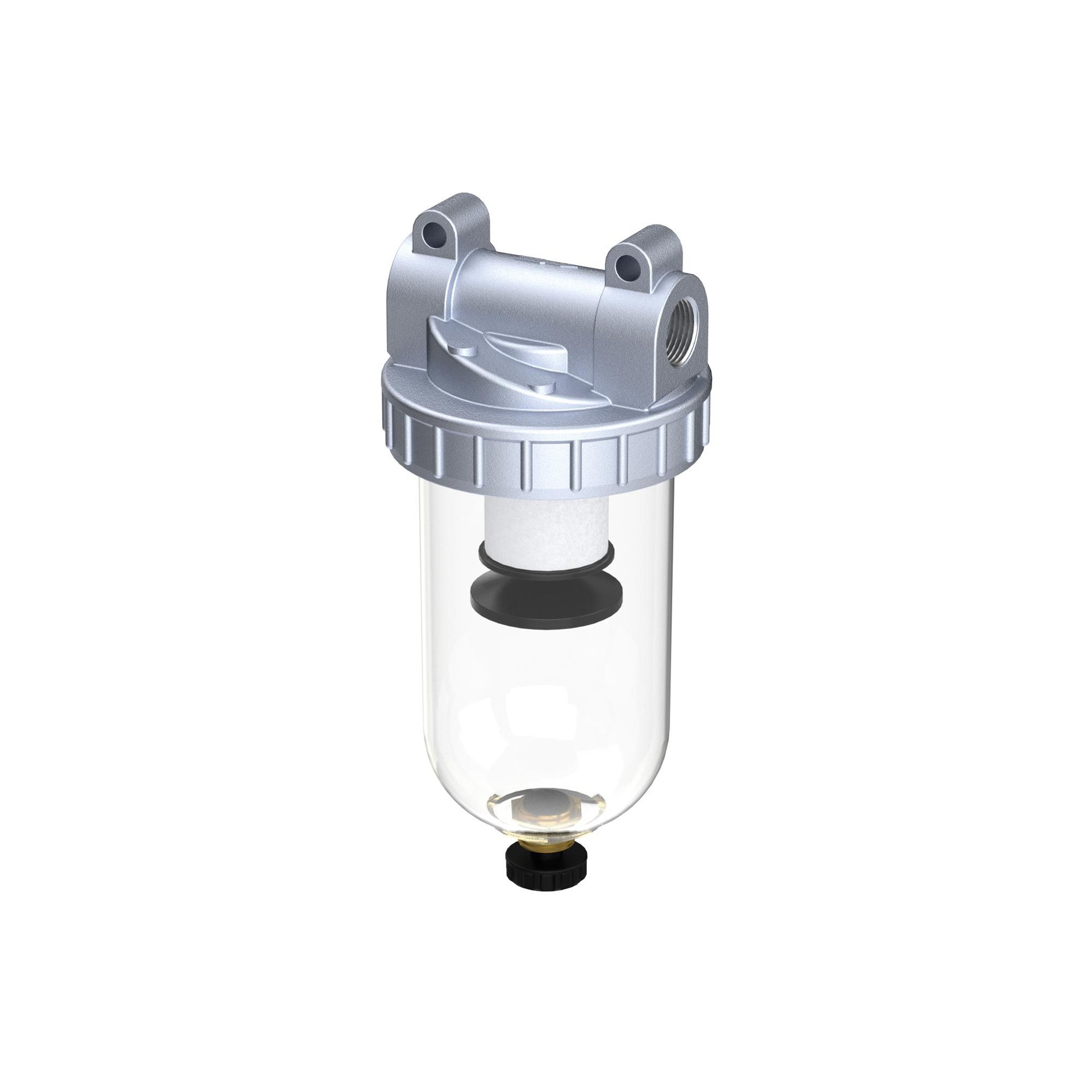

RIEGLER Filter »Standard«, mit Polycarbonatbehälter, 5 µm, BG 2, G 3/8
Typennummer: 650 B/K-HA.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard" filter made of die-cast zinc, painted silver, for compressed air treatment, G 3/8 - type 650 B/K-HA.2
The RIEGLER "Standard" filter, with polycarbonate container, 5 µm, BG 2, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc, painted silver. The maximum inlet pressure is 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. Filter fineness 5 µm, polycarbonate container. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| A | 70 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6b-I, 6c |
| Container | Polycarbonate container |
| BG | 2 |
| C | 16 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| D | 145.7 mm |
| DN | 10 |
| Flow 1 | 3100 l/min |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Inlet pressure max. | 16 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc, painted silver |
| Thread | G 3/8 |
| H | 50 mm |
| Class name | EASY |
| Condensate drain | semi-automatic |
| Material identification | CW614N |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Series | Standard |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100961] RIEGLER Filter »Standard« Polycarbonate container, 40 µm, Size 4, G 1 1/2](/web/image/product.template/140397/image_128/%5B100961%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20Polycarbonate%20container%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201%201-2?unique=c82ed72)
|
Type number: 650 G/K-HA |
162.02 € | |
![[100960] RIEGLER Filter »Standard« Polycarbonate container, 40 µm, Size 4, G 1 1/4](/web/image/product.template/140396/image_128/%5B100960%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20Polycarbonate%20container%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201%201-4?unique=e894b0a)
|
Type number: 650 F/K-HA |
195.40 € | |
![[100954] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 1, G 1/4](/web/image/product.template/140390/image_128/%5B100954%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=54d84c1)
|
Type number: 640.116 K-HA |
20.65 € | |
![[100955] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 1, G 3/8](/web/image/product.template/140391/image_128/%5B100955%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=9ad5ec2)
|
Type number: 640.126 K-HA |
20.65 € | |
![[100959] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 3, G 1](/web/image/product.template/140395/image_128/%5B100959%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201?unique=71a47a3)
|
Type number: 650 E/K-HA |
87.48 € | |
![[100957] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 3, G 1/2](/web/image/product.template/140393/image_128/%5B100957%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=ac43584)
|
Type number: 650 C/K-HA |
38.00 € | |
![[100958] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 3, G 3/4](/web/image/product.template/140394/image_128/%5B100958%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4?unique=321f992)
|
Type number: 650 D/K-HA |
88.35 € | |
![[100962] RIEGLER Filter »Standard«, Polycarbonate container, 60 µm, Size 5, G 2](/web/image/product.template/140398/image_128/%5B100962%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%2060%20%C2%B5m%2C%20Size%205%2C%20G%202?unique=303649f)
|
Type number: 650 H/K-HA |
463.96 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=996854b)
|
Type number: SK 02 |
20.37 € | |

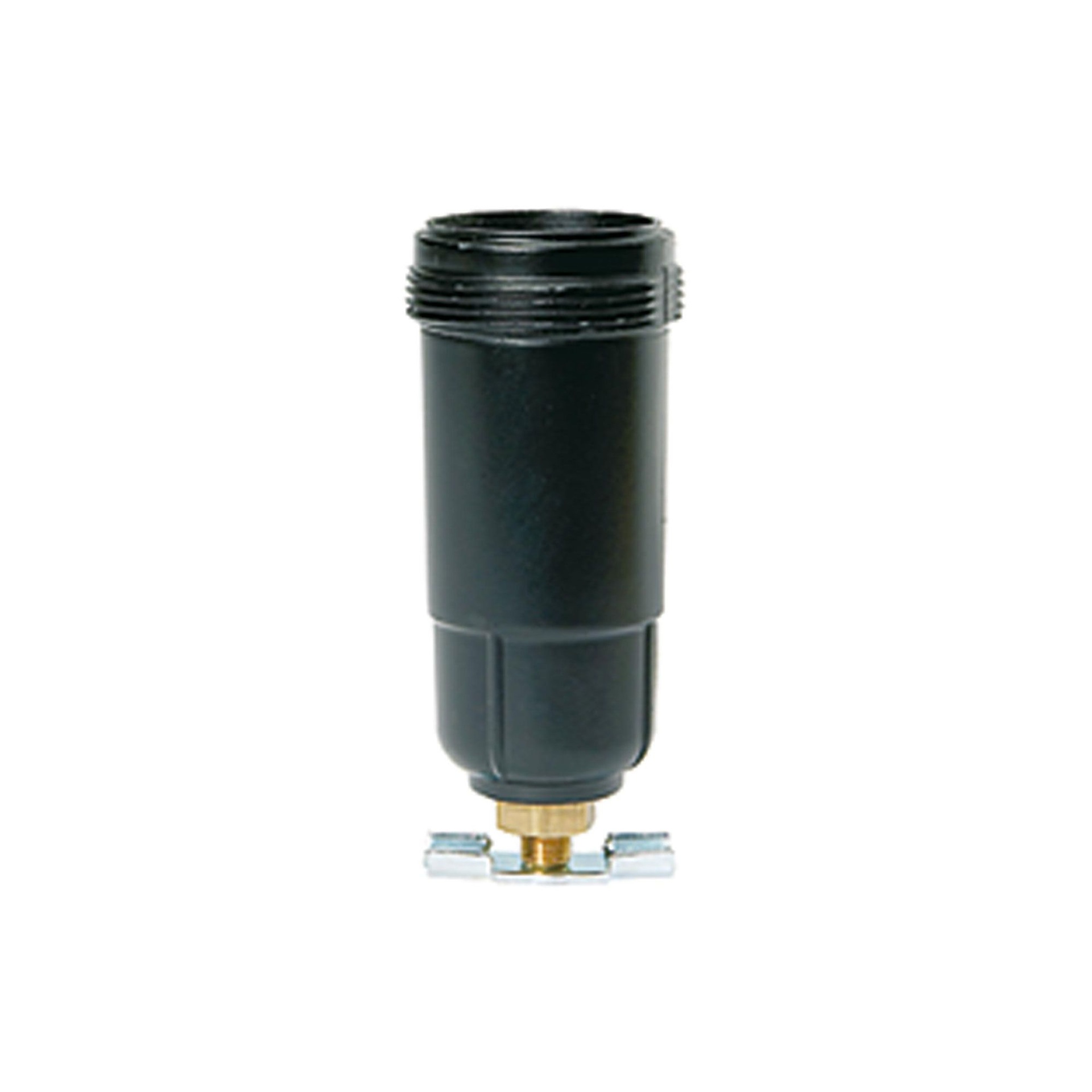

![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=b9cc90f)
|
Type number: 650/11 |
26.33 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=a463711)
|
Type number: H 801 |
4.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=c07d854)
|
Type number: 633.6.905 |
13.89 € | |

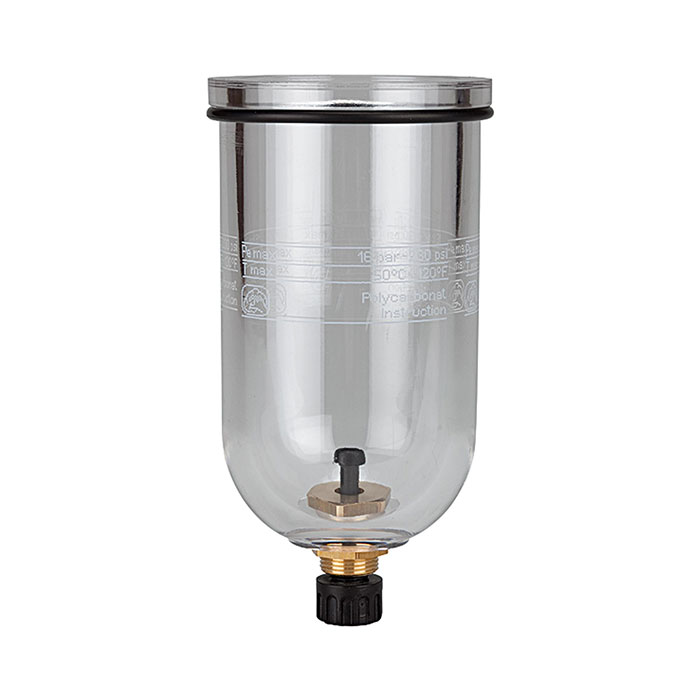

![[100946] RIEGLER PC container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140382/image_128/%5B100946%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=4b8ebd7)
|
