RIEGLER Filter »Standard« Polycarbonate container, 40 µm, Size 4, G 1 1/2
Type number: 650 G/K-HA
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter »Standard« with polycarbonate container, 40 µm, Size 4, G 1 1/2, Input pressure max. 16 bar, Med./ambient temp. max. 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Flow rate measurement | with P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container |
| Filter fineness | 40 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/2 |
| Flow rate | 12500 l/min |
| Condensate drain | semi-automatic |
| DN | 45 |
| BG | 4 |
| A | 125 mm |
| C | 36.5 mm |
| D | 243.4 mm |
| H | 105 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6b, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[206300] RIEGLER Filter »Standard«, mit Polycarbonatbehälter, 5 µm, BG 2, G 3/8](/web/image/product.template/268036/image_128/%5B206300%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20mit%20Polycarbonatbeh%C3%A4lter%2C%205%20%C2%B5m%2C%20BG%202%2C%20G%203-8?unique=3c054c1)
|
Typennummer: 650 B/K-HA.2 |
38.63 € | |
![[100960] RIEGLER Filter »Standard« Polycarbonate container, 40 µm, Size 4, G 1 1/4](/web/image/product.template/140396/image_128/%5B100960%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%20Polycarbonate%20container%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201%201-4?unique=15db60f)
|
Type number: 650 F/K-HA |
198.65 € | |
![[100954] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 1, G 1/4](/web/image/product.template/140390/image_128/%5B100954%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=9863849)
|
Type number: 640.116 K-HA |
20.65 € | |

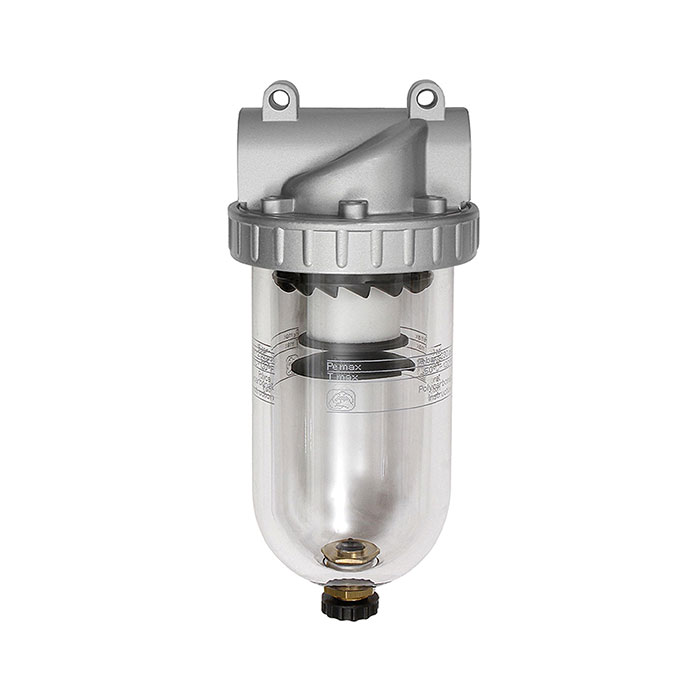

![[100955] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 1, G 3/8](/web/image/product.template/140391/image_128/%5B100955%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=57b5052)
|
Type number: 640.126 K-HA |
20.65 € | |
![[100959] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 3, G 1](/web/image/product.template/140395/image_128/%5B100959%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201?unique=957de96)
|
Type number: 650 E/K-HA |
87.48 € | |
![[100957] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 3, G 1/2](/web/image/product.template/140393/image_128/%5B100957%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=ced0294)
|
Type number: 650 C/K-HA |
38.63 € | |
![[100958] RIEGLER Filter »Standard«, Polycarbonate container, 5 µm, Size 3, G 3/4](/web/image/product.template/140394/image_128/%5B100958%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4?unique=f51d654)
|
Type number: 650 D/K-HA |
88.35 € | |
![[100962] RIEGLER Filter »Standard«, Polycarbonate container, 60 µm, Size 5, G 2](/web/image/product.template/140398/image_128/%5B100962%5D%20RIEGLER%20Filter%20%C2%BBStandard%C2%AB%2C%20Polycarbonate%20container%2C%2060%20%C2%B5m%2C%20Size%205%2C%20G%202?unique=aa121b6)
|
Type number: 650 H/K-HA |
463.97 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

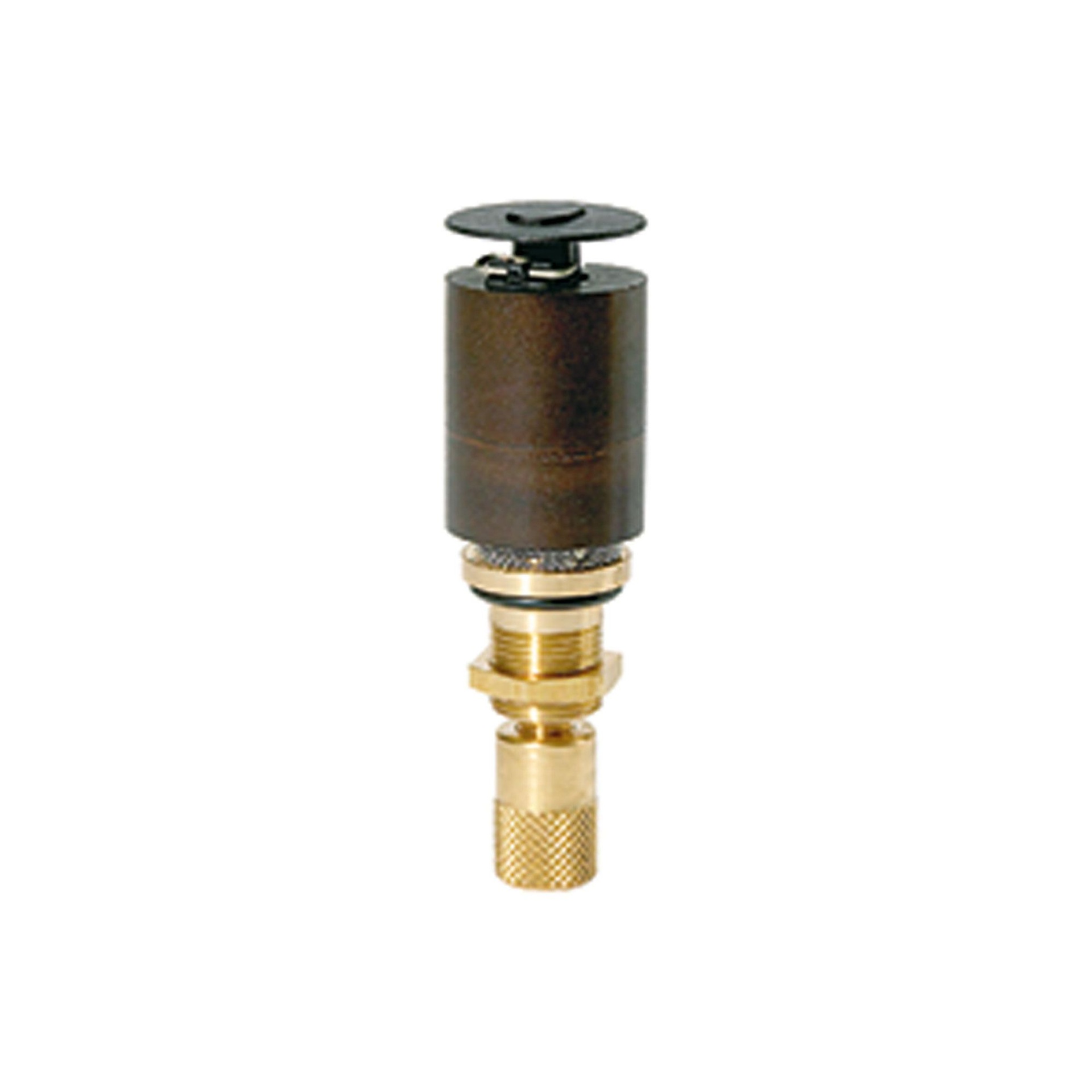

![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=fdaeaef)
|
Type number: 655.6.900 |
36.96 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=279a66d)
|
Type number: SK 03 |
24.20 € | |
![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=7339ac4)
|
Type number: 650/12 |
26.82 € | |
![[205521] RIEGLER Filterelement 5 µm, Cellpor, für »multifix« und »Standard«](/web/image/product.template/267920/image_128/%5B205521%5D%20RIEGLER%20Filterelement%205%20%C2%B5m%2C%20Cellpor%2C%20f%C3%BCr%20%C2%BBmultifix%C2%AB%20und%20%C2%BBStandard%C2%AB?unique=cd8d5cc)
|
Typennummer: 655.6.905.2 |
24.66 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

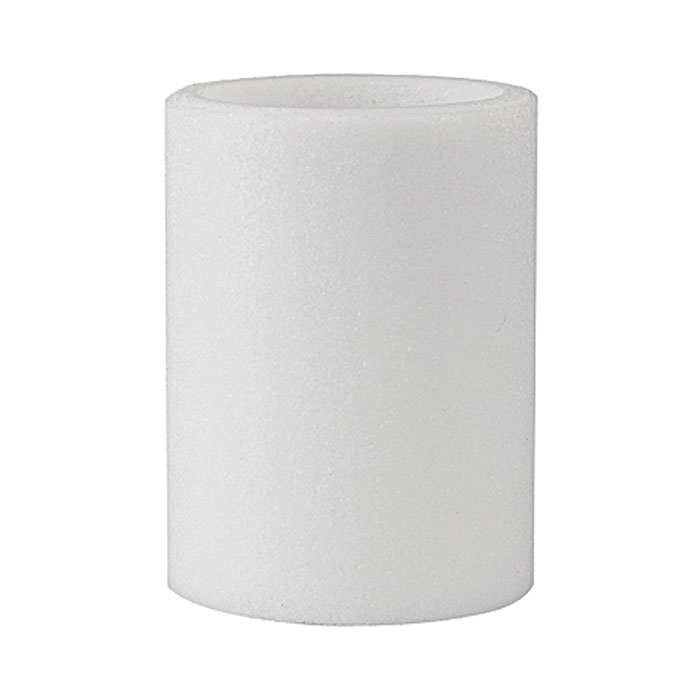

![[100511] RIEGLER Filter element 40 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139946/image_128/%5B100511%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=5bf1539)
|
Type number: 655.6.940 |
21.00 € | |

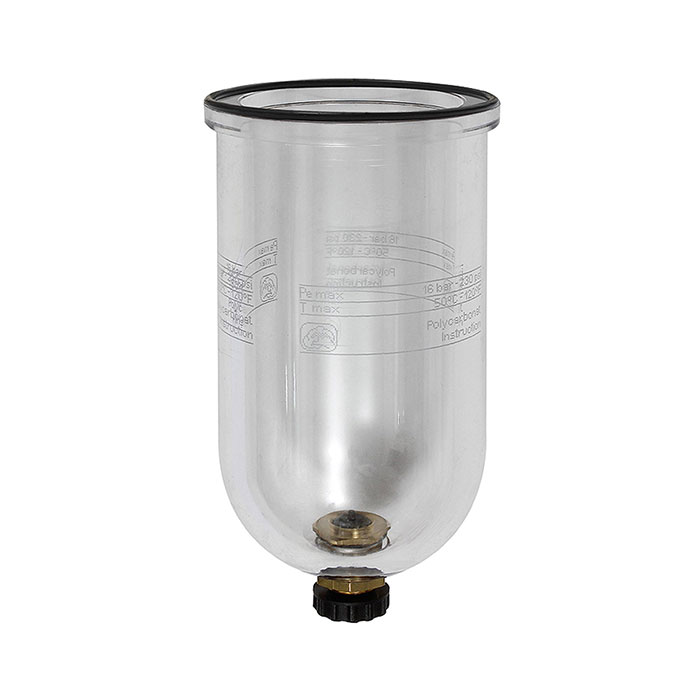

![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=1d562ec)
|
