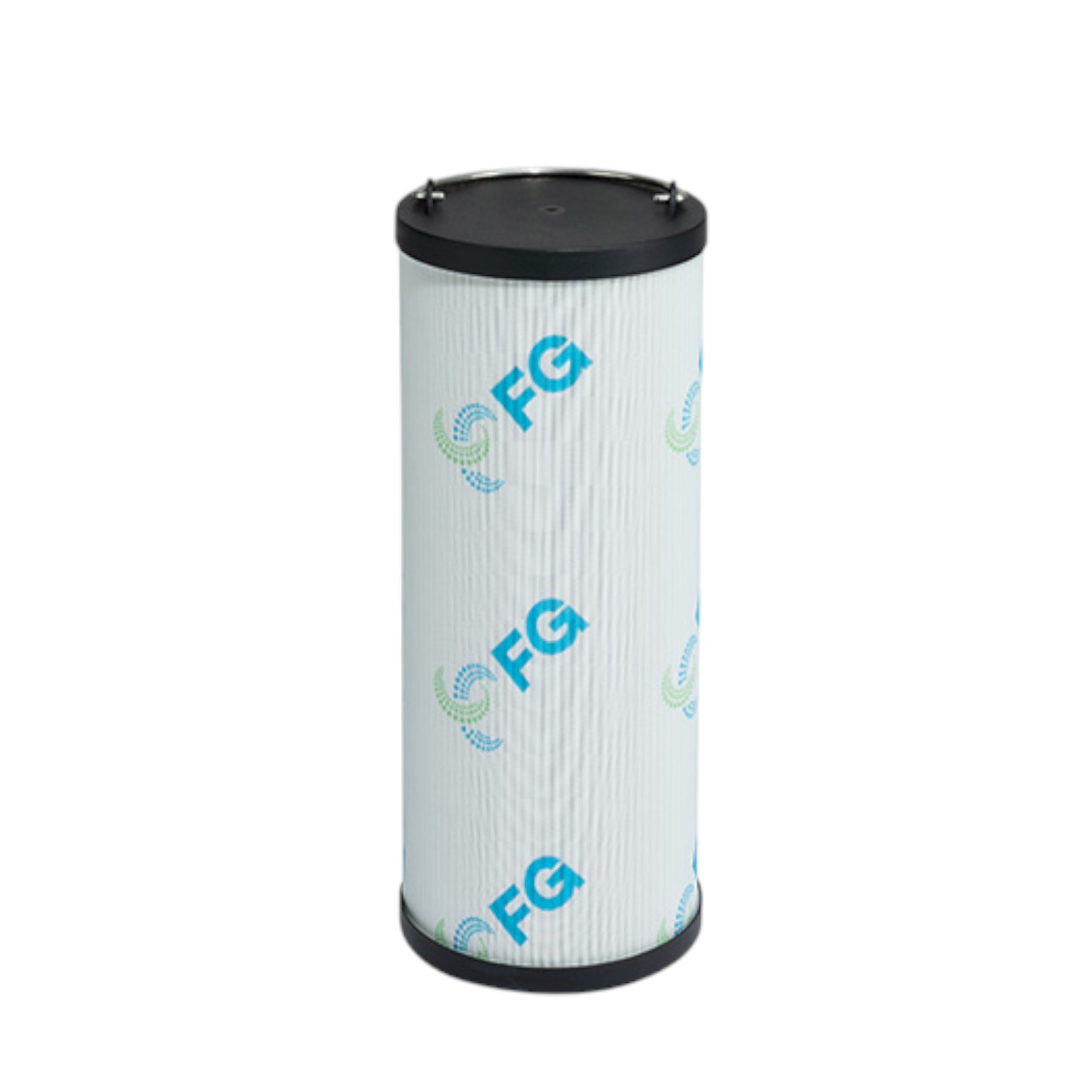

Filtration Group filter element PI 2E 0080 N 010 / 72506561
High-quality filter element from Filtration Group for low-pressure filter series Pi 204 for the filtration of hydraulic and lubricating fluids, fuels, aqueous media, as well as flame-retardant and synthetic fluids.
Filter fineness: 10 µm
Nominal size: 80 l/min
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Nominal size (l/min) | 80 |
| Filter material | Glass fiber |
| Filter fineness (micrometres) | 10 |
| Differential pressure (bar) | 20 |
| Nominal height (mm) | 115 |
| Outer diameter (mm) | 56 |
| Inner diameter (mm) | 25,8 |
| End disc material | Plastic end disk PA |
| Seal material | NBR |
| Filter area (cm²) | 942 |
