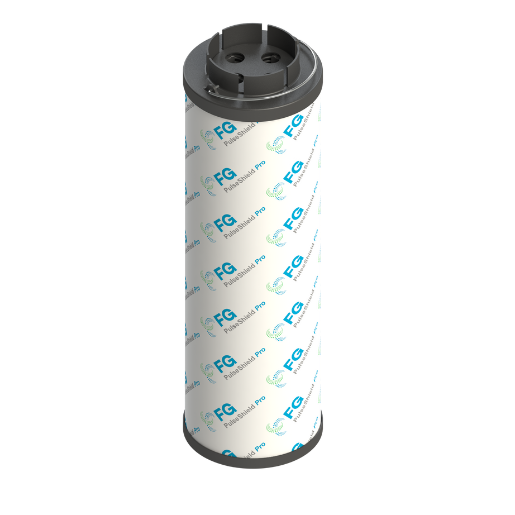

Filtration Group filter element 852 1300 SMX 3
Filter element for Pi 260065
Nominal size 650 l/min
max. differential pressure 25 bar
Filter material glass fiber
Filter fineness 3 µm
Filter surface area18652 cm²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Inner diameter (mm) | 96.3 |
| Filter material | SMX |
| Mounting gasket | installed |
| Sealing function | radial |
| Valve | 5,0 bar |
| Mounting diameter (mm) | 96,3 |
| Nominal height (mm) | 482 |
| Nominal size (l/min) | 650 |
| Filter fineness (micrometres) | 3 |
| End disc material | Plastic end disk PA |
| Seal material | NBR |
| Outer diameter (mm) | 143 |
