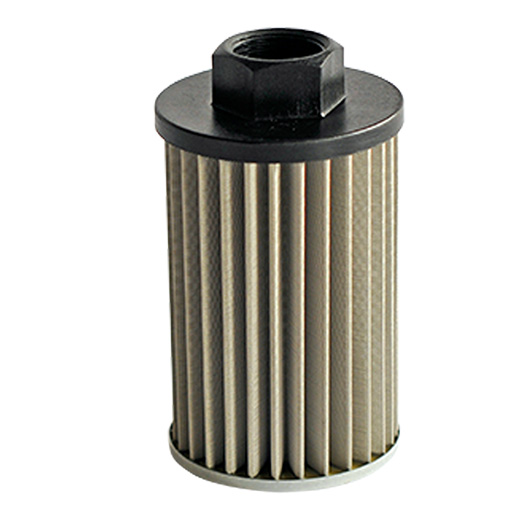

Filtration Group Siebstern suction filter PI 1710/8/DRG 100
Siebstern suction filter Pi 171
Nominal size 36 l/min
Filter surface area 2738 cm²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Siebstern intake filter Pi 171/8 / 77661663
MAHLE suction filters of the Pi 171 series are characterized by their robust design and large filter surface.
The filter surface is dimensioned in such a way that a long service life is guaranteed.
A stainless steel dutch weave with a fineness of 1 µm is used as standard.
It is installed upstream of the pump in the tank.
| Outer diameter (mm) | 131 |
| Element fastening | G 2 |
| Element type | Intake filter |
| Filter fineness (micrometres) | 100 |
| Filter material | Wire mesh |
| Height (mm) | 159.5 |
| Inner diameter (mm) | 56.5 |
| Medium | Hydraulic oil |
| Nominal size (l/min) | 350 |
