Filtration Group filter element PI 3208 PS VST 10
High-quality filter element from Filtration Group for the filtration of hydraulic and lubricating fluids, fuels and flame-retardant and synthetic fluids.
Filtration fineness: 10 µm
Nominal size: 80 l/min
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Filter element Pi 3208 PS VST 10 / 77681190
Longer service life than conventional filters
Lower energy consumption due to lower differential pressure for longer
Up to 30% more dirt-holding capacity compared to standard products
Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | FG Standard |
| Nominal size (l/min) | 80 |
| Height (mm) | 171.8 |
| Outer diameter (mm) | 47 |
| Inner diameter (mm) | 25.5 |
| Mounting diameter (mm) | 25.5 |
| Differential pressure resistance (bar) | 210 |
| Filter material | Glass fiber (reinforced) |
| Filter fineness (micrometres) | 10 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 210 |
| Element type | FG Standard |
| Filter material | Glass fiber (reinforced) |
| Nominal height (mm) | 171,8 |
| Medium | Hydraulic oil |
| Nominal size | 80 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

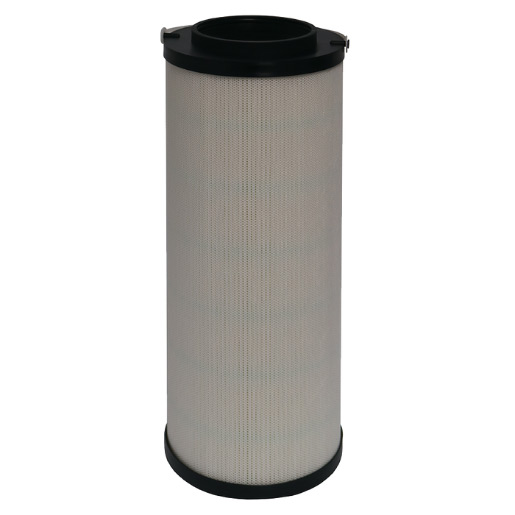

![[76900815] Filtration Group EcoParts Filter element for Filtration Group (ex. MAHLE) Filter Pi 3208 PS VST 10](/web/image/product.template/55400/image_128/%5B76900815%5D%20Filtration%20Group%20EcoParts%20Filter%20element%20for%20Filtration%20Group%20%28ex.%20MAHLE%29%20Filter%20Pi%203208%20PS%20VST%2010?unique=72d6af7)
|
Manufacturer type designation: M 0008 DH 2 010 Filtration fineness: 10 µm Filter material: Glass fiber |
93.06 € | |
