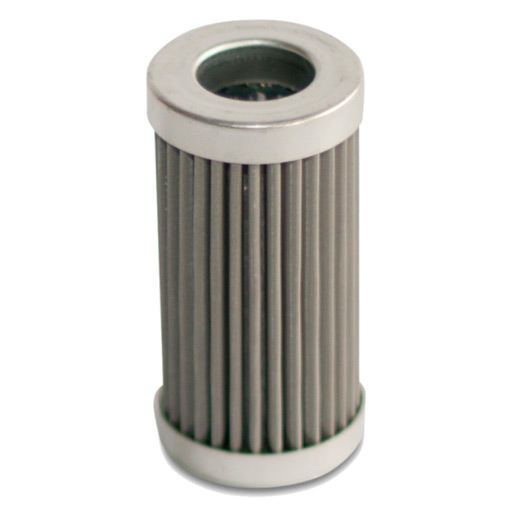

Filtration Group filter element 852 125 DRG VST 25 NBR
High-quality wire mesh filter element from Filtration Group for surface filtration. Cleanable filter element as a suction and coarse filter in hydraulic filtration for highly viscous media and as a safety filter in cooling lubricant filtration
Filtration fineness: 25 µm
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filter elements for liquid filters from Filtration Group
Cleanable wire mesh elements from Filtration Group have a sharp separation limit as surface filters and a low dirt holding capacity as depth filters. Filter elements are available in braid, body and linen weave.
Technical specifications:
- Filtration fineness: 10 to 500 µm (absolute)
- Nominal size: 50 to 450 l/min
- Direction of flow: From outside to inside
- Materials: Corrosion-protected end caps and support tubes, chrome VI-free
- Collapse pressure resistance: Up to a maximum of 210 bar
- Temperature application range: -10 °C to +120 °C
Advantages:
- Efficient filtration: Stainless steel wire mesh provides a sharp cut-off point and low flow resistance.
- Cleanable: Manual cleaning or using an ultrasonic bath possible.
- Universally applicable: Suitable for hydraulic and lubricating oil filtration, highly viscous media and cooling lubricants.
- Cost-efficient: Multiple reusable surface filters made of stainless steel wire mesh
- Rugged design: High differential pressure stability and wide temperature application range.
- Environmentally friendly: Chrome VI-free materials reduce the environmental impact.
Application areas:
- Hydraulic systems
- Lubricating oil systems
- Machine tools
- Agricultural and construction machinery
- Power generation
- Ship operating technology
- Stationary hydraulics
This filter element from Filtration Group offers a reliable and cost-effective solution for filtration in various industrial applications. Thanks to its robust design, high differential pressure stability and wide temperature application range, it is particularly versatile.
| Mounting diameter (mm) | 22.6 |
| Outer diameter (mm) | 41.3 |
| Differential pressure (bar) | 20 |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter fineness (micrometres) | 25 |
| Filter material | Wire mesh (reinforced) |
| Nominal height (mm) | 86,8 |
| Inner diameter (mm) | 22.6 |
| Medium | Hydraulic oil |
| Nominal size | 20 |
| Seal material | NBR |
