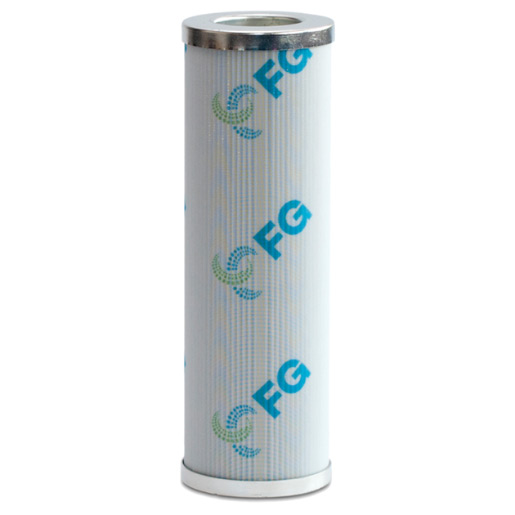

Filtration Group filter element 852 149 PS VST 3/K197
Filter element for Pi 431
Nominal size 5 l/min
max. differential pressure 16 bar
Filter material glass fiber (Sm-x vst)
Filter fineness 3 µm
Filter area 15 cm²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element 852 149 PS VST 3/K197 / 77684681
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -1 °C to +12 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | 852 Series |
| Seal material | NBR |
| Nominal size (l/min) | 5 |
| Height (mm) | 70 |
| Outer diameter (mm) | 32 |
| Inner diameter (mm) | 16.1 |
| Mounting diameter (mm) | 16.1 |
| Differential pressure resistance (bar) | 160 |
| Filter material | Glass fiber (reinforced) |
| Filter fineness (micrometres) | 3 |
| End disc material | Turned end plate |
| Filter housing type | Pi 4301 |
| Differential pressure (bar) | 20 |
| Element type | 852 Series |
| Filter material | Glass fiber reinforced |
| Nominal height (mm) | 70 |
| Medium | Hydraulic oil |
| Nominal size | 5 |
