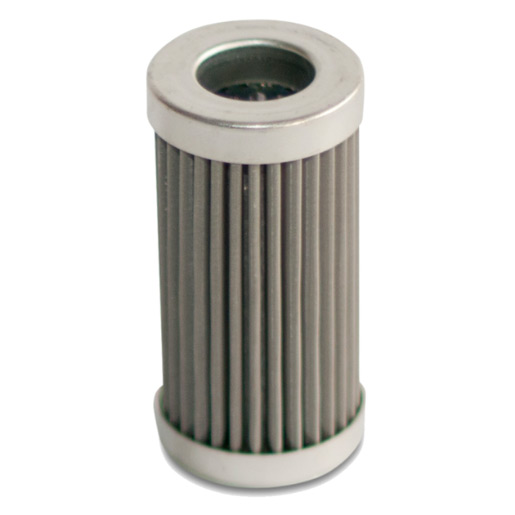

Filtration Group filter element Pi 9505 DRG VST 100
High-quality wire mesh filter element from Filtration Group for surface filtration. Cleanable filter element as a suction and coarse filter in hydraulic filtration for highly viscous media and as a safety filter in cooling lubricant filtration
Filtration fineness: 100 µm
Nominal size: 50 l/min
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element Pi 9505 DRG VST 100 / 77689276
| Filter element | FG Standard |
| Nominal size (l/min) | 50 |
| Height (mm) | 94 |
| Outer diameter (mm) | 47 |
| Inner diameter (mm) | 25.5 |
| Mounting diameter (mm) | 25.5 |
| Differential pressure resistance (bar) | 210 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 100 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 210 |
| Element type | FG Standard |
| Filter material | Drahtgewebe |
| Nominal height (mm) | 94 |
| Medium | Hydraulic oil |
| Nenngröße | 50 |
