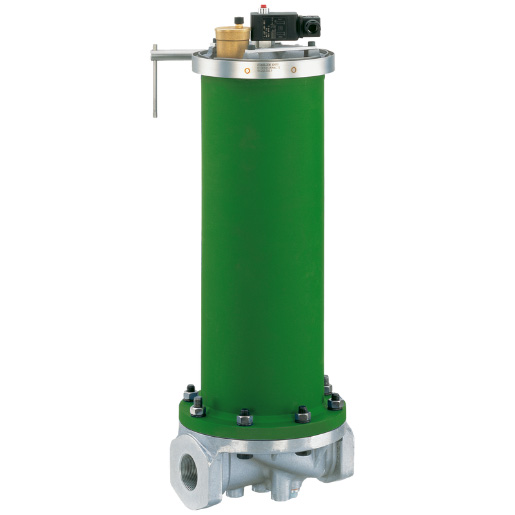

Filtration Group Low pressure filter Pi 1560/10-068 / 77804941
Low-pressure filter Pi 15, rated 63 l/min,
rated pressure 1 bar,
includes:
- Visual maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Low pressure filter Pi 1560/10-068 / 77804941
Important note:
We supply the Mahle low-pressure filter Pi 156/1-68 without the filter element.
For suitable filter elements and accessories, see "Accessories".
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
| Connection type | Flange |
| Connection size | SAE 2 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | mechanical |
| Operating temperature | -30°C bis +120°C |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 10 |
| Nominal size | 600 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | St |
| Filter head material | GAL |
