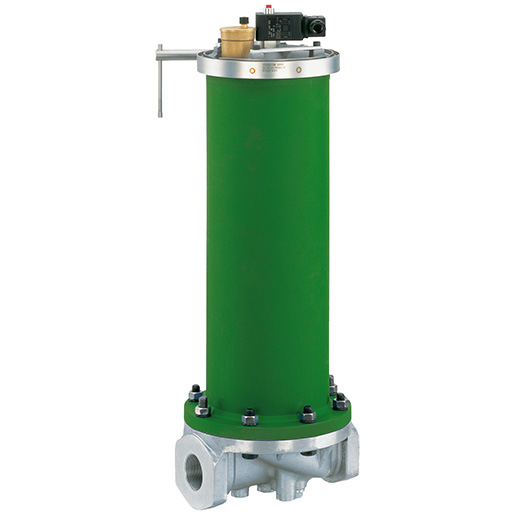

Filtration Group Low pressure filter PI 1560/10-069 incl. PIS 3097
Low-pressure filter Pi 15, rated 63 l/min,
rated pressure 1 bar,
includes:
- Electrical maintenance indicator
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Low pressure filter Pi 156/1-69 / 7784958
Intended for installation in pipes
Modular system for optimum filter selection
Low space requirement due to compact design
Minimal pressure loss due to streamlined design of the components
Electrical maintenance indicator
Version with threaded connections
Equipped with highly efficient PS filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High differential pressure stability and dirt holding capacity of the elements
Important note:
We supply the Mahle low-pressure filter Pi 156/1-69 without the filter element.
For suitable filter elements and accessories, see "Accessories".
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
| Connection type | Flange |
| Connection size | SAE 2 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -30°C bis +120°C |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 10 |
| Nominal size | 600 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | St |
| Filter head material | GAL |
