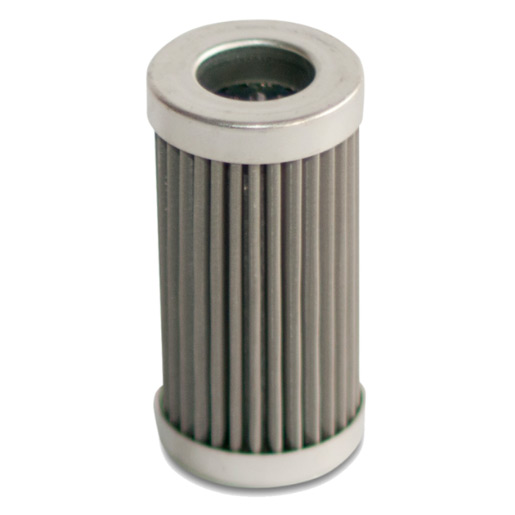

Filtration Group filter element line filter Pi 38100 DN DRG 100
High-quality wire mesh filter element from Filtration Group for surface filtration. Cleanable filter element as a suction and coarse filter in hydraulic filtration for highly viscous media and as a safety filter in cooling lubricant filtration
Filtration fineness: 100 µm
Nominal size: 1,000 l/min
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element Inline filter Pi 38100 DN DRG 100 / 77977465
| Filter element | Standard element |
| Seal material | NBR |
| Nominal size (l/min) | 1000 |
| Height (mm) | 630 |
| Outer diameter (mm) | 100 |
| Inner diameter (mm) | 60.4 |
| Mounting diameter (mm) | 60.4 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 100 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 20 |
| Element type | Standard element |
| Filter material | Drahtgewebe |
| Nominal height (mm) | 398,5 |
| Medium | Hydraulic oil |
| Nenngröße | 630 |
