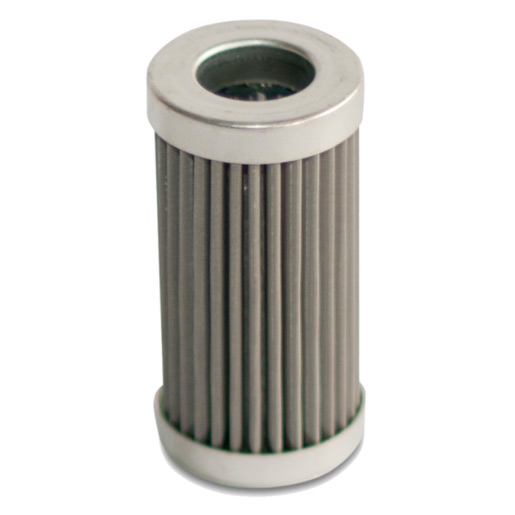

Filtration Group filter element line filter Pi 36063 DN DRG 40
High-quality wire mesh filter element from Filtration Group for surface filtration. Cleanable filter element as a suction and coarse filter in hydraulic filtration for highly viscous media and as a safety filter in cooling lubricant filtration
Filtration fineness: 40 µm
Nominal size: 630 l/min
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element Inline filter Pi 36063 DN DRG 40 / 77999154
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | Standard element |
| Seal material | NBR |
| Nominal size (l/min) | 630 |
| Height (mm) | 398.5 |
| Outer diameter (mm) | 100 |
| Inner diameter (mm) | 60.4 |
| Mounting diameter (mm) | 60.4 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 40 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 20 |
| Element type | Standard element |
| Filter material | Wire mesh |
| Nominal height (mm) | 398,5 |
| Medium | Hydraulic oil |
| Nominal size | 630 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

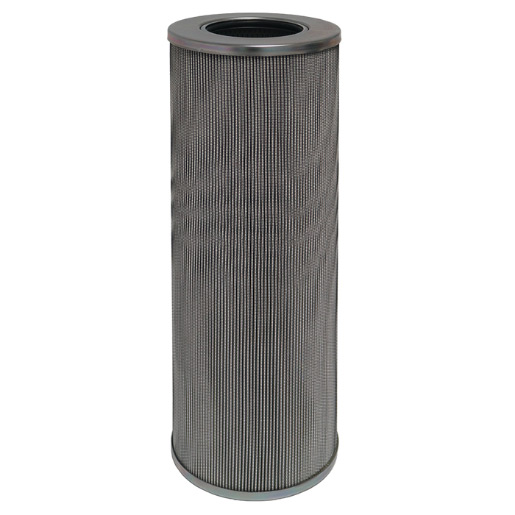

![[70583978] Filtration Group EcoParts Filter element for Filtration Group (ex. MAHLE) Filter PI 36063 DN DRG 40](/web/image/product.template/235177/image_128/%5B70583978%5D%20Filtration%20Group%20EcoParts%20Filter%20element%20for%20Filtration%20Group%20%28ex.%20MAHLE%29%20Filter%20PI%2036063%20DN%20DRG%2040?unique=fbdd0ac)
|
Manufacturer type designation: N 0630 DN 3 040 Filtration fineness: 40 µm Filter material: Wire mesh |
397.84 € | |
