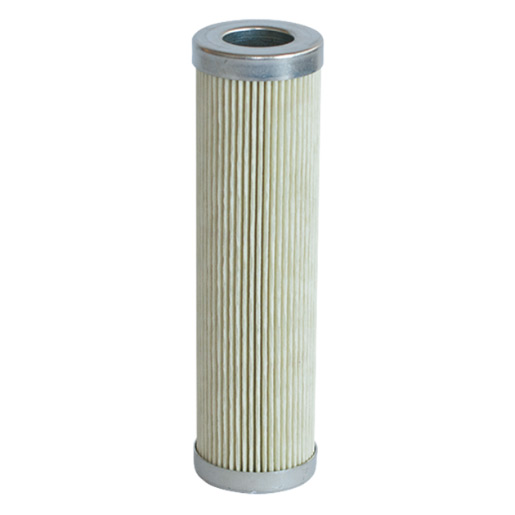

Filtration Group filter element 852 939 Mic25
Filter element for Pi 533
Nominal size 35 l/min
max. differential pressure 5 bar
Filter material cellulose
Filter fineness 25 µm
Filter surface area 87 cm²
Filtration Group
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Filter element 852 939 MIC 25 / 78206781
| Filter element | 852 Series |
| Seal material | Felt (polyester) |
| Nominal size (l/min) | 35 |
| Height (mm) | 156.4 |
| Outer diameter (mm) | 42 |
| Inner diameter (mm) | 15.5 |
| Mounting diameter (mm) | 15.5 |
| Filter material | Cellulose |
| Filter fineness (micrometres) | 25 |
| End disc material | Non-woven end cap |
| Filter housing type | Pi 53003 |
| Element type | 852 Series |
| Filter material | Zellulose |
| Nominal height (mm) | 156,5 |
| Medium | Hydraulic oil |
