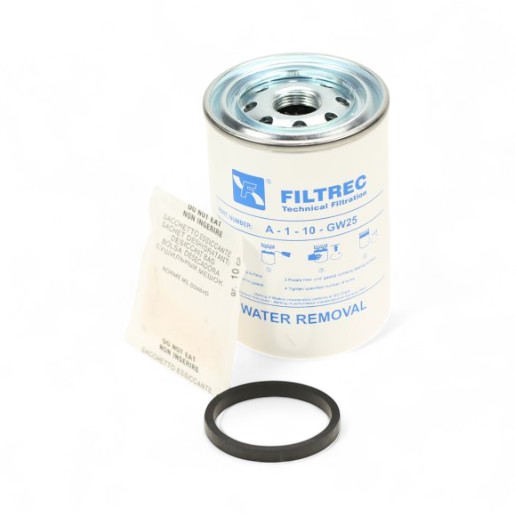

FILTREC spin-on filter SpinOn A110GW25
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC line filter A110GW25 - glass fiber, 27µm
The FILTREC filter element for line filter A110GW25 with glass fiber filter medium, 27µm filter fineness, NBR seal and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 12 |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 96 |
| Height (mm) | 148 |
| Connection thread | 3/4"-14 BSP |
| Filter material | Glass fiber + water-absorbing |
| Filter fineness c (micrometer) | ß27=1000 |
| Seal material | NBR |
| A | 96 mm |
| B | 3/4"-14 BSP |
| C | 148 mm |
