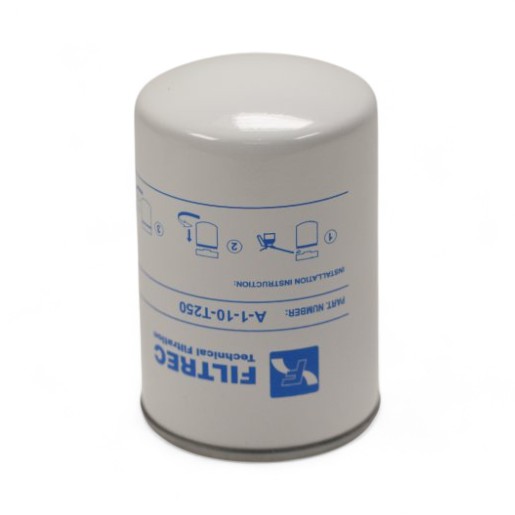

FILTREC spin-on filter SpinOn A110T250
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC in-line filter A110T250 - stainless steel wire mesh, 250µm
The FILTREC filter element for line filter A110T250 with stainless steel wire mesh filter medium, 250 µm filter fineness, NBR seal and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 12 |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 96 |
| Height (mm) | 148 |
| Connection thread | 3/4"-14 BSP |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 250 |
| Seal material | NBR |
| A | 96 mm |
| B | 3/4"-14 BSP |
| C | 148 mm |
