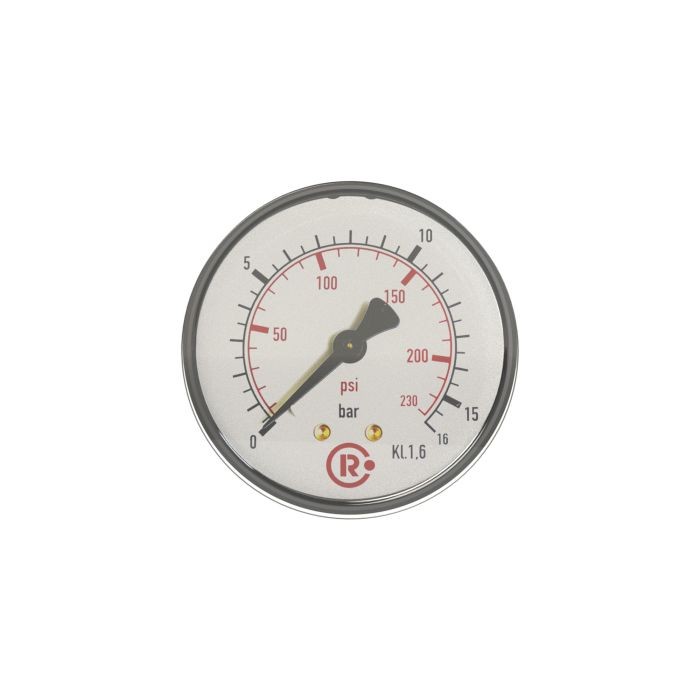

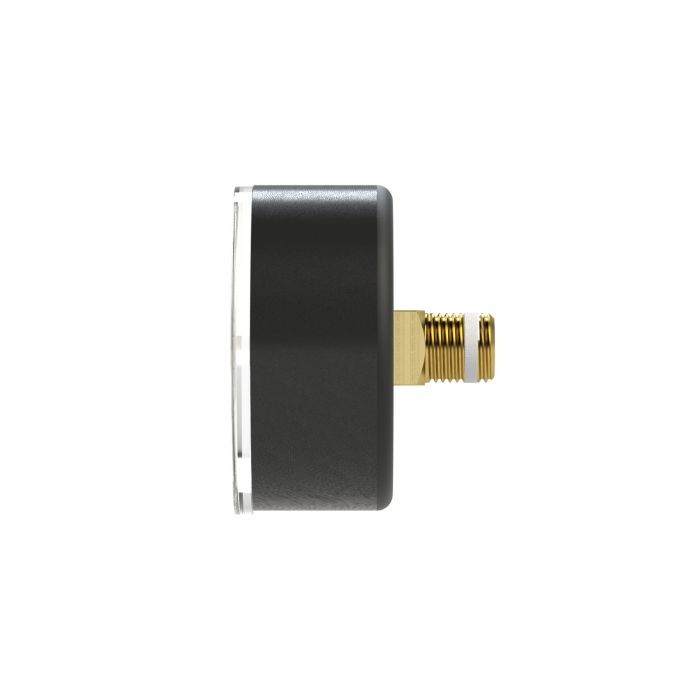

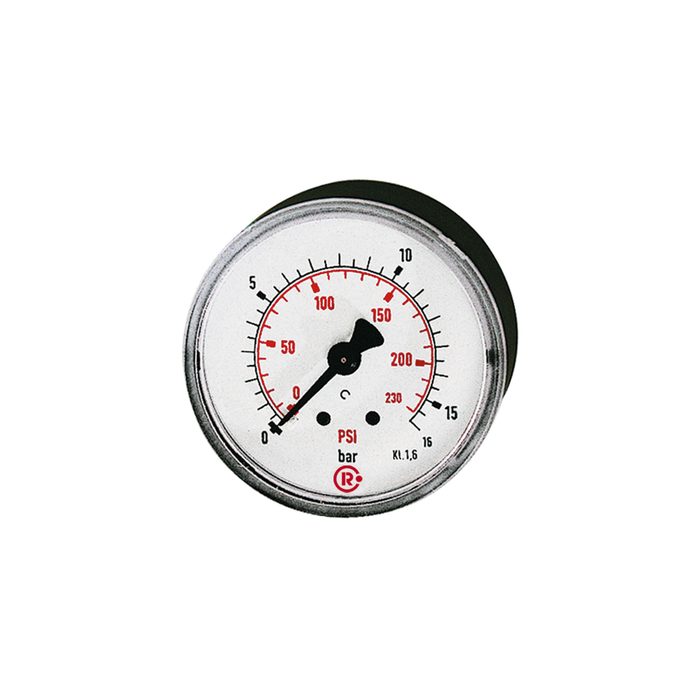

RIEGLER Standardmano, Kunststoff, G 1/8 hinten, 0 - 6,0 bar/87 psi, Ø 40
Typennummer: 110.45-KD
RIEGLER & Co. KG in Bad Urach ist ein angesehenes Unternehmen, das für seine innovativen Ansätze, erstklassige Produktqualität und engagierte Kundenbetreuung geschätzt wird. Seit mehr als 80 Jahren hat sich dieses Familienunternehmen zu einem führenden Anbieter von Komponenten für Druckluft- und Pneumatik sowie individuellen Systemlösungen entwickelt.
Standard pressure gauge, Double scale, Connection, rear, centr., G 1/8, Goods class 1.6, Measurement range 0 - 6 bar/87 psi, Ø 40
| Gehäuse | Kunststoff |
| Mediumstemperatur min. | -20 °C |
| Mediumstemperatur max. | 60 °C |
| Umgebungstemperatur min. | -20 °C |
| Umgebungstemperatur max. | 60 °C |
| Typ | 111.12 |
| Messglied | Kupferlegierung |
| Zeigerwerk | Kupferlegierung |
| Sichtscheibe | Kunststoff glasklar |
| Messbereich min. bar | 0 |
| Messbereich max. bar | 6 |
| Messbereich min. psi | 0 |
| Durchmesser | 40 mm |
| Skalenteilungswert im bar-Bereich | 0.2 bar |
| Beschreibung | Manometer Ø 40 mm, G 1/8 AG, 0 - 6 bar/87 psi |
| REACH SVHC1 Stoff Name | Blei |
| CAS-Nr. SVHC 1 | 7439-92-1 |
| Anschluss | G 1/8 |
| RoHS Werkstoff-Hinweis | RoHS konform |
| RoHS Richtlinie | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Messbereich max. psi | 87 |
| RoHS Artikel der Richtlinie | Artikel 4, Absatz 1, Anhang 3 |
| Anteil SVHC Stoff in % bei RoHS | 0.04 |
| Ausnahme | 6c |
| REACH Info | enthält SVHC Stoff |
| Anteil SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Anteil SVHC Stoff in SCIP | >= 0,1 % in w/w |
| Materialkennung | CW614N |
| Güteklasse | 45444 |
| Anschlusslage | hinten, zentrisch |
| Klassenname | PLUS |
| Material Prozessanschluss | Kupferlegierung |
Varianten / Alternativen
| Produkt | Einzelpreis | ||
|---|---|---|---|
![[101244] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 10,0 bar/145 psi, Ø63](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2010%2C0%20bar-145%20psi%2C%20%C3%9863?unique=2733aaa)
|
Typennummer: 217-KD |
6,30 € | |
![[101398] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 16,0 bar/230 psi, Ø63](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2016%2C0%20bar-230%20psi%2C%20%C3%9863?unique=ae20dc8)
|
Typennummer: 218-KD |
6,30 € | |
![[101462] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 25,0 bar/360 psi, Ø63](/web/image/product.template/169436/image_128/%5B101462%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2025%2C0%20bar-360%20psi%2C%20%C3%9863?unique=cdc5abf)
|
Typennummer: 219-KD |
6,30 € | |
![[101222] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 2,5 bar/36 psi, Ø 63](/web/image/product.template/140658/image_128/%5B101222%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%202%2C5%20bar-36%20psi%2C%20%C3%98%2063?unique=c8fda57)
|
Typennummer: 214-KD |
6,30 € | |
![[101223] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 4,0 bar/58 psi, Ø 63](/web/image/product.template/140659/image_128/%5B101223%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%204%2C0%20bar-58%20psi%2C%20%C3%98%2063?unique=66c8faf)
|
Typennummer: 215-KD |
6,30 € | |
![[101224] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 6,0 bar/87 psi, Ø 63](/web/image/product.template/140660/image_128/%5B101224%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%206%2C0%20bar-87%20psi%2C%20%C3%98%2063?unique=9aee9e2)
|
Typennummer: 216-KD |
6,30 € | |
![[116896] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 10,0 bar/145 psi, Ø40](/web/image/product.template/274705/image_128/%5B116896%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2010%2C0%20bar-145%20psi%2C%20%C3%9840?unique=3a4dbf5)
|
Typennummer: 110.03-KD |
5,82 € | |
![[101677] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 10,0 bar/145 psi, Ø50](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2010%2C0%20bar-145%20psi%2C%20%C3%9850?unique=c9ab48e)
|
Typennummer: 206-KD |
6,30 € | |
![[116901] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 16,0 bar/230 psi, Ø40](/web/image/product.template/274706/image_128/%5B116901%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2016%2C0%20bar-230%20psi%2C%20%C3%9840?unique=9168f54)
|
Typennummer: 110.04-KD |
5,82 € | |
![[101678] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 16,0 bar/230 psi, Ø50](/web/image/product.template/169650/image_128/%5B101678%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2016%2C0%20bar-230%20psi%2C%20%C3%9850?unique=c74a5f4)
|
Typennummer: 207-KD |
6,30 € | |
![[142533] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 1,6 bar/23 psi, Ø 50](/web/image/product.template/277781/image_128/%5B142533%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%201%2C6%20bar-23%20psi%2C%20%C3%98%2050?unique=890a6f9)
|
Typennummer: 202-KD |
6,30 € | |

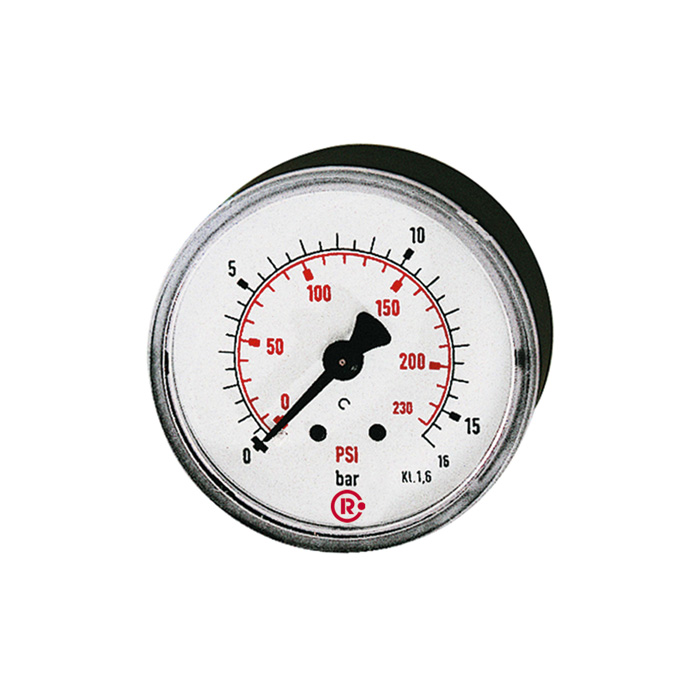

![[149044] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 1,6 bar/23 psi, Ø 63](/web/image/product.template/276000/image_128/%5B149044%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%201%2C6%20bar-23%20psi%2C%20%C3%98%2063?unique=38c5f96)
|
Typennummer: 213-KD |
22,96 € | |
![[149047] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 25,0 bar/360 psi, Ø40](/web/image/product.template/276001/image_128/%5B149047%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2025%2C0%20bar-360%20psi%2C%20%C3%9840?unique=0877902)
|
Typennummer: 110.05-KD |
5,82 € | |
![[101679] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 25,0 bar/360 psi, Ø50](/web/image/product.template/169651/image_128/%5B101679%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%2025%2C0%20bar-360%20psi%2C%20%C3%9850?unique=cc2897c)
|
Typennummer: 208-KD |
6,30 € | |
![[101674] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 2,5 bar/36 psi, Ø 50](/web/image/product.template/169646/image_128/%5B101674%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%202%2C5%20bar-36%20psi%2C%20%C3%98%2050?unique=71f91c8)
|
Typennummer: 203-KD |
6,30 € | |

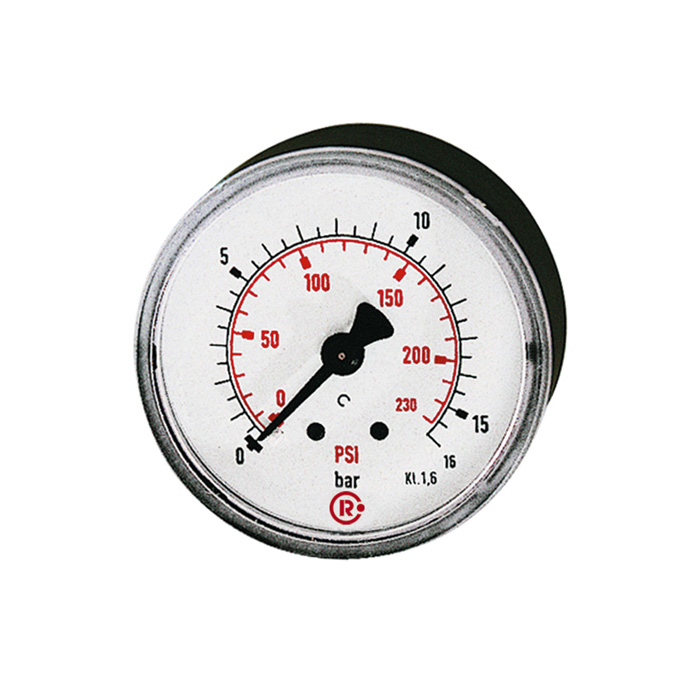

![[116892] RIEGLER Standardmano, Kunststoff, G 1/4 hinten, 0 - 4,0 bar/58 psi, Ø 40](/web/image/product.template/274703/image_128/%5B116892%5D%20RIEGLER%20Standardmano%2C%20Kunststoff%2C%20G%201-4%20hinten%2C%200%20-%204%2C0%20bar-58%20psi%2C%20%C3%98%2040?unique=e9a256a)
|
