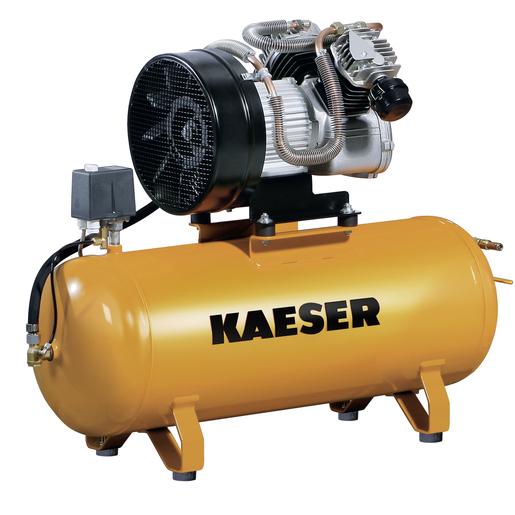

KAESER compressed air system model EPC 340-100 with condensate drain KAESER DRAIN

Stationary workshop compressor - 195 l/min at 6 bar, 10 bar, 90 l horizontal tank

The KAESER EPC 340-100 is a stationary single-stage piston compressor from the EUROCOMP series, in a horizontal design with 90-liter compressed air tank. This compressed air compressor with its 1-cylinder compressor block delivers 195 l/min effective volume flow at 6 bar and 1.7 kW rated power at a maximum overpressure of 10 bar. The system is supplied complete with the KAESER DRAIN electronic condensate drain, which reliably removes any moisture from the system.

Application areas

The EPC 340-100 in a recumbent design proves its worth as a stationary workshop compressor in vehicle workshops, locksmiths, joineries and production facilities. Whether changing tires, grinding, drilling or painting - this air compressor with 10 bar operating pressure and 195 l/min at 6 bar is sufficient for all common compressed air tools. The 400 V three-phase connection ensures stable continuous operation in the workshop.

KAESER quality made in Germany

Like all KAESER EUROCOMP piston compressors, the EPC 340-100 is manufactured at the Coburg plant. Corrosion-free stainless steel valves with heat-dissipating stroke limitation, cross-ground cylinders and high-performance fluid as standard ensure a long service life with low maintenance costs - the oil only needs to be changed after approx. 1,000 operating hours.
