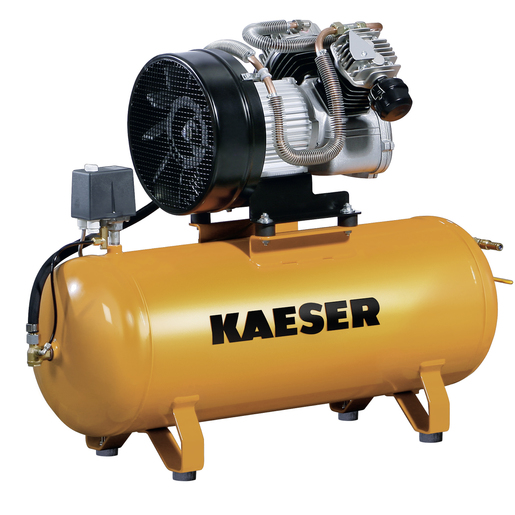

KAESER Compressed air system model EPC 440-100 with KAESER DRAIN
Volume flow at 6 bar: 280 l/min | Maximum overpressure: 10 bar | Pressure tank: 90 liters | Electrical connection: 400 V / 3 Ph / 50 Hz
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
1.5753.7Category :
Oil-Lubricated Workshop CompressorsWeight :
88.00 kgDelivery area :
Germany| Volume flow at 6 bar (l/min) | 280 |
| Volume flow at 8 bar (l/min) | 260 |
| Max. Overpressure (bar) | 10 |
| Volume of compressed air tank (litres) | 90 |
| Motor speed (1/min) | 1360 |
| Rated power drive motor (kW) | 2,4 |
| Electrical supply | 400 V / 3 Ph / 50 Hz |
| Number of cylinders | 2 |
| Compressed air connection | G 1/2 |
| Emission sound pressure level (dB(A)) | 72 |
| Width (mm) | 1130 |
| Height (mm) | 860 |
| Depth (mm) | 500 |
| Shaft power compressor block (kW) | 2,4 |
| Design | stationary |
| Sound insulation bonnet design | No |
| Steam trap | KAESER-DRAIN |
