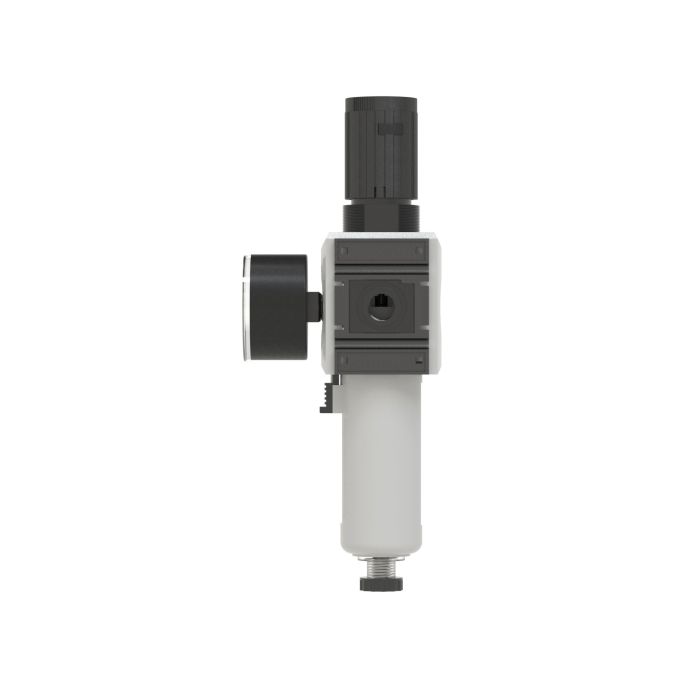

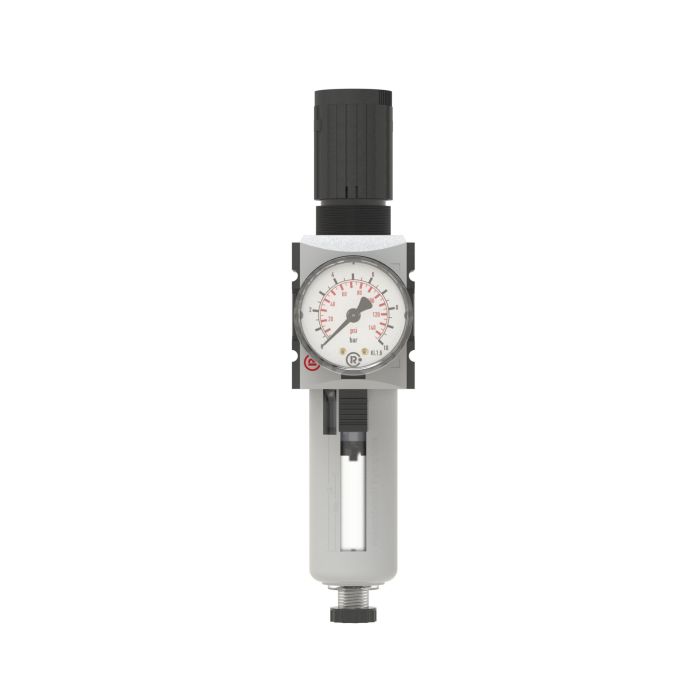

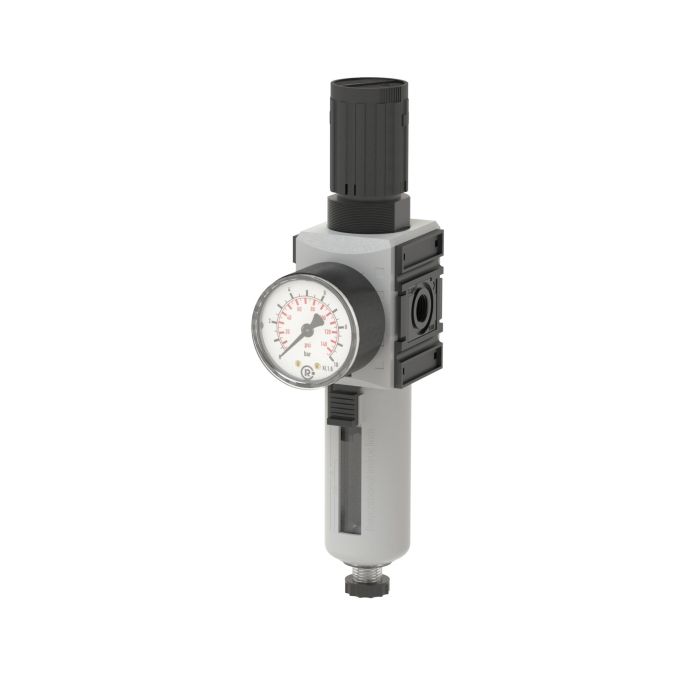

Riegler Filter regulator »FUTURA«, PC, Size 4, G 3/4, 0.5-8 bar, Semi a.
Type number: FU 6110
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Filter regulator "FUTURA" with PC container, protective cage and mano., 5 µm, BG 4, G 3/4, PE 1.5 - 16 bar, control range 0.5-8 bar, drain HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Polycarbonate container with protective cage |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 3/4 |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | semi-automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 4 |

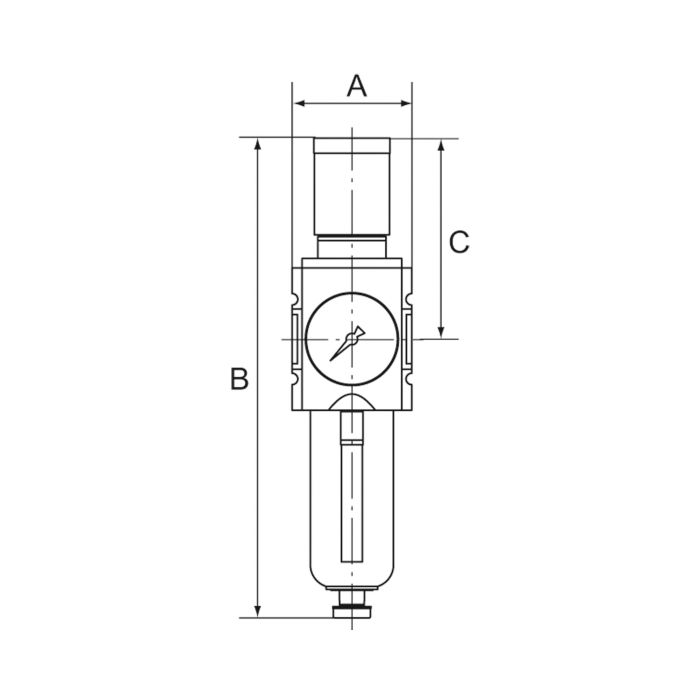

| A | 85 mm |
| B | 326 mm |
| C | 137 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Intrinsic air consumption | Yes |
| Class name | MAX |
| Stand Material Compliance | 45159 |
| Flow 1 | 13000 l/min |
| SCIP message number Supplier | 8f918c10-d1d6-468f-8e98-f010e03d561b |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101244] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/140679/image_128/%5B101244%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=85e04b0)
|
Type number: 217-KD |
6.25 € | |
![[100144] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123337/image_128/%5B100144%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=d8745c6)
|
Type number: 6141.6.905 |
24.75 € | |

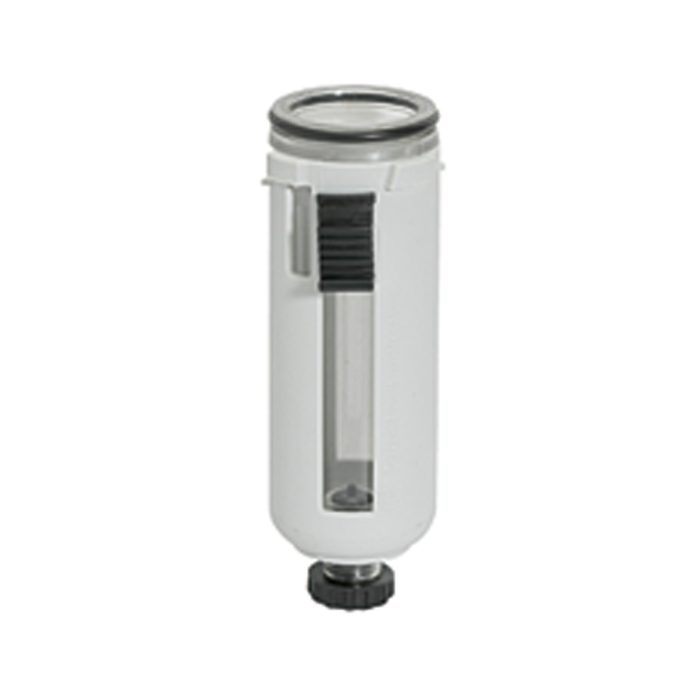

![[100140] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 4, Ablass: HA](/web/image/product.template/123204/image_128/%5B100140%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%204%2C%20Ablass:%20HA?unique=425a029)
|
Type number: BSF 34 |
12.05 € | |
![[100051] Riegler Wear part set for »FUTURA«, size 4, G 3/4 and G 1](/web/image/product.template/118213/image_128/%5B100051%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%204%2C%20G%203-4%20and%20G%201?unique=00dbe81)
|
Type number: 22.71110.4 |
19.88 € | |
